Overview

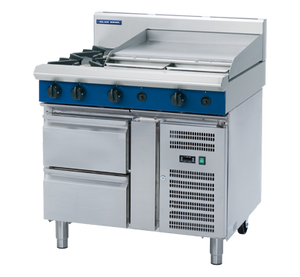

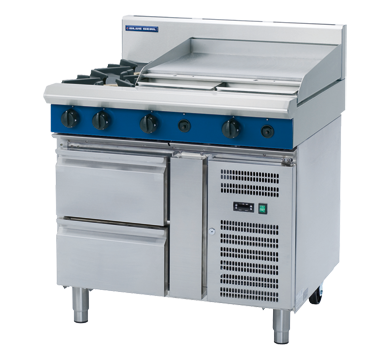

Blue Seal G516B-RB Evolution Series 900mm Gas Cooktop with Refrigerated Base

The Blue Seal G516B-RB Evolution Series combines a 900mm gas cooktop with an integrated refrigerated base, giving commercial kitchen teams a compact, high-output cooking and cold storage solution in a single 900mm footprint. The cooktop features two 28MJ/hr open burners and a 600mm smooth mild steel griddle powered by two 20MJ/hr burners, delivering a combined gas rating of 96MJ/hr (26.6kW), while the refrigerated base holds ingredients between -2°C and +8°C directly beneath the cooking surface.

Manufactured in New Zealand from 304 stainless steel, the G516B-RB is engineered for the demands of busy commercial kitchens. The griddle is positioned on the right-hand side as standard, flame failure protection is fitted to all burners, and the refrigerated base includes a digital electronic thermostat, automatic defrost, and automatic evaporation of defrost water. The unit is available in natural gas or LPG configurations and connects via a 3/4 inch BSP male fitting.

Key Benefits

• Saves valuable floor space by integrating high-output gas cooking with chilled ingredient storage in a single 900mm unit, streamlining kitchen workflow.
• A combined gas output of 96MJ/hr (26.6kW) across four burners supports rapid, high-volume cooking across both open burners and the griddle simultaneously.
• Chilled ingredient storage at -2°C to +8°C directly beneath the cooking surface reduces travel time and keeps prep ingredients at safe temperatures throughout service.
• Flame failure protection on all burners automatically shuts off the gas supply if a flame is extinguished, reducing safety risk during busy service periods.
• Push-button piezo ignition on the griddle allows fast, reliable startup without the need for a separate ignition source.
• Adjustable feet and two additional rollers make it straightforward to level the unit on uneven floors and reposition it during cleaning or kitchen reconfiguration.
• Removable cast iron burners and vitreous enamel pot stands simplify cleaning and are built to withstand repeated heavy use.
• Automatic defrost and automatic evaporation of defrost water in the refrigerated base reduce manual maintenance tasks and minimise water management during service.
• Available in both natural gas and LPG, making it suitable for a wide range of commercial kitchen installations.

Key Features

• Two 28MJ/hr open burners for high-output, versatile cooking
• 600mm smooth mild steel griddle powered by two 20MJ/hr griddle burners
• Griddle positioned on the right-hand side as standard
• Total gas rating: 96MJ/hr (26.6kW)
• Flame failure protection fitted to all burners
• Push-button piezo ignition on the griddle
• Removable heavy-duty cast iron burners
• Vitreous enamel pot stands for easy cleaning and durability
• Heavy-duty reinforced control knobs designed for sustained commercial use
• 304 stainless steel construction throughout
• 165mm splashback included; overall height with splashback 1085mm, without splashback 915mm
• Griddle plate thickness: 20mm
• Cooking surface area: 595 x 530mm
• Gas connection: 3/4 inch BSP male fitting
• Available in natural gas or LPG
• Refrigerated base with digital electronic thermostat control
• Temperature range: -2°C to +8°C
• Ventilated refrigeration system using R134a refrigerant, tropical rated
• Automatic defrost function
• Automatic evaporation of defrost water
• Refrigerated base features two drawers
• Refrigerated base powered via 3-pin 10A plug cordset
• Adjustable feet for levelling on uneven surfaces
• Two additional rollers for ease of movement and repositioning
• Freestanding installation type
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 245
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Refrigerated Base
• Door Type: Drawer
• Splash Back: Yes (165mm)
• No. of Doors: 2
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Ventilated | R134a
• Cooling Type: Ventilated | Tropical Rated
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Display Type: Digital Electronic
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 595 x 530
• Number of Burners: 2
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
