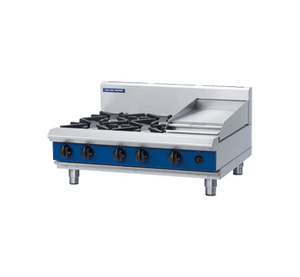

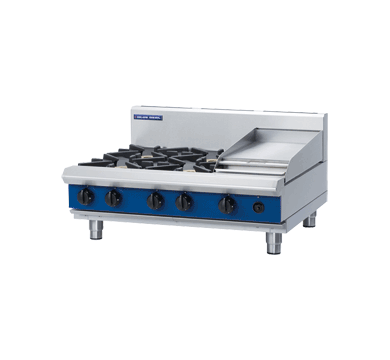

Blue Seal G516C-B Evolution Series 900mm Gas Cooktop with Griddle - Bench Model

The Blue Seal G516C-B Evolution Series is a 900mm bench model gas cooktop combining four high-output open burners with a 300mm right-hand griddle, purpose-built for demanding commercial kitchens in restaurants, cafés, hotels, and pubs. Constructed from heavy-duty 304 stainless steel and featuring removable cast iron burners with forged brass caps, this unit delivers 132 MJ/hr total gas rating across its cooking surfaces, giving chefs the power and versatility to handle high-volume service with confidence.

Engineered in New Zealand as part of the modular Blue Seal Evolution Series, the G516C-B integrates seamlessly into complete commercial kitchen suites or sits independently on a workbench or refrigerated chef base. Flame failure protection on every burner, push-button piezo ignition on the griddle, heavy-duty vitreous enamel pot stands with extended finger supports, and a 165mm rear splashback combine to make this cooktop as safe and practical as it is powerful.

Key Benefits

• Four 28 MJ/hr open burners deliver rapid, responsive heat for boiling, sautéing, simmering, and stockpot cooking at pace during peak service.
• A 20 MJ/hr griddle burner with push-button piezo ignition expands cooking versatility, handling grilling and flat-top work alongside open-flame cooking on the same unit.
• Flame failure protection on all burners automatically cuts gas if a flame extinguishes, reducing safety risk in busy kitchen environments.
• Extended finger supports on the vitreous enamel pot stands stabilise smaller pans and reduce the risk of tip-overs when sliding cookware across the surface.
• Cast iron burners with a non-clogging design and forged brass caps promote consistent flame spread and long-term burner performance with minimal maintenance.
• Adjustable stainless steel feet and two rear rollers make levelling straightforward and allow the unit to be repositioned on the floor with ease.
• Heavy-duty reinforced control knobs with clear, non-fade markings and strengthened shaft sleeves allow precise heat adjustment and resist the wear of daily commercial use.
• Removable cast iron burners and accessible components simplify routine cleaning, servicing, and part replacement, reducing kitchen downtime.
• Modular Evolution Series design allows the cooktop to be paired with ovens, griddles, or other suite components to build a fully integrated commercial cooking line.

Key Features

• 4 x 28 MJ/hr heavy-duty cast iron open burners with forged brass caps and non-clogging design
• 1 x 20 MJ/hr griddle burner with 20mm smooth mild steel griddle plate positioned on the right-hand side as standard
• Total gas rating: 132 MJ/hr (36.6 kW)
• Push-button piezo ignition on the griddle burner
• Flame failure protection on all burners
• Vitreous enamel cast iron pot stands with extended finger supports for improved pan stability
• Removable heavy-duty cast iron burners for easy cleaning and servicing
• Heavy-duty reinforced control knobs with clear, non-fade markings and strengthened shaft sleeves
• 304 stainless steel construction throughout
• 165mm rear splashback included
• Four stainless steel bench legs with adjustable feet and two rear rollers
• Bench model configuration suitable for installation on workbenches, refrigerated chef bases, or modular cooking suites
• Cooking surface area: 295 x 530mm
• Griddle plate thickness: 20mm smooth mild steel
• Available in Natural Gas or LPG
• R 3/4 (BSP) male gas connection
• Fully modular, compatible with the complete Blue Seal Evolution Series cooking suite
• Designed and manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 129
• Packed Width (mm): 945.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.546730000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 295 x 530
• Number of Burners: 4
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
