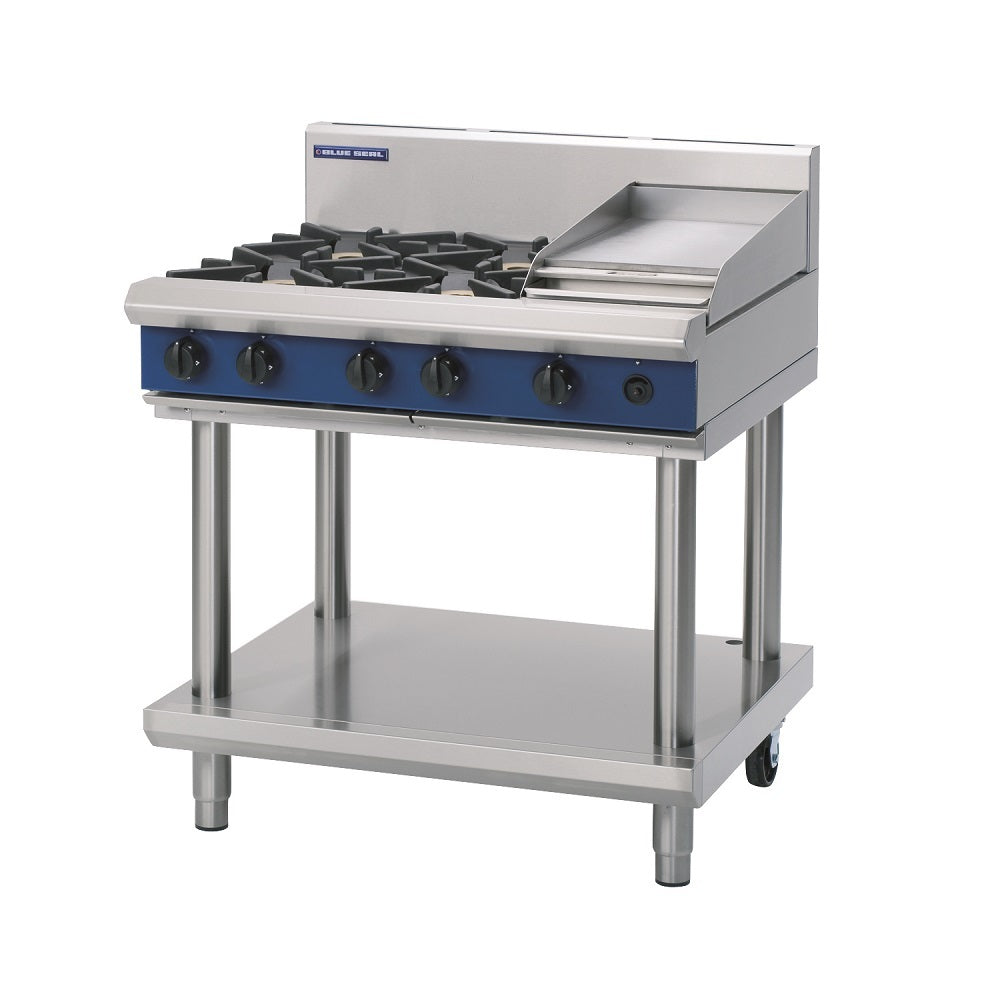

Blue Seal G516C-LS Evolution Series 900mm Gas Cooktop with 300mm Griddle on Leg Stand

The Blue Seal G516C-LS is a heavy-duty 900mm gas cooktop from the Evolution Series, combining four high-output open burners with a 300mm smooth mild steel griddle, all mounted on a freestanding leg stand. Manufactured in New Zealand from 304 stainless steel, it is engineered to handle the demands of busy commercial kitchens, delivering a total combined gas rating of 132 MJ/hr (36.6 kW) across all cooking zones.

Designed with both performance and practicality in mind, the G516C-LS features flame failure protection on every burner, push-button piezo ignition on the griddle, and removable cast iron burners with vitreous enamel pot stands for straightforward cleaning and servicing. Adjustable feet and two additional rollers allow flexible positioning on the kitchen floor, while the 165mm splashback and suite-matching undershelf support integration into a modular Evolution Series kitchen configuration. Available in Natural Gas or LPG.

Key Benefits

• Four 28 MJ/hr open burners deliver a total of 112 MJ/hr of cooking power, enabling rapid boiling and high-heat frying to keep up with peak service demands.
• The integrated 300mm smooth mild steel griddle with its dedicated 20 MJ/hr burner expands cooking versatility, handling eggs, proteins and vegetables simultaneously alongside the open burners.
• Flame failure protection on all burners automatically cuts the gas supply if a flame is extinguished, reducing safety risks during unattended or high-volume cooking.
• Push-button piezo ignition on the griddle allows fast, tool-free startup without the need for a separate lighter, saving time during busy service.
• Removable cast iron burners and vitreous enamel pot stands simplify daily cleaning and resist the wear of continuous commercial use.
• Extended pot support fingers on the vitreous enamel trivets provide added stability for smaller pans and pots, reducing the risk of tip-overs during fast-paced cooking.
• Adjustable feet combined with two additional rollers make it easy to level the unit on uneven surfaces and reposition it for cleaning or reconfiguration.
• Heavy-duty reinforced control knobs with clear, non-fade markings allow precise heat adjustment from high to low simmer, withstanding the rigours of daily chef use.
• Suite-matching undershelf and 165mm splashback allow seamless integration into a modular Blue Seal Evolution Series kitchen lineup.

Key Features

• 4 x 28 MJ/hr removable heavy-duty cast iron open burners with forged brass caps for consistent flame spread and a non-clogging design.
• 1 x 20 MJ/hr griddle burner dedicated to the 300mm smooth mild steel griddle plate (20mm thick), positioned on the right-hand side as standard.
• Total combined gas rating: 132 MJ/hr (36.6 kW).
• Flame failure protection fitted to all burners for automatic gas shut-off if the flame is extinguished.
• Push-button piezo ignition on the griddle for quick, reliable startup.
• Vitreous enamel pot stands with extended finger supports for improved small-pan stability.
• Heavy-duty reinforced control knobs with strengthened shaft sleeves and clear, non-fade markings.
• 165mm stainless steel splashback included.
• Suite-matching undershelf (1 shelf) included.
• Adjustable feet plus 2 additional rollers for levelling and mobility.
• Freestanding leg stand mount with an overall installed height of 1085mm (including splashback).
• Constructed from 304 stainless steel throughout.
• 20mm thick smooth mild steel griddle cooking surface (295 x 530mm cooking area).
• Compatible with Natural Gas or LPG; gas connection via R 3/4 (BSP) male fitting.
• Designed for easy cleaning, installation, and on-site servicing.
• Manufactured in New Zealand.
• Freestanding, freestanding installation type; no external power supply required.

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 174
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 295 x 530
• Number of Burners: 4
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
