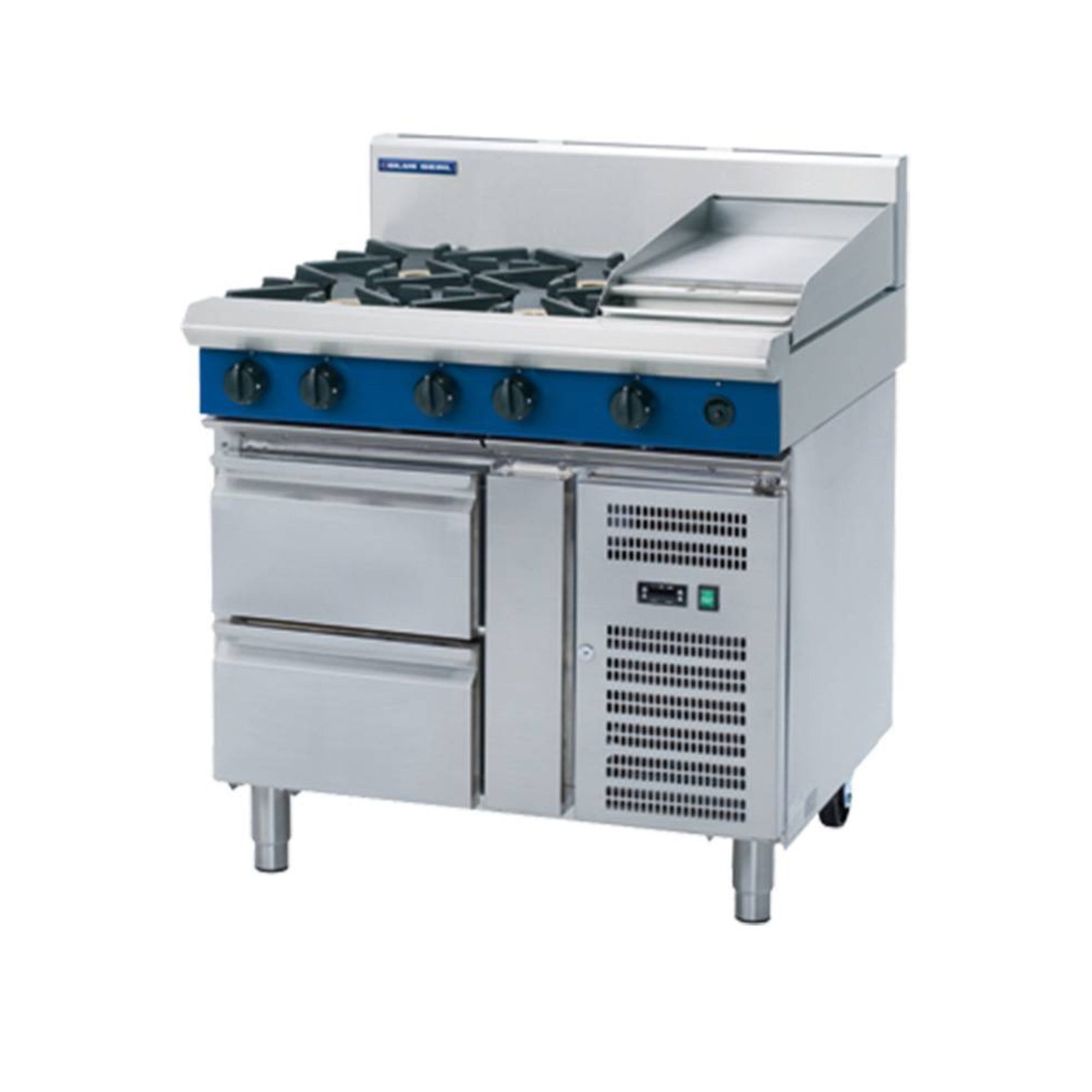

Blue Seal G516C-RB Evolution Series 900mm Gas Cooktop with Refrigerated Base

The Blue Seal G516C-RB Evolution Series combines a high-output 900mm gas cooktop with an integrated refrigerated base, delivering a complete cook-and-store solution in a single 900mm-wide unit. The cooktop features four 28MJ/hr open burners plus a 300mm right-hand griddle powered by a dedicated 20MJ/hr burner, giving a total gas rating of 132MJ/hr (36.6kW), while the ventilated refrigerated base maintains temperatures between -2°C and +8°C with digital electronic thermostat control and automatic defrost.

Manufactured in New Zealand from 304 stainless steel, the G516C-RB is engineered for the demands of busy commercial kitchens. Flame failure protection on every burner, push-button piezo ignition on the griddle, removable cast iron burners, vitreous enamel pot stands, and heavy-duty reinforced control knobs make the unit as safe and practical to operate as it is straightforward to clean and service. Adjustable feet and two additional rollers allow easy repositioning on the kitchen floor.

Key Benefits

• Integrated refrigerated base keeps ingredients chilled directly beneath the cooking surface, reducing unnecessary movement and speeding up service.
• Total gas output of 132MJ/hr across five burners delivers serious cooking capacity suited to high-volume commercial service periods.
• Flame failure protection on all burners automatically shuts off gas if a flame is extinguished, protecting staff and complying with commercial kitchen safety requirements.
• Automatic defrost and automatic evaporation of defrost water in the refrigerated base minimises maintenance tasks and downtime.
• Ventilated, tropical-rated refrigeration with a digital electronic thermostat provides consistent, reliable cold holding from -2°C to +8°C regardless of ambient kitchen temperatures.
• Removable cast iron burners and vitreous enamel pot stands simplify cleaning and can be swapped out quickly if required during service.
• Adjustable feet and two additional rollers allow the unit to sit level on uneven floors and be repositioned easily for cleaning or reconfiguration.
• Available in both natural gas and LPG configurations, giving flexibility across different site installations.

Key Features

• Four 28MJ/hr open burners plus one 20MJ/hr griddle burner; total gas rating 132MJ/hr (36.6kW)
• 300mm smooth mild steel griddle positioned on the right-hand side as standard
• Griddle fitted with push-button piezo ignition for reliable, tool-free startup
• Flame failure protection on all burners for automatic gas shut-off if flame is lost
• Removable heavy-duty cast iron burners for durability and excellent heat retention
• Vitreous enamel pot stands for easy cleaning and long-term resistance to heat and impact
• Heavy-duty reinforced control knobs rated for continuous commercial use
• 165mm splashback included; overall height with splashback 1085mm, cooktop height 915mm
• 304 stainless steel construction throughout for corrosion resistance and hygiene
• Refrigerated base with ventilated cooling, R134a refrigerant, tropical-rated for commercial kitchen environments
• Temperature range -2°C to +8°C, controlled via digital electronic thermostat
• Automatic defrost with automatic evaporation of defrost water
• Refrigerated base features two drawer doors
• 3-pin 10A plug cordset fitted for refrigerated base power supply
• Adjustable feet plus two additional rollers for levelling and mobility
• Freestanding installation; 900mm wide footprint suits standard suite configuration
• Available in natural gas or LPG; R 3/4 BSP male gas connection
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 245
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Refrigerated Base
• Door Type: Drawer
• Splash Back: Yes (165mm)
• No. of Doors: 2
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Ventilated | R134a
• Cooling Type: Ventilated | Tropical Rated
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Display Type: Digital Electronic
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 295 x 530
• Number of Burners: 4
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
