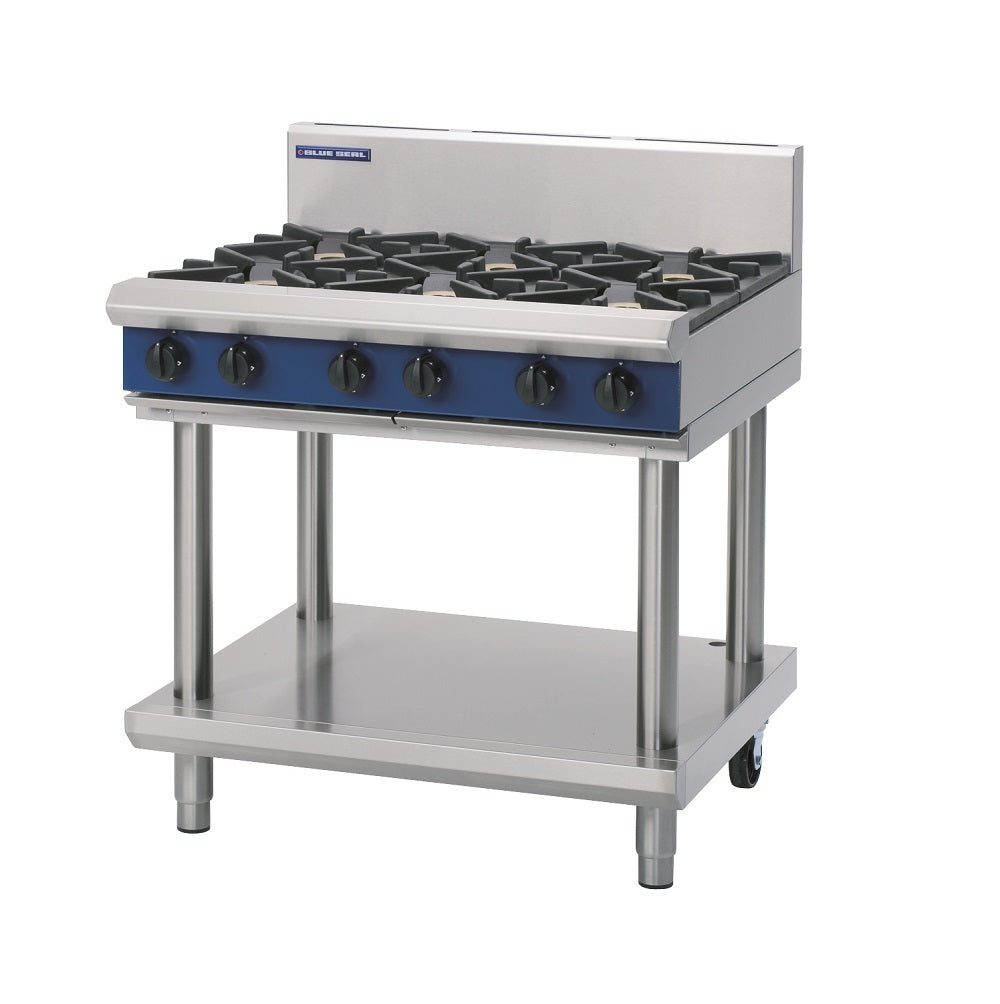

Blue Seal G516D-LS Evolution Series 900mm Gas Cooktop on Leg Stand

The Blue Seal G516D-LS is a 900mm six-burner gas cooktop mounted on a leg stand, purpose-built for high-demand commercial kitchen environments. Manufactured in New Zealand from 304 stainless steel, it is offered in either natural gas or LPG configuration and delivers a combined output of 168MJ/hr across its six open burners, each rated at 28MJ/hr, giving professional chefs the sustained high-heat performance required to run multiple cooking tasks through a full service.

Engineered for durability and everyday practicality, the G516D-LS pairs removable heavy-duty cast iron burners with thicker vitreous enamel pot stands whose extended finger supports allow smaller pots and pans to be slid safely across the surface without risk of tipping. Flame failure protection on every burner automatically shuts off the gas supply if a flame is extinguished, while heavy-duty reinforced control knobs and adjustable feet with two additional rollers make the unit straightforward to position, clean, and service in any busy kitchen.

Key Benefits

• Six high-output 28MJ/hr open burners deliver a total of 168MJ/hr, enabling rapid heat-up and the ability to run multiple cooking tasks simultaneously.
• Flame failure protection on all burners automatically cuts the gas supply if a flame goes out, reducing the risk of gas build-up in a busy kitchen.
• Extended-finger vitreous enamel pot stands allow smaller pans to be slid across the cooktop surface without tipping, improving workflow and safety.
• Removable cast iron burners and detachable vitreous enamel pot stands simplify day-to-day cleaning and ongoing maintenance, reducing kitchen downtime.
• Heavy-duty reinforced control knobs withstand continuous commercial use and allow precise heat adjustment from high heat down to a gentle simmer.
• Adjustable feet combined with two additional rollers make it easy to level the unit on uneven floors and reposition it when the kitchen layout changes.
• Compatibility with both natural gas and LPG means the cooktop can be matched to existing gas infrastructure without modification.
• 304 stainless steel construction throughout provides excellent corrosion resistance and meets the hygiene standards expected in commercial catering.

Key Features

• Six 28MJ/hr open burners with a combined total output of 168MJ/hr.
• Flame failure protection fitted to every burner, automatically stopping gas flow if the flame is extinguished.
• Removable heavy-duty cast iron burners for straightforward cleaning and replacement.
• Burners feature a brass cap with a forged construction that promotes even flame distribution across the cooking zone, alongside a non-clogging design for reliable performance.
• Thicker heavy-duty vitreous enamel pot stands with extended finger supports to stabilise smaller cookware and allow easy sliding across the surface.
• Heavy-duty reinforced control knobs with markings that resist fading over time and reinforced shaft sleeves engineered for long-term durability.
• Adjustable feet and two additional rollers for levelling and mobility.
• Constructed from 304 stainless steel with a heavy-duty stainless steel finish.
• Freestanding leg stand configuration with a 165mm splashback.
• Suite-matching undershelf included.
• Compatible with griddle plates in five width options spanning 300mm through to 1200mm (300, 450, 600, 900 and 1200mm), available in either a smooth or ribbed machine-finished mild steel surface.
• Available in natural gas or LPG; gas connection is R 3/4 (BSP) male.
• Freestanding installation with manual knob variable power control.
• Manufactured in New Zealand.

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 174
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 6
• Cooking Surface Area (mm): 900 x 480
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
