Overview

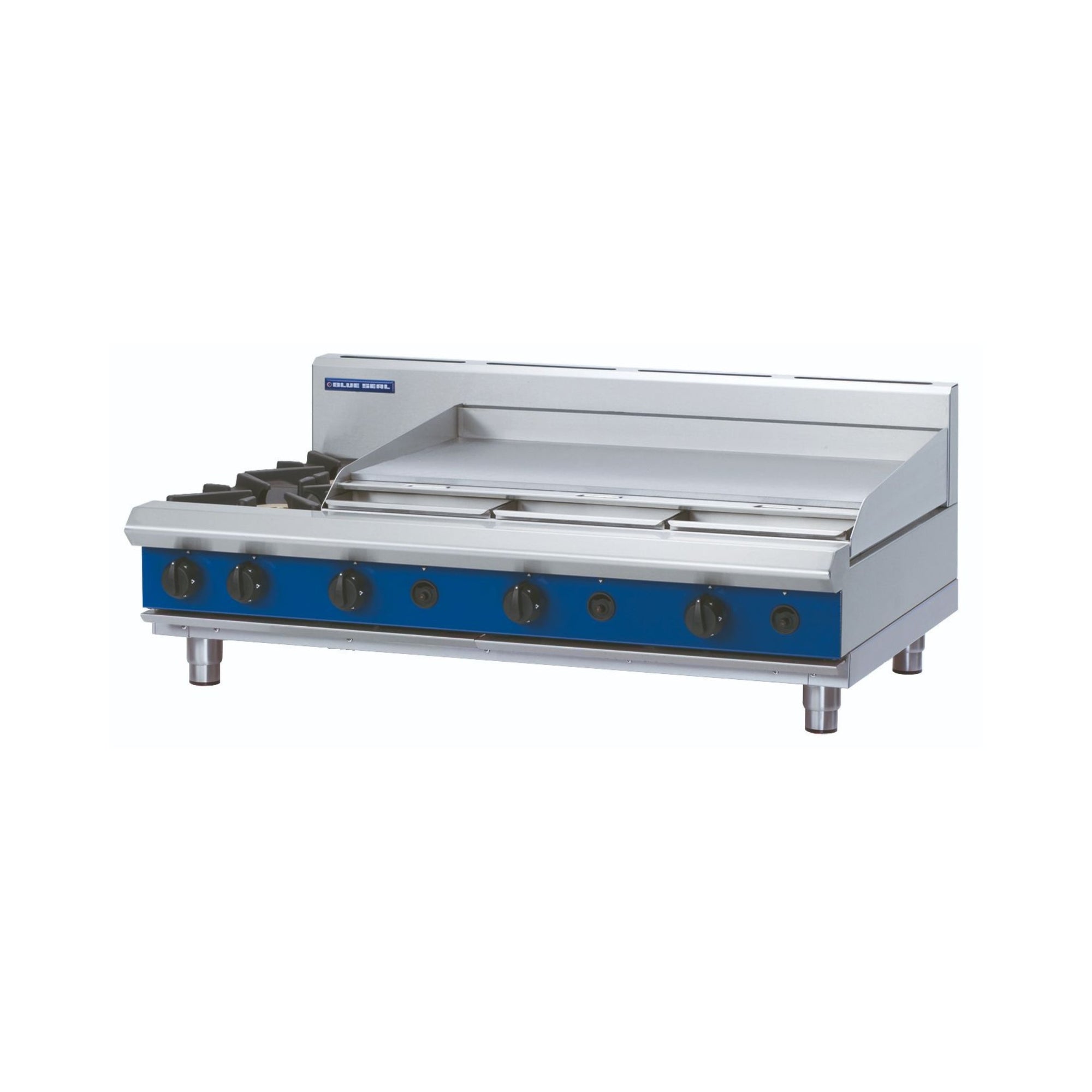

Blue Seal G518A-B Evolution Series 1200mm Gas Cooktop Bench Model

The Blue Seal G518A-B Evolution Series is a 1200mm commercial gas cooktop bench model combining two open burners with a 900mm smooth mild steel griddle plate, delivering a total gas rating of 116 MJ/hr (32.2 kW). Constructed from heavy-duty 304 stainless steel and built in New Zealand, it is engineered for continuous heavy use in restaurants, cafés, hotels, catering operations, and other demanding hospitality environments.

The bench model configuration allows flexible placement on commercial workbenches, refrigerated chef bases, or within modular Blue Seal Evolution Series cooking suites, making it an efficient use of kitchen footprint. Flame failure protection on all burners, push-button piezo ignition on the griddle, and removable cast iron burners combine to support safe, straightforward daily operation and servicing.

Key Benefits

• Dual cooking zones in a single unit allow simultaneous open-burner and flat-top griddle cooking, reducing the need for separate appliances and maximising kitchen productivity.
• Flame failure protection on every burner automatically cuts gas flow if a flame extinguishes, enhancing safety during busy service periods.
• Push-button piezo ignition on the griddle section enables fast, reliable ignition without the need for a separate lighter.
• Variable high-to-low controls on the open burners provide precise heat adjustment for boiling, simmering, sautéing, and stockpot work.
• The 900mm smooth mild steel griddle surface is well suited to burgers, bacon, eggs, steaks, seafood, and breakfast menus, offering even heat distribution across a large cooking area.
• Removable cast iron burners, vitreous enamel pot stands, and a grease collection system simplify cleaning and help maintain kitchen hygiene standards.
• Four adjustable stainless steel bench legs with a height range of 80–105mm allow the unit to be levelled on uneven floors and integrated neatly into modular cooking suites.
• Compatible with both natural gas and LPG, offering installation flexibility across different site gas supplies.

Key Features

• 2 x 28 MJ/hr open gas burners with variable high-to-low flame control
• 900mm smooth mild steel griddle plate with 3 x 20 MJ/hr dedicated griddle burners
• Total gas rating: 116 MJ/hr (32.2 kW)
• Griddle plate thickness: 20mm (supplier spec); 12mm thick mild steel also noted by one source -- supplier figure preferred
• Flame failure protection fitted to all burners
• Push-button piezo ignition on griddle section
• Removable heavy-duty cast iron burners with vitreous enamel pot stands
• Heavy-duty reinforced control knobs for durability under continuous use
• Four 63mm diameter, 1.2mm thick 304 stainless steel bench legs with adjustable feet (height range 80–105mm)
• 165mm rear splashback included
• Overall height including splashback: 485mm; body height (excluding splashback): 315mm
• Cooking surface area: 892 x 530mm
• 304 stainless steel construction throughout
• Bench model -- no undershelf; designed for placement on worktops, chef bases, or modular suites
• Gas connection: R 3/4 (BSP) male
• Available in natural gas or LPG -- gas type must be specified at time of order
• Part of the modular Blue Seal Evolution Series for integration into complete commercial kitchen suites
• Country of origin: New Zealand
• 12-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 216
• Packed Width (mm): 1245.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.720295000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 892 x 530
• Number of Burners: 2
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
