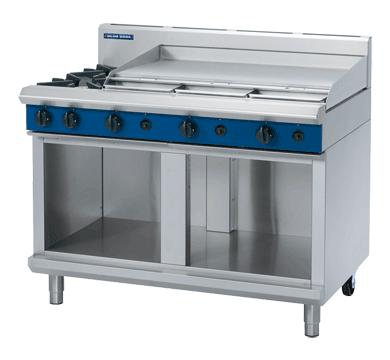

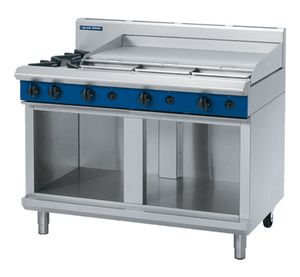

Blue Seal G518A-CB Evolution Series 1200mm Gas Cooktop with Cabinet Base

The Blue Seal G518A-CB is a 1200mm wide Evolution Series gas cooktop combining two 28MJ/hr open burners with a 900mm griddle section powered by three 20MJ/hr burners, all mounted on a solid cabinet base. Manufactured in New Zealand from 304 stainless steel, it is built to withstand the rigours of high-volume commercial kitchen operation and is available in both natural gas and LPG configurations.

The unit features a 20mm thick smooth mild steel griddle plate, push-button piezo ignition on the griddle, and flame failure protection across all burners for safe, reliable service. Heavy-duty cast iron burners with forged brass caps, vitreous enamel pot stands with extended finger supports, and reinforced control knobs with non-fade markings ensure consistent performance and straightforward maintenance. Adjustable feet and two additional rollers allow the unit to be levelled precisely or repositioned with ease, while fully modular construction supports a matched suite finish.

Key Benefits

• Two 28MJ/hr open burners deliver intense, responsive heat to handle large-volume cooking tasks quickly and efficiently.
• Three 20MJ/hr griddle burners provide even, high-output heat across the 900mm griddle surface, supporting simultaneous high-throughput cooking.
• Flame failure protection on every burner automatically cuts gas supply if a flame extinguishes, protecting staff and reducing safety risks.
• Push-button piezo ignition on the griddle enables fast, reliable startup without the need for a separate ignition source.
• Extended vitreous enamel pot stand fingers stabilise smaller cookware and prevent tip-overs during busy service.
• Reinforced control knobs with non-fade markings allow precise heat adjustment from high to simmer and resist the wear of constant daily use.
• Adjustable feet combined with two rollers make levelling straightforward and allow the unit to be repositioned on the floor with minimal effort.
• Fully modular design allows the G518A-CB to be paired with other Evolution Series units for a cohesive, matched suite layout.
• Removable cast iron burners, double-skin stainless steel cabinet interior, and a splashback simplify daily cleaning and routine servicing.

Key Features

• Configuration: two open burners plus 900mm griddle section, mounted on a cabinet base
• 2 x 28MJ/hr open burners with variable high-to-low heat control
• 3 x 20MJ/hr griddle burners with push-button piezo ignition
• Total gas rating: 116MJ/hr (32.2kW)
• 20mm thick smooth mild steel griddle plate
• Cooking surface area: 892mm x 530mm
• Flame failure protection on all burners
• Removable heavy-duty cast iron burners with forged brass caps for consistent flame spread and a non-clogging design
• Vitreous enamel pot stands with extended finger supports for added small-pan stability
• Heavy-duty reinforced control knobs with non-fade markings and strengthened shaft sleeves
• Cabinet base with double-skin 0.9mm 304 stainless steel interior and exterior construction
• Single hinged door on cabinet base
• 165mm splashback included
• Adjustable feet for precise levelling plus two additional rollers for floor mobility
• Fully modular design for matched Evolution Series suite installation
• Freestanding, 304 stainless steel construction throughout
• Gas connection: R 3/4 (BSP) male
• Compatible with natural gas or LPG (specify at time of order)
• Country of manufacture: New Zealand

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 528.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 278
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 892 x 530
• Number of Burners: 2
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
