Overview

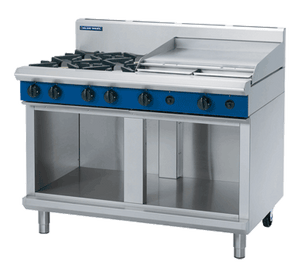

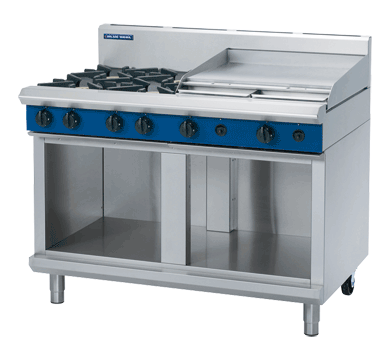

Blue Seal G518B-CB Evolution Series 1200mm Gas Cooktop – Cabinet Base

The Blue Seal G518B-CB Evolution Series combines four high-output open burners with a 600mm smooth mild steel griddle, all mounted on a sturdy cabinet base, delivering a total gas rating of 152 MJ/hr (42.2 kW) for demanding commercial kitchen environments. Manufactured in New Zealand from 304 stainless steel, it is available in both natural gas and LPG configurations and is designed to integrate seamlessly into a fully modular suite.

Built for reliability and ease of daily operation, the G518B-CB features flame failure protection on every burner, push-button piezo ignition on the griddle, and removable cast iron burners with vitreous enamel pot stands for straightforward cleaning and maintenance. The cabinet base is constructed with a double-skin 304 stainless steel interior and exterior, providing a professional finish that withstands the rigours of continuous commercial use.

Key Benefits

• Four 28 MJ/hr open burners deliver intense, responsive heat so large-volume cooking tasks are completed faster during peak service.
• Two 20 MJ/hr griddle burners supply powerful, even heat across the 600mm smooth mild steel griddle surface, ideal for high-throughput breakfast and grill service.
• Flame failure protection on all burners automatically cuts gas flow if a flame is extinguished, reducing safety risks in a busy kitchen.
• Push-button piezo ignition on the griddle enables fast, reliable startup without the need for a separate lighter or match.
• Extended finger supports on the vitreous enamel pot stands allow smaller pans to be slid across the cooking surface without tipping, improving workflow efficiency.
• Adjustable feet combined with two additional rollers make it simple to level the unit on uneven floors and to move it for cleaning or servicing.
• Fully modular design allows the G518B-CB to be positioned alongside other Evolution Series equipment for a matched, professional suite appearance.
• Removable cast iron burners and a double-skin stainless steel cabinet interior simplify daily cleaning and routine service, reducing downtime.
• Robust, non-fade control knobs with strengthened shaft sleeves provide precise heat adjustment from high to low simmer and resist wear over years of heavy use.

Key Features

• Four open burners rated at 28 MJ/hr each, with variable high-to-low heat control
• Burners feature cast iron construction with a forged brass cap for consistent flame spread and a non-clogging design for optimum performance
• 600mm smooth mild steel griddle plate positioned on the right-hand side (RH) as standard
• Griddle plate thickness: 20mm
• Two griddle burners rated at 20 MJ/hr each
• Total gas rating: 152 MJ/hr (42.2 kW)
• Flame failure protection on all burners
• Push-button piezo ignition on the griddle section
• Removable heavy-duty cast iron burners for easy cleaning and maintenance
• Vitreous enamel pot stands with extended finger supports for added small-pan stability
• Heavy-duty reinforced control knobs with clear, non-fade markings and strengthened shaft sleeves
• Cabinet base constructed with double-skin 0.9mm 304 stainless steel interior and exterior
• Single hinged door on the cabinet base
• 165mm splashback included
• Four stainless steel bench legs with adjustable feet for levelling
• Two additional rollers for ease of mobility and repositioning
• Body and surfaces finished in 304 stainless steel
• Freestanding, fully modular design for matched suite configuration
• Compatible with natural gas or LPG – gas type must be specified at time of ordering
• Gas connection: R 3/4 (BSP) male
• Manufactured in New Zealand
• Easy to clean, install, and service

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 528.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 278
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 595 x 530
• Number of Burners: 4
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
