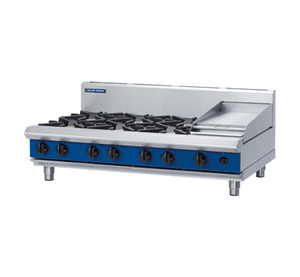

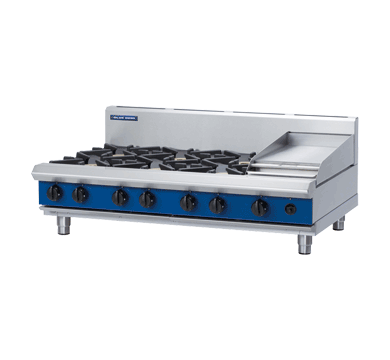

Blue Seal G518C-B Evolution Series 1200mm Gas Cooktop with Griddle - Bench Model

The Blue Seal G518C-B Evolution Series is a 1200mm bench-model gas cooktop combining six high-output open burners with a 300mm smooth mild steel griddle plate, purpose-built for demanding commercial kitchen environments. Manufactured in New Zealand from 304 stainless steel, it is available in both Natural Gas and LPG configurations and is fully modular to suit a matched suite of Evolution Series equipment.

Designed with ease of operation and maintenance in mind, the G518C-B features flame failure protection across all burners, push-button piezo ignition on the griddle, and removable cast iron burner components for straightforward cleaning and servicing. Four adjustable stainless steel bench legs provide stable, level installation on varied floor surfaces, making this cooktop a practical and reliable centrepiece for high-volume cooking operations.

Key Benefits

• Six 28MJ/hr open burners deliver rapid, responsive heat for simultaneous cooking across multiple pans, maximising throughput during busy service periods.
• The integrated 300mm smooth mild steel griddle with its own 20MJ/hr burner expands cooking versatility without requiring a separate appliance.
• Flame failure protection on every burner automatically shuts off the gas supply if a flame is extinguished, reducing safety risk for kitchen staff.
• Push-button piezo ignition on the griddle allows fast, tool-free start-up, saving time during pre-service preparation.
• Removable heavy-duty cast iron burners and vitreous enamel pot stands simplify daily cleaning and reduce downtime between services.
• Fully modular construction allows the G518C-B to be paired with other Evolution Series units for a cohesive, matched suite layout.
• Adjustable bench leg height (80mm to 105mm) accommodates minor floor level variations and allows precise counter height alignment.
• Dual gas compatibility with Natural Gas and LPG means the unit can be specified to suit the existing gas supply of any commercial kitchen.

Key Features

• 6 x 28MJ/hr high-output open burners with variable high-to-low controls
• 1 x 20MJ/hr griddle burner with 300mm smooth mild steel griddle plate, positioned on the right-hand side as standard
• 20mm thick smooth mild steel griddle plate (supplier spec); competitor notes 12mm mild steel plate - supplier value preferred
• Flame failure protection fitted to all burners for automatic gas shut-off on flame loss
• Push-button piezo ignition on the griddle burner for quick, reliable start-up
• Removable heavy-duty cast iron burners for durability, heat retention and easy maintenance
• Vitreous enamel-coated pot stands for corrosion resistance and straightforward cleaning
• Heavy-duty reinforced control knobs rated for high-frequency commercial use
• Four 63mm diameter heavy-duty 304 stainless steel bench legs (1.2mm wall thickness) with adjustable feet
• Adjustable leg height range of 80mm to 105mm for level installation on uneven floors
• Total gas rating of 188 MJ/hr (52.2 kW)
• 165mm splashback included as standard
• 304 stainless steel construction throughout for corrosion resistance and longevity
• R 3/4 BSP male gas connection
• Available in Natural Gas or LPG - specify gas type at time of ordering
• Fully modular design compatible with matched Evolution Series suite configuration
• Freestanding bench model - no undershelf
• Designed for easy cleaning, installation and field servicing
• Country of origin: New Zealand

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 216
• Packed Width (mm): 1245.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.720295000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 295 x 530
• Number of Burners: 6
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
