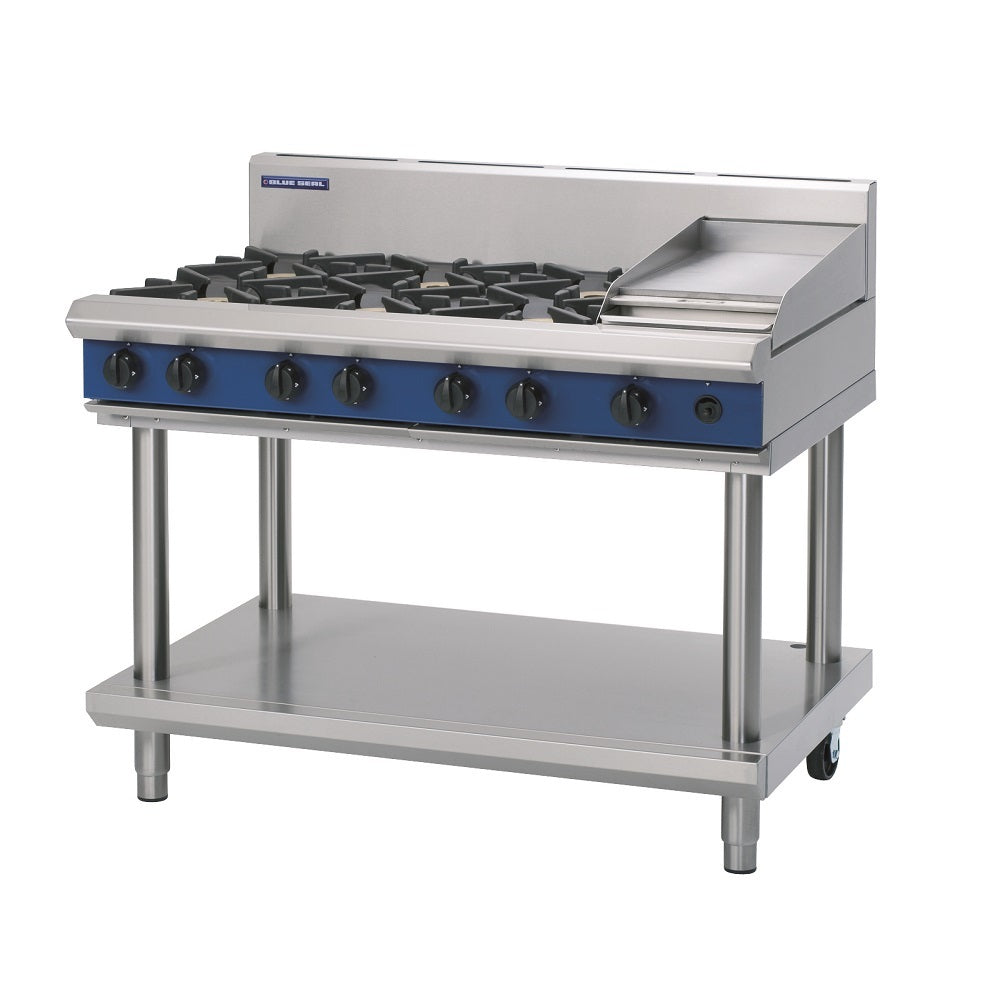

Blue Seal G518C-LS Evolution Series 1200mm Gas Cooktop with 300mm Griddle – Leg Stand

The Blue Seal G518C-LS Evolution Series combines six high-output open burners with a 300mm smooth mild steel griddle on a robust leg stand, delivering a total gas rating of 188 MJ/hr across the cooking surface. Manufactured in New Zealand from 304 stainless steel, this 1200mm unit is engineered for the demands of busy commercial kitchens, offering a fully modular design that integrates seamlessly into a matched Blue Seal suite.

Safety and ease of operation are built in from the ground up, with flame failure protection on every burner, push-button piezo ignition on the griddle, and heavy-duty reinforced control knobs featuring clear, non-fade markings. The leg stand includes adjustable feet and two additional rollers for flexible placement and straightforward repositioning, while a framed top allows direct connection to adjacent cooktop units.

Key Benefits

• Six 28 MJ/hr open burners provide exceptional heat output for rapid cooking and handling high-volume service with ease.
• Flame failure protection on all burners automatically shuts off the gas supply if a flame is extinguished, reducing risk in a busy kitchen environment.
• Push-button piezo ignition on the griddle allows fast, reliable lighting without the need for a separate ignition source.
• Removable cast iron burners with forged brass caps and a non-clogging design ensure consistent flame spread and straightforward cleaning or replacement.
• Vitreous enamel pot stands with extended finger supports let cooks slide smaller pans across the surface confidently without risk of tip-over.
• Adjustable feet and two included rollers make it easy to level the unit on uneven floors and reposition it during kitchen reconfigurations.
• Fully modular construction with a framed top enables direct connection to other Evolution Series units, creating a cohesive and efficient cooking suite.
• Compatible with Natural Gas or LPG, giving operators flexibility to suit existing kitchen gas infrastructure.
• 20 mm thick smooth mild steel griddle positioned on the right-hand side as standard provides an even, versatile cooking surface for proteins, vegetables and more.

Key Features

• Six open burners each rated at 28 MJ/hr, with variable high-to-low heat control for precise temperature adjustment.
• One 20 MJ/hr griddle burner with push-button piezo ignition for fast, convenient startup.
• Total gas rating of 188 MJ/hr (52.2 kW) across all burners.
• 300mm smooth mild steel griddle plate positioned on the right-hand side as standard; griddle thickness 20 mm.
• Flame failure protection fitted to all burners for continuous safety monitoring.
• Removable heavy-duty cast iron burners with forged brass caps for consistent, even flame distribution and long service life.
• Vitreous enamel pot stands with extended finger supports providing added stability for smaller cookware.
• Heavy-duty reinforced control knobs with clear, non-fade markings and strengthened shaft sleeves for durability under constant use.
• 304 stainless steel construction throughout for corrosion resistance and a professional finish.
• Leg stand with four stainless steel bench legs, adjustable feet and two additional rollers for stable positioning and easy mobility.
• 165 mm splashback included; overall height including splashback is 1085 mm.
• Matching undershelf included for additional storage within the suite.
• Framed top design allows direct connection to adjacent Evolution Series cooktop modules.
• Fully modular for a matched suite finish alongside other Blue Seal Evolution Series equipment.
• Designed for easy cleaning, installation and servicing to minimise downtime.
• Available in Natural Gas or LPG configuration; gas connection via R 3/4 (BSP) male fitting.
• Freestanding installation type; no external power supply required.
• Country of origin: New Zealand.

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 528.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 216
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 295 x 530
• Number of Burners: 6
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
