Overview

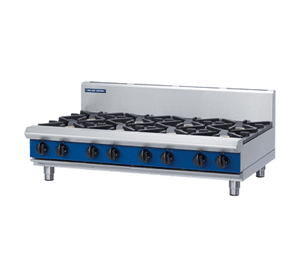

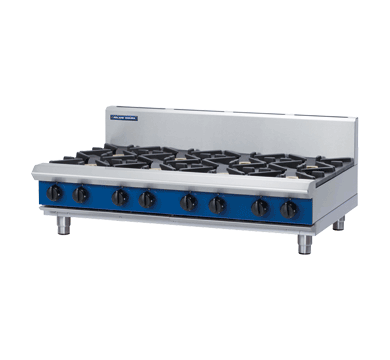

Blue Seal G518D-B Evolution Series 1200mm Gas Cooktop - Bench Model

The Blue Seal G518D-B is a 1200mm eight-burner gas cooktop bench model from the Evolution Series, built in New Zealand from 304 stainless steel for demanding commercial kitchen environments. Each of the eight open burners delivers 28MJ/hr, providing a combined output of 224MJ and giving chefs precise control across the full heat spectrum, from rapid boiling and searing through to gentle simmering. The bench model configuration suits installation on commercial workbenches, refrigerated chef bases, or as part of a modular Blue Seal Evolution Series cooking suite.

Heavy-duty cast iron burners with forged brass caps promote consistent, even flame spread without clogging, while thicker vitreous enamel pot stands with extended finger supports keep smaller pots and pans stable during service. Flame failure protection on every burner adds an essential safety layer for continuous high-volume operation. Reinforced, heat-resistant control knobs with clear non-fade markings allow subtle and accurate heat adjustment, and the unit's easy-access components, removable spill trays, and adjustable stainless steel feet with two rear rollers simplify both daily cleaning and repositioning.

Key Benefits

• Eight 28MJ/hr open burners deliver a total output of 224MJ, enabling rapid heat-up and high-throughput cooking across multiple pots simultaneously.
• Forged brass burner caps produce a consistent, even flame spread for reliable cooking results whether boiling stocks, sautéing, or simmering sauces.
• Extended finger supports on the vitreous enamel pot stands stabilise smaller pans and pots, reducing the risk of tip-overs during busy service.
• Flame failure protection on all burners automatically cuts the gas supply if a flame is extinguished, improving safety in a crowded kitchen.
• Reinforced control knobs with strengthened shaft sleeves and non-fade markings give precise heat adjustment and resist the wear of daily commercial use.
• Removable cast iron burners, vitreous enamel pot stands, and spill trays make cleaning straightforward, supporting kitchen hygiene and reducing downtime between services.
• Adjustable stainless steel legs and two rear rollers allow easy levelling on uneven floors and convenient repositioning without lifting the unit.
• Bench model design integrates seamlessly into modular Blue Seal Evolution Series suites or onto existing chef bases, maximising kitchen layout flexibility.
• Available in both natural gas and LPG configurations to suit a wide range of venue gas supplies.

Key Features

• Eight open gas burners, each rated at 28MJ/hr, for a total combined output of 224MJ/hr.
• Cast iron burners with forged brass caps for consistent, non-clogging flame spread.
• Vitreous enamel cast iron pot stands (trivets) with extended finger supports for enhanced small pan stability.
• Flame failure safety protection fitted to every burner.
• Heavy-duty reinforced, heat-resistant control knobs with clear non-fade markings and strengthened shaft sleeves.
• Removable stainless steel spill trays for straightforward cleaning and maintenance.
• Constructed from heavy-duty 304 stainless steel throughout.
• 165mm rear splashback included.
• Four stainless steel bench legs with adjustable feet for levelling on uneven surfaces.
• Two rear rollers to assist repositioning of the unit.
• Bench model configuration; no undershelf - suitable for placement on a workbench, chef base, or within a modular cooking suite.
• R 3/4 (BSP) male gas connection.
• Compatible with 300, 450, 600, 900, or 1200mm griddle plates (smooth or ribbed machine-finished mild steel) when a change of cooking surface is required.
• Available in natural gas or LPG - gas type must be specified at time of ordering.
• Manufactured in New Zealand.
• Freestanding installation type with manual knob controls.

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 216
• Packed Width (mm): 1245.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.720295000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 8
• Cooking Surface Area (mm): 1200 x 480
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
