Overview

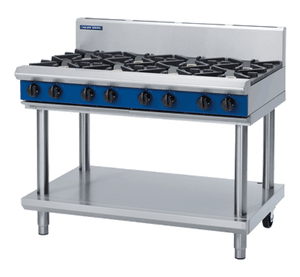

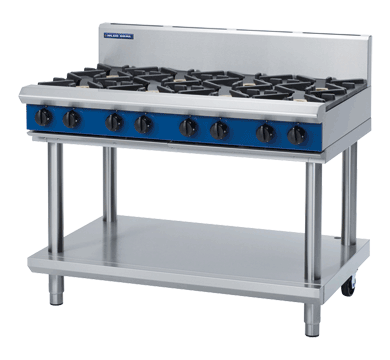

Blue Seal G518D-LS Evolution Series 1200mm Gas Cooktop on Leg Stand

The Blue Seal G518D-LS Evolution Series is a heavy-duty 1200mm commercial gas cooktop mounted on a leg stand, designed to meet the demands of high-volume professional kitchens. Featuring eight open burners each rated at 28MJ/hr for a total gas rating of 224MJ/hr, this unit delivers exceptional cooking power and flexibility across a wide range of kitchen tasks.

Constructed from 304 stainless steel and manufactured in New Zealand, the G518D-LS combines robust materials with thoughtful engineering for ease of use, cleaning, and servicing. Flame failure protection on every burner, vitreous enamel pot stands with extended finger supports, and reinforced control knobs make this cooktop a reliable centrepiece for any commercial kitchen suite. Available in both natural gas and LPG configurations.

Key Benefits

• Eight 28MJ/hr open burners deliver a combined 224MJ/hr of cooking power, supporting simultaneous high-heat cooking across multiple pots and pans.
• Flame failure protection on all burners provides an important safety safeguard, automatically cutting gas supply if a flame is extinguished.
• Thicker, heavy-duty vitreous enamel trivets with extended finger supports create a uniform cooking surface, allowing smaller cookware to be repositioned safely without risk of tipping.
• Removable cast iron burners and vitreous enamel pot stands simplify day-to-day cleaning and routine maintenance, reducing kitchen downtime.
• Adjustable feet combined with two additional rollers allow the unit to be levelled precisely on uneven floors and repositioned with minimal effort during cleaning or kitchen reconfiguration.
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use, maintaining accurate variable flame control over time.
• Fully modular design with a suite-matching undershelf and 165mm splashback allows seamless integration into a matched Evolution Series kitchen line-up.
• Freestanding leg stand configuration with four stainless steel bench legs provides stable, open-base support that is easy to clean underneath.

Key Features

• 8 x 28MJ/hr open burners, total gas rating 224MJ/hr (62.2kW)
• Flame failure protection on all burners as standard
• Removable heavy-duty cast iron burners for straightforward cleaning and replacement
• Vitreous enamel pot stands with extended finger supports for stable, uniform cooking surface
• Heavy-duty reinforced control knobs with variable manual flame control
• Adjustable feet and 2 additional rollers for easy levelling and repositioning
• Four stainless steel bench legs forming the leg stand base
• 1200 x 480mm cooking surface area
• 165mm stainless steel splashback included
• Suite-matching undershelf included (1 shelf)
• 304 stainless steel construction throughout
• Fully modular design for matched Evolution Series suite configuration
• Framed top for direct connection to adjacent cooktop modules
• Available in natural gas or LPG -- specify gas type at time of ordering
• R 3/4 (BSP) male gas connection
• Freestanding installation type
• Manufactured in New Zealand

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 528.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 216
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 8
• Cooking Surface Area (mm): 1200 x 480
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
