Overview

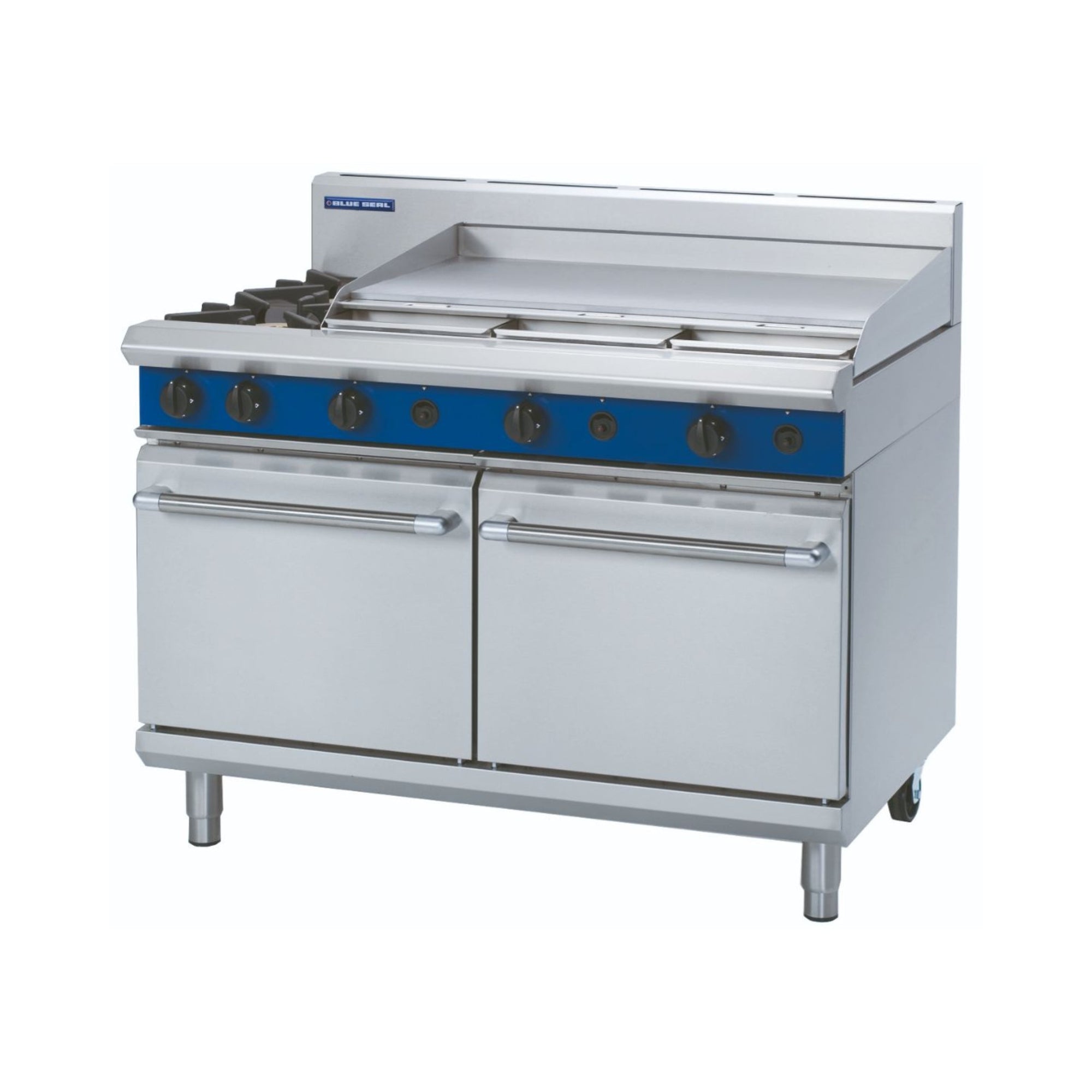

Blue Seal G528A Evolution Series 1200mm Gas Range Double Static Oven

The Blue Seal G528A Evolution Series is a 1200mm freestanding commercial gas range combining a two-burner open cooktop, a 900mm smooth mild steel griddle, and two full-size 1/1 GN static gas ovens in a single heavy-duty unit. Manufactured in New Zealand from 304 stainless steel, it is engineered for the demands of high-volume professional kitchens and is available in both natural gas and LPG configurations.

Every element of the G528A is built for reliability and ease of operation. Flame failure protection is fitted to all burners, vitreous enamel liners make oven cleaning straightforward, and adjustable feet combined with two additional rollers allow the unit to be positioned and moved without difficulty. The result is a versatile, high-output cooking platform suited to restaurants, hotels, catering operations, and institutional kitchens.

Key Benefits

• Three cooking zones in one footprint - open burners, griddle, and double static ovens - reduce the need for separate appliances and free up valuable kitchen space.
• Flame failure protection on every burner automatically cuts gas if a flame is extinguished, improving safety for kitchen staff during continuous service.
• Thermostatically controlled griddle and ovens with a 100-270°C range allow precise temperature management across a wide variety of cooking tasks.
• Two 1/1 GN static ovens operating simultaneously double baking and roasting capacity, enabling more dishes to be completed in parallel during peak service.
• Removable cast iron burners and vitreous enamel pot stands, liners, and surfaces simplify daily cleaning and reduce downtime between services.
• Adjustable feet and two integrated rollers make installation straightforward and allow repositioning without heavy lifting or dismantling.
• Heavy-duty reinforced control knobs and a fully welded drop-down oven door with a cool-touch stainless steel handle withstand the rigours of constant commercial use.
• 304 stainless steel construction throughout resists corrosion, meets commercial hygiene standards, and retains its appearance under daily kitchen conditions.

Key Features

• Two-burner cooktop with 900mm griddle positioned above a gas range double static oven configuration
• 2 x 28MJ/hr open burners for high-output cooktop cooking
• 3 x 20MJ/hr griddle burners providing even heat across the 900mm griddle surface
• Griddle plate: 12mm smooth mild steel (ribbed or chrome options available), cooking surface area 892 x 530mm
• 2 x 1/1 GN gas static ovens with thermostatic control, 100-270°C temperature range
• Flame failure protection fitted to all burners
• Removable heavy-duty cast iron burners for easy removal and cleaning
• Vitreous enamel pot stands for durable, easy-clean pot support on the cooktop
• Fully welded and vitreous enamelled oven liner for hygienic, easy-clean interior
• Drop-down oven door with welded frame for robust, long-term operation
• Cool-touch stainless steel door handle for operator safety
• Heavy-duty reinforced control knobs designed for frequent use in commercial environments
• 304 stainless steel exterior finish with splashback (165mm)
• Adjustable feet and 2 additional rollers for stable placement and easy repositioning
• Available in natural gas or LPG - gas type must be specified at time of order
• R 3/4 (BSP) male gas connection
• Freestanding, free-standing mounting with integrated oven (no undershelf)
• Manufactured in New Zealand
• Designed for straightforward installation, cleaning, and servicing

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 528.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 484
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 12
• Griddle Surface: Smooth Mild Steel (Ribbed or Chrome Optional)
• Cooking Surface Area (mm): 892 x 530
• Number of Burners: 2
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
