Overview

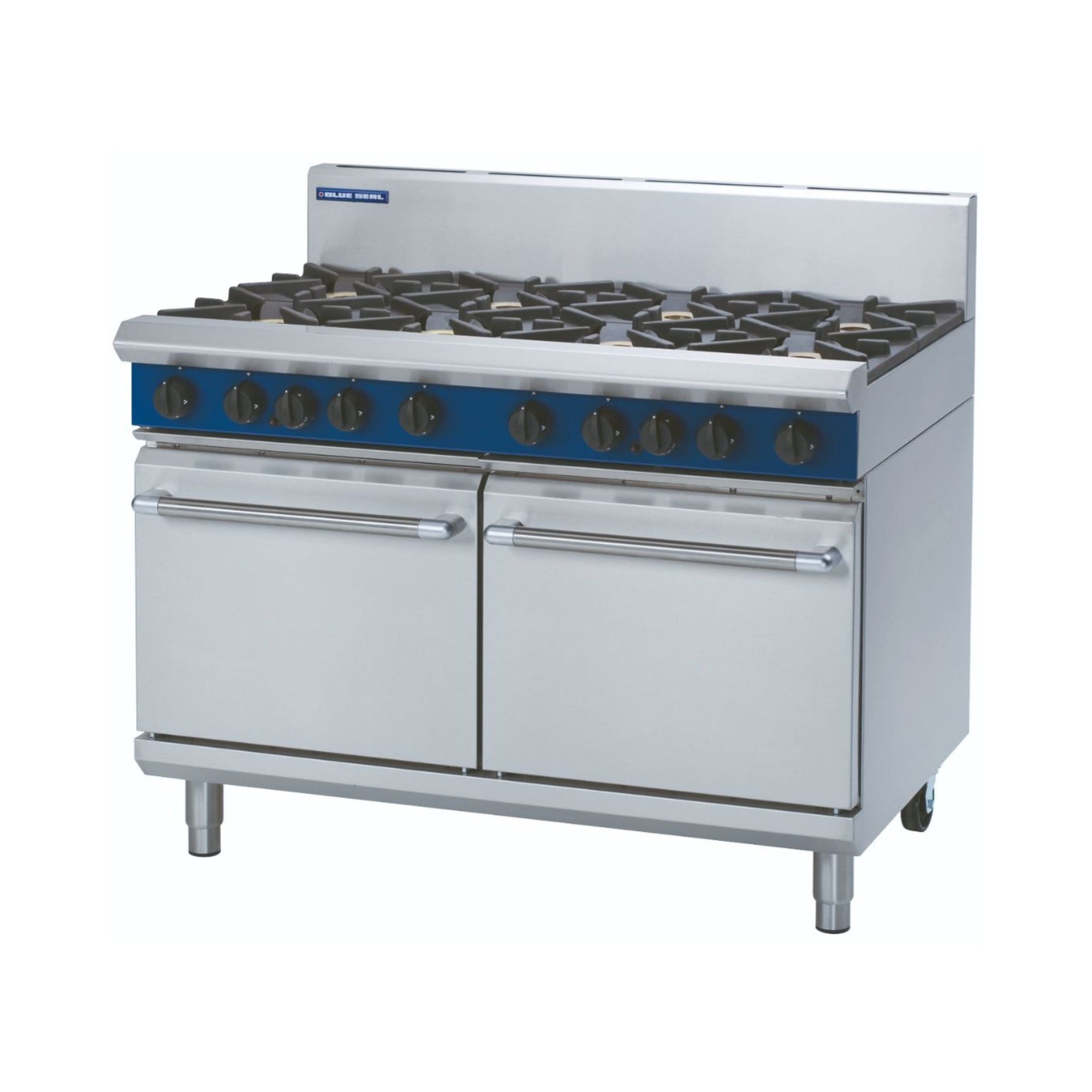

Blue Seal G528D Evolution Series 1200mm Gas Range Double Static Oven

The Blue Seal G528D Evolution Series is a heavy-duty 1200mm commercial gas range designed to handle the demands of high-volume restaurant, café, hotel, and catering kitchen environments. Featuring eight powerful 28MJ/hr open burners across the cooktop and two independent 1/1 GN gas static ovens below, this freestanding unit delivers substantial cooking capacity from a single piece of equipment. Constructed from 304 stainless steel throughout, it is available in both Natural Gas and LPG configurations to suit a wide range of commercial installations.

Engineered in New Zealand, the G528D combines robust construction with practical serviceability. Removable cast iron burners, vitreous enamel pot stands, and a fully welded vitreous enamelled oven liner make the unit straightforward to clean and maintain during continuous daily service. Thoughtful operational details such as flame failure protection on every burner, cool-touch door handles, reinforced control knobs, adjustable feet, and two rear rollers ensure both safety and ease of use in a busy professional kitchen.

Key Benefits

• Eight 28MJ/hr open burners deliver high heat output across a 1200mm cooktop, supporting simultaneous boiling, simmering, sautéing, frying, and stockpot cooking during peak service.
• Two independent 1/1 GN gas static ovens allow different dishes or cooking stages to run concurrently, maximising oven capacity and throughput without additional equipment.
• Thermostatic control across a 100-270°C range gives chefs precise temperature management for consistent baking and roasting results every service.
• Flame failure protection on all burners automatically cuts gas flow if a flame is extinguished, reducing the risk of gas build-up and improving kitchen safety.
• Cast iron sole plates within the oven cavities promote even heat distribution, minimising hot spots and delivering uniform cooking results across every tray.
• Removable cast iron burners and vitreous enamel pot stands simplify routine cleaning and reduce the time needed for maintenance between services.
• Adjustable feet combined with two rear rollers make it easy to level the unit on uneven floors and reposition it for cleaning or servicing without additional equipment.
• Available in Natural Gas and LPG, the G528D can be installed in a broad range of commercial premises without requiring specialised conversion kits.
• As part of the modular Blue Seal Evolution Series, the unit integrates seamlessly alongside complementary cooking equipment to build a cohesive professional kitchen suite.

Key Features

• Eight-burner cooktop configuration on a 1200mm gas range with double gas static oven
• 2 x 1/1 GN gas static oven cavities
• 8 x 28MJ/hr open burners
• Thermostatic oven temperature control from 100°C to 270°C
• Flame failure protection on all burners
• Removable heavy-duty cast iron burners
• Vitreous enamel cast iron pot stands for cookware stability and easy cleaning
• Fully welded and vitreous enamelled oven liner for durability and hygiene
• Cast iron sole plates inside oven cavities for even heat distribution
• Drop-down oven door with welded frame
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs
• 304 stainless steel construction throughout
• 165mm splashback included
• Adjustable feet with 2 additional rear rollers for levelling and repositioning
• R 3/4 (BSP) male gas connection
• Available in Natural Gas or LPG
• Freestanding, free-field installation
• Manufactured in New Zealand
• Designed for easy cleaning, installation, and servicing

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 528.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 484
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Thermostat | 110-270°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 8
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
