Overview

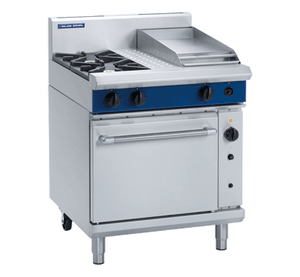

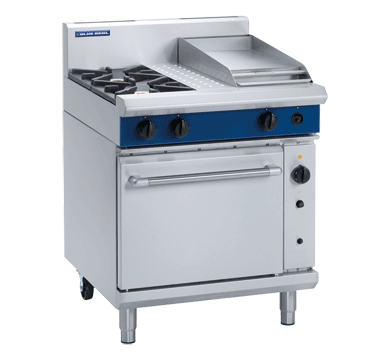

Blue Seal G54C Evolution Series 750mm Gas Range Convection Oven

The Blue Seal G54C Evolution Series is a 750mm wide commercial gas range that combines a two-burner cooktop, a 300mm right-hand griddle plate, and a GN 1/1 fan-assisted gas convection oven in a single freestanding unit. This multi-zone configuration allows chefs to boil, sauté, and grill on the cooktop while simultaneously baking or roasting in the oven below, making it a highly efficient solution for cafes, restaurants, and medium-volume commercial kitchens.

Constructed from heavy-duty stainless steel with a fully welded and vitreous enamelled oven liner, the G54C is built to withstand the rigours of daily professional use. Flame failure protection on all burners, a cool-touch door handle, cast iron sole plates for even heat distribution, and a 100W heavy-duty convection motor with a 200mm circulation fan reflect the engineering integrity that Blue Seal's Evolution Series is known for. The unit is available in both Natural Gas and LPG configurations.

Key Benefits

• Multi-zone cooking from a single 750mm footprint lets kitchen staff run burners, griddle, and convection oven concurrently, maximising throughput without occupying additional floor space.
• Fan-assisted convection circulation reduces cooking times and enables food to be cooked at lower temperatures compared to static ovens, improving energy efficiency and consistency across every tray.
• The 300mm smooth mild steel griddle plate with a dedicated 20MJ/hr burner provides a consistent flat cooking surface ideal for meats, eggs, and breakfast items, expanding menu capability.
• Flame failure protection on all burners automatically cuts gas flow if a flame is extinguished, providing a critical safety layer in busy kitchen environments.
• Cast iron sole plates in the oven cavity promote even heat distribution, reducing hot spots and delivering reliable bake results across the full GN 1/1 shelf area.
• Vitreous enamelled oven liner and removable cast iron burner components simplify daily cleaning, reducing downtime between service periods.
• Adjustable feet combined with two rear rollers make positioning and levelling on uneven floors straightforward, and allow the unit to be moved easily for cleaning or servicing.
• Heavy-duty reinforced control knobs and a drop-down door with welded frame ensure robust operation under constant daily use in demanding commercial kitchens.

Key Features

• 750mm wide freestanding gas range combining cooktop, griddle, and convection oven
• 2 x 28MJ/hr heavy-duty removable cast iron open burners with vitreous enamel pot stands
• 300mm smooth mild steel griddle plate (12mm thick) powered by a dedicated 1 x 20MJ/hr burner, positioned on the right-hand side as standard
• GN 1/1 fan-assisted gas convection oven cavity
• 100W heavy-duty convection motor with 200mm diameter circulation fan
• Cast iron sole plates in oven cavity for even heat distribution
• Thermostatic temperature control range: 50-320°C
• Indicator lights for power and heating status
• Flame failure protection on all burners (cooktop and griddle)
• Fully welded and vitreous enamelled oven liner for durability and easy cleaning
• Drop-down oven door with welded frame
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs
• Heavy-duty stainless steel exterior finish (304 stainless steel)
• 165mm splashback included; overall height including splashback 1085mm
• Adjustable feet with 2 additional rear rollers for easy repositioning
• Total gas rating: 106MJ/hr (29.4kW)
• Electrical supply: 230-240Vac, 50/60Hz, 1P+N+E, 0.13kW, 0.6A; 3-pin 10A plug cordset fitted
• Available in Natural Gas or LPG configurations
• Freestanding installation; modular Evolution Series design allows suite configuration
• Country of origin: New Zealand

Specifications

• Width (mm): 750
• Depth (mm): 805
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 250
• Packed Width (mm): 795.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.868021000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas / Electric
• Griddle Plate Thickness (mm): 12
• Griddle Surface: Smooth Mild Steel (Ribbed or Chrome Optional)
• Cooking Surface Area (mm): 600 x 480
• Number of Burners: 4
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 220-240V | Single Phase
