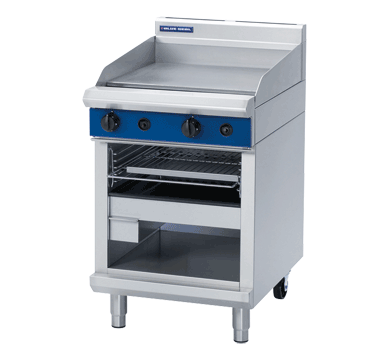

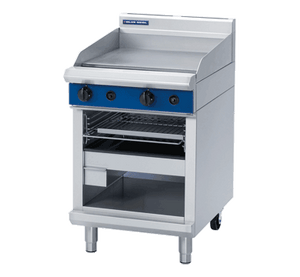

Blue Seal G55T Evolution Series 600mm Gas Griddle Toaster

The Blue Seal G55T Evolution Series Gas Griddle Toaster is a purpose-built dual-function unit that simultaneously grills on the upper surface and toasts on the lower surface, all powered by a single set of burners. The 16mm mild steel griddle plate is heated from below by two 22MJ/hr tubular burners fitted with stainless steel radiant reflectors, which direct heat upward to cook on the plate and downward to the chrome wire toasting rack underneath, making it an exceptionally efficient workhorse for high-volume breakfast and all-day dining operations.

Constructed with a 304 stainless steel exterior and freestanding design, the G55T is built to withstand the demands of a busy commercial kitchen. The unit is available in both Natural Gas and LPG configurations, features individual pilot lights and flame failure safety devices on each burner, and is backed by straightforward installation, cleaning and servicing procedures. Manufactured in New Zealand by Blue Seal, it delivers consistent, reliable output across a generous 600mm cooking surface.

Key Benefits

• Simultaneous grilling and toasting from a single set of burners maximises throughput and reduces the need for separate equipment, saving bench space and energy.
• The 16mm machined mild steel griddle plate retains and distributes heat evenly across the cooking surface, reducing hot spots and delivering consistent results during peak service.
• Stainless steel radiant reflectors on the burners direct heat efficiently to the toasting rack below, ensuring bread and buns are toasted without slowing down the griddle above.
• Individual pilot lights and flame failure devices on each burner provide an added layer of operational safety, automatically cutting gas if a flame is extinguished.
• A large-capacity grease collection drawer combined with a front grease channel keeps the work area clean and reduces the frequency of interruptions during service.
• The chrome wire toasting rack with integrated crumb tray is easily removable, simplifying cleaning and minimising downtime between services.
• Thermostat control across a 90–300°C temperature range (with a maximum plate centre temperature of 400°C) gives chefs precise control to suit a variety of menu items.
• Compatibility with both Natural Gas and LPG makes the unit suitable for a wide range of kitchen fit-outs without requiring equipment changes.
• Freestanding installation and a compact 600mm footprint allow flexible positioning within the kitchen line, with easy access for routine cleaning and servicing.

Key Features

• 600mm griddle plate with integral toaster unit positioned underneath
• 16mm machined mild steel smooth griddle plate for even heat retention and distribution
• Two 22MJ/hr tubular burners with stainless steel radiant reflectors, providing a combined gas rating of 44MJ/hr (12.2kW)
• Individual pilot light and flame failure safety device on each burner
• Stainless steel radiant reflectors direct heat downward to the toasting rack for efficient simultaneous toasting
• Chrome wire toasting rack with integrated crumb tray; rack dimensions 430mm x 470mm
• Cooking surface area: 590mm x 520mm
• Thermostat temperature control with a range of 90–300°C; maximum plate centre temperature 400°C
• 2.5mm stainless steel integral splashguard
• 2.5mm stainless steel grease channel at the front of the plate
• Large-capacity stainless steel grease collection drawer positioned below the mid shelf
• 165mm splashback included
• 304 stainless steel exterior construction
• Available in Natural Gas or LPG; R 1/2 (BSP) male gas connection
• Freestanding installation with overall dimensions of 600mm W x 812mm D x 1085mm H (including splashback); base unit height 915mm
• Designed and manufactured in New Zealand

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 1/2 (BSP) male
• Shipping Weight: 165
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.400690000m3
• Material: 304 Stainless Steel
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 16
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 600 x 480
• Number of Burners: 2
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
