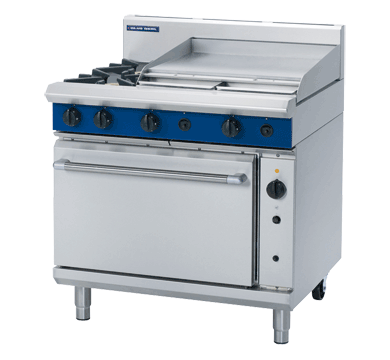

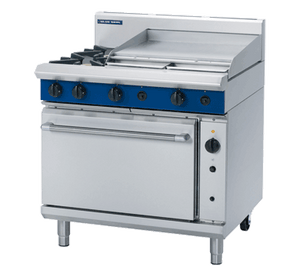

Blue Seal G56B Evolution Series 900mm Gas Range Convection Oven

The Blue Seal G56B Evolution Series is a 900mm commercial gas range combining a 2-burner cooktop and 600mm griddle with an integrated 2/1 GN fan-forced gas convection oven. Manufactured in New Zealand from heavy-duty 304 stainless steel, this freestanding unit delivers a total gas rating of 126 MJ/hr (35 kW), making it a high-output workhorse for restaurants, cafes, hotels, catering operations, and other demanding hospitality environments.

The cooktop section features two 28 MJ/hr open burners alongside two 20 MJ/hr griddle burners, with the griddle positioned on the right-hand side as standard. The integrated convection oven circulates heat evenly for consistent roasting, baking, and reheating across multiple gastronorm trays, while a thermostatic control spanning 50–320°C gives operators precise temperature management throughout the full cooking day.

Key Benefits

• Fan-forced convection oven circulates heat evenly throughout the cavity, reducing cooking times and delivering consistent results across all tray levels compared to static ovens.
• High-output open burners (28 MJ/hr each) with forged brass caps provide rapid heat recovery and precise flame control for boiling, simmering, sautéing, frying, and stockpot work.
• Integrated 600mm griddle with dedicated 20 MJ/hr burners offers a versatile flat-top cooking surface ideal for breakfast service, proteins, and high-volume plate work without requiring a separate appliance.
• Flame failure protection on all burners automatically cuts gas supply if a flame is extinguished, supporting kitchen safety and compliance.
• Adjustable feet and two additional rollers make positioning, levelling, and routine repositioning for cleaning straightforward in tight kitchen layouts.
• Fully welded and vitreous enamelled oven liner resists staining and is easy to wipe down, reducing cleaning time during and after service.
• Modular Evolution Series design integrates seamlessly with other Blue Seal 900mm suite components, supporting a complete, matched commercial kitchen line-up.
• Available in Natural Gas or LPG configurations, giving operators flexibility to suit existing gas infrastructure.

Key Features

• 900mm wide freestanding gas range with integrated 2/1 GN fan-forced convection oven
• 2 x open burners rated at 28 MJ/hr each, with removable heavy-duty cast iron burner heads and forged brass caps
• 2 x griddle burners rated at 20 MJ/hr each; 600mm griddle positioned on the right-hand side as standard
• Total gas rating: 126 MJ/hr (35 kW)
• Oven thermostatic control range: 50–320°C
• 2/1 GN oven cavity accommodates full-size gastronorm trays for multi-tray batch cooking
• Flame failure protection on all burners
• Vitreous enamel cast iron pot stands for cookware stability and simplified cleaning
• Fully welded, vitreous enamelled oven liner for durability and hygiene
• Drop-down oven door with welded frame
• Cool-touch stainless steel oven door handle
• Heavy-duty reinforced control knobs rated for high-temperature commercial use
• 165mm splashback included; overall height including splashback 1085mm, oven body height 915mm
• Constructed from heavy-duty 304 stainless steel throughout
• Adjustable stainless steel feet plus 2 additional rollers for mobility and levelling
• 3-pin 10A plug cordset fitted for electrical connection (fan motor)
• Power supply: 220–240 V, single phase, 50 Hz
• Gas connection: R 3/4 (BSP) male
• Available in Natural Gas or LPG — specify at time of ordering
• Country of origin: New Zealand
• Part of the modular Blue Seal Evolution Series for integrated kitchen suite configurations

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 275
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas / Electric
• Griddle Plate Thickness (mm): 12
• Griddle Surface: Smooth Mild Steel (Ribbed or Chrome Optional)
• Cooking Surface Area (mm): 900 x 480
• Number of Burners: 6
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 220-240V | Single Phase
