Overview

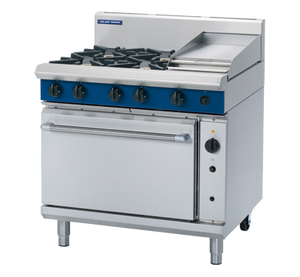

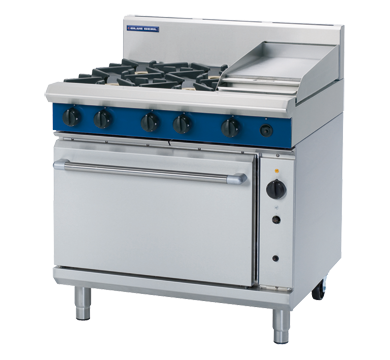

Blue Seal G56C Evolution Series 900mm Gas Range Convection Oven

The Blue Seal G56C Evolution Series is a 900mm commercial gas range combining a four-burner cooktop and 300mm right-hand griddle with an integrated 2/1 GN fan-forced gas convection oven. Designed and built in New Zealand from heavy-duty 304 stainless steel, it delivers the power and reliability demanded by restaurants, cafes, hotels, catering operations, and other high-volume commercial kitchens.

The cooktop features four 28MJ/hr open burners and a dedicated 20MJ/hr griddle burner, giving a total gas rating of 162MJ/hr (45kW), while the convection oven's heavy-duty motor and circulation fan reduce cooking times and allow food to be cooked at lower temperatures than conventional static ovens. Flame failure protection on every burner, a fully welded vitreous enamelled oven liner, cool-touch door handle, and adjustable feet with two additional rollers make the G56C a practical, safe, and easily maintained centrepiece for any commercial kitchen suite.

Key Benefits

• Fan-forced heat circulation in the 2/1 GN convection oven delivers faster, more even cooking results across multiple trays, reducing cooking times and enabling lower temperature settings for better food quality.
• Four high-output 28MJ/hr open burners provide precise flame control and rapid heat recovery for boiling, simmering, sautéing, frying, and stockpot work during continuous service.
• The integrated 300mm right-hand griddle, powered by a dedicated 20MJ/hr burner, expands cooking versatility without requiring a separate piece of equipment.
• Flame failure protection on all burners automatically cuts the gas supply if a flame is extinguished, enhancing operational safety for busy kitchen teams.
• Removable cast iron burners and vitreous enamel pot stands simplify cleaning and routine maintenance, reducing kitchen downtime.
• Adjustable feet and two additional rollers make levelling and repositioning straightforward during installation or kitchen reconfiguration.
• The fully welded, vitreous enamelled oven liner resists grease build-up and is easier to clean than uncoated surfaces, supporting food safety and hygiene standards.
• As part of the modular Blue Seal Evolution Series, the G56C integrates seamlessly with other 900mm suite components to create a cohesive, purpose-built commercial kitchen line.
• Heavy-duty reinforced control knobs and a drop-down oven door with welded frame are built to withstand the rigours of continuous commercial use.

Key Features

• 900mm wide freestanding gas range with four-burner cooktop and 300mm right-hand griddle over an integrated 2/1 GN gas convection oven
• Four 28MJ/hr open burners with removable heavy-duty cast iron construction and forged brass caps
• One dedicated 20MJ/hr griddle burner; smooth griddle plate positioned on the right-hand side as standard
• Total gas rating: 162MJ/hr (45kW)
• Thermostatic oven temperature control: 50-320°C
• Fan-forced convection oven with heavy-duty motor and circulation fan for even heat distribution and reduced cooking times
• Cast iron sole plates in oven cavity for consistent heat distribution
• Fully welded and vitreous enamelled oven liner for durability and easy cleaning
• Flame failure protection on all burners
• Vitreous enamel cast iron pot stands for cookware stability and simplified cleaning
• Drop-down oven door with welded frame
• Cool-touch stainless steel door handle
• Heavy-duty reinforced heat-resistant control knobs
• Removable spill trays for easy cleaning
• Adjustable stainless steel feet and two additional rollers
• 165mm splashback included; overall height including splashback is 1085mm
• Heavy-duty 304 stainless steel construction throughout
• Available in Natural Gas or LPG; R 3/4 (BSP) male gas connection
• Power supply: 220-240V, single phase, 50Hz (3-pin 10A plug cordset fitted)
• Part of the modular Blue Seal Evolution Series for seamless integration into complete kitchen suites
• Country of origin: New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 275
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas / Electric
• Griddle Plate Thickness (mm): 12
• Griddle Surface: Smooth Mild Steel (Ribbed or Chrome Optional)
• Cooking Surface Area (mm): 900 x 480
• Number of Burners: 6
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 220-240V | Single Phase
