Overview

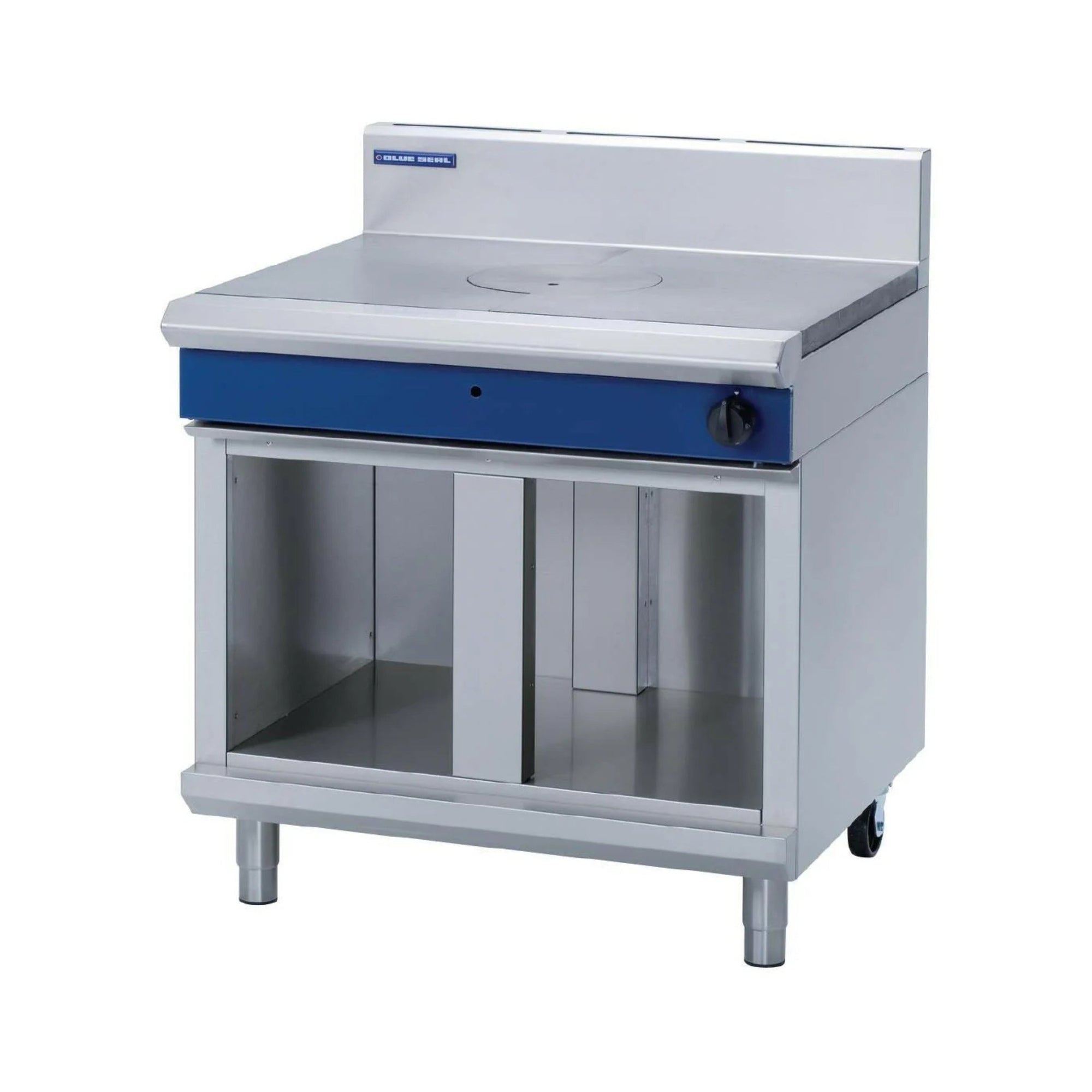

Blue Seal G57-CB Evolution Series 900mm Gas Target Top – Cabinet Base

The Blue Seal G57-CB is a 900mm gas target top built on a cabinet base, forming part of the renowned Evolution Series manufactured in New Zealand. Powered by a 45MJ/hr dual ring cast iron burner housed in a burner box lined with 50mm refractory ceramic blocks, it delivers outstanding heat output, precise control, and rapid heat recovery to meet the demands of high-volume commercial kitchens.

The target top casting accommodates up to eight 65mm GN 1/1 containers, making it exceptionally versatile for simultaneous multi-dish cooking. An optional GN 1/1 four-position racking kit is available for one or two cabinet bays, maximising storage beneath the cooking surface. Available in natural gas or LPG, the G57-CB is constructed from 304 stainless steel and designed to integrate seamlessly into a match suite configuration.

Key Benefits

• High-output 45MJ/hr dual ring burner delivers rapid heat recovery, reducing wait times during busy service periods.
• Accommodates up to eight 65mm GN 1/1 containers simultaneously, enabling a wide variety of dishes to be cooked at once.
• Refractory ceramic block-lined burner box improves thermal efficiency, reducing gas consumption over extended use.
• Flame failure protection combined with a continuous pilot burner enhances operational safety and provides reliable ignition.
• Adjustable feet ensure stable levelling on uneven floors, while two additional rollers allow the unit to be moved easily for thorough cleaning and servicing.
• Heavy-duty reinforced control knobs withstand the rigours of constant daily use in demanding kitchen environments.
• Optional GN 1/1 four-position racking kit (one or two cabinet bays) adds flexible, organised storage directly beneath the cooking surface.
• Fully modular design supports a match suite finish, allowing seamless integration with other Evolution Series equipment.
• Easy-clean construction and straightforward installation and service access minimise downtime and labour costs.

Key Features

• 900mm gas target top mounted on a cabinet base with a single hinged door
• 45MJ/hr dual ring cast iron burner for powerful, efficient heat output
• Burner box lined with 50mm refractory ceramic blocks for excellent thermal efficiency
• Super heavy-duty target top cast iron castings for outstanding heat control and recovery
• Capacity for up to eight 65mm GN 1/1 containers across the cooking surface
• Flame failure protection with continuous pilot burner for safe, reliable operation
• Heavy-duty reinforced control knobs for durability and ease of use
• Adjustable feet for precise levelling, plus two additional rollers for mobility
• Optional GN 1/1 four-position racking kit available for one or two cabinet bays
• 165mm splashback included
• Double skin 0.9mm 304 stainless steel interior and exterior construction
• Fully modular design compatible with match suite configuration across the Evolution Series
• Available in natural gas or LPG configurations
• 3/4 inch BSP male gas connection
• Freestanding installation with variable power control via single knob
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 287
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Single Knob Control
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Surface: Heavy-Duty Cast Iron
• Cooking Surface Area (mm): 900 x 480
• Number of Burners: 1
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
