Overview

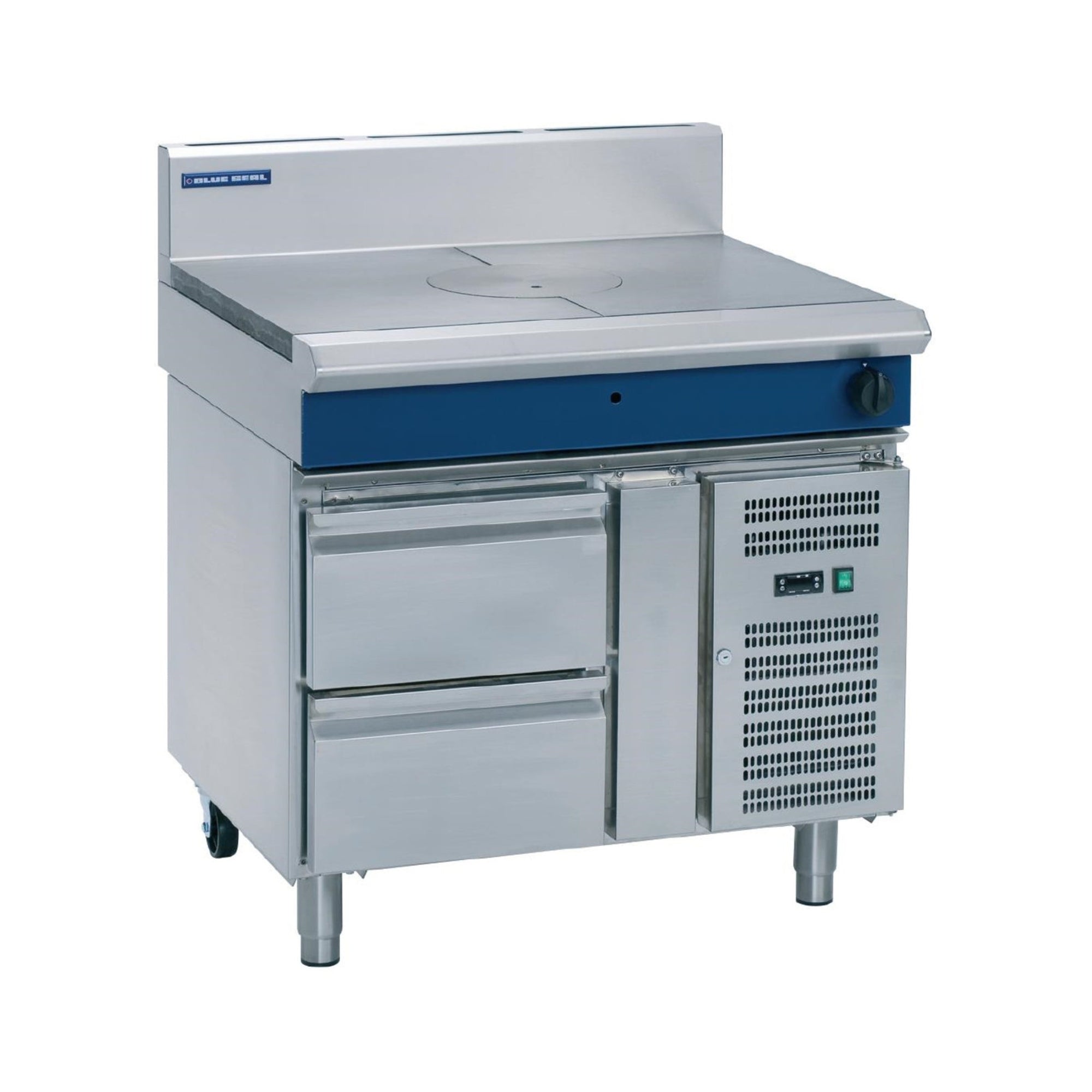

Blue Seal G57-RB Evolution Series 900mm Gas Target Top with Refrigerated Base

The Blue Seal G57-RB combines a high-output 900mm gas target top with a purpose-built refrigerated base, delivering a compact, all-in-one cooking and cold storage solution for professional kitchens. The dual-ring cast iron burner delivers 45MJ/hr with outstanding heat control and recovery, while a burner box lined with 50mm refractory ceramic blocks ensures excellent thermal efficiency. Available in Natural Gas or LPG, the unit is manufactured in New Zealand from 304 stainless steel and integrates seamlessly into the Evolution Series modular suite.

The refrigerated base houses two GN 1/1 drawers with 100mm deep pan capacity, keeping ingredients close at hand during service. The ventilated R134a refrigeration system maintains a temperature range of -2°C to +8°C and carries a Tropical Climate rating, making it reliable in demanding ambient conditions. Adjustable feet and two additional rollers allow flexible positioning, while the design prioritises easy cleaning, installation, and servicing to minimise kitchen downtime.

Key Benefits

• Keeps prepped ingredients immediately accessible beneath the cooking surface, reducing movement and speeding up service.
• The 45MJ/hr dual-ring burner delivers rapid heat recovery so cooking pace is maintained through a busy service period.
• Tropical Climate rated refrigeration holds a consistent -2°C to +8°C even in warm or humid kitchen environments, protecting food safety.
• Flame failure protection and a continuous pilot burner reduce the risk of uncontrolled gas release, supporting a safer kitchen operation.
• Refractory ceramic-lined burner box improves thermal efficiency, helping to lower gas consumption relative to output.
• Ventilated refrigeration system provides even, stable cooling throughout both drawers without temperature hot spots.
• Adjustable feet combined with two rollers make it straightforward to level the unit on uneven floors and reposition it for cleaning or service access.
• Heavy-duty reinforced control knobs withstand the wear of constant daily use without degrading accuracy or feel.
• Modular Evolution Series design allows the target top to pair with cabinet, leg stand, refrigerated, or oven bases, giving flexibility as kitchen needs change.

Key Features

• 900mm gas target top mounted on a matching refrigerated base unit.
• 45MJ/hr (12.5kW) dual-ring cast iron burner for high-output, controllable heat.
• Three-piece heavy-duty cast iron top with a fully machined surface.
• Top plates and removable centre piece incorporate an integral spill protection design.
• Cast iron top reinforced with integral heat fins for clear heat zone definition.
• Separate left and right side heat zones, each with a dedicated 90-300°C thermostat.
• Burner box lined with 50mm refractory ceramic blocks for superior thermal efficiency.
• Flame failure protection device cuts gas supply if the flame is extinguished.
• Continuous pilot burner for reliable re-ignition.
• Two GN 1/1 drawers with 100mm deep pan capacity in the refrigerated base.
• Ventilated refrigeration system using R134a refrigerant.
• Digital temperature control adjustable from -2°C to +8°C, Tropical Climate rated.
• Single knob control with digital display for refrigeration temperature monitoring.
• 165mm splashback included (overall height 1085mm including splashback; cooking surface height 915mm).
• Constructed from 304 stainless steel throughout.
• Heavy-duty reinforced control knobs designed for intensive daily use.
• Adjustable feet plus two additional rollers for levelling and mobility.
• Self-contained, suite-matched modular base compatible with the Evolution Series range.
• Available in Natural Gas or LPG configurations.
• 3/4" BSP male gas connection.
• Electrical supply: 220-240V, single phase, 50Hz, 1.8A; supplied with 3-pin 10A plug cordset.
• Freestanding, free-rolling installation type.
• Designed for straightforward cleaning, installation, and routine servicing.
• Country of origin: New Zealand.

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 287
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Refrigerated Base
• Door Type: Drawer
• Splash Back: Yes (165mm)
• No. of Doors: 2
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Ventilated | R134a
• Cooling Type: Ventilated | Tropical Rated
• Installation Type: Freestanding
• Control Type: Single Knob Control
• Temperature Control: Digital | -2°C to +8°C
• Mounting Type: Freestanding
• Display Type: Digital Electronic
• Fuel Type: Gas / Electric
• Griddle Surface: Heavy-Duty Cast Iron
• Cooking Surface Area (mm): 900 x 480
• Number of Burners: 1
• Power Rating: 1.8A|1P+N+E 3 pin 10A plug cordset fitted|220-240Vac|50Hz
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 220-240V | Single Phase
