Overview

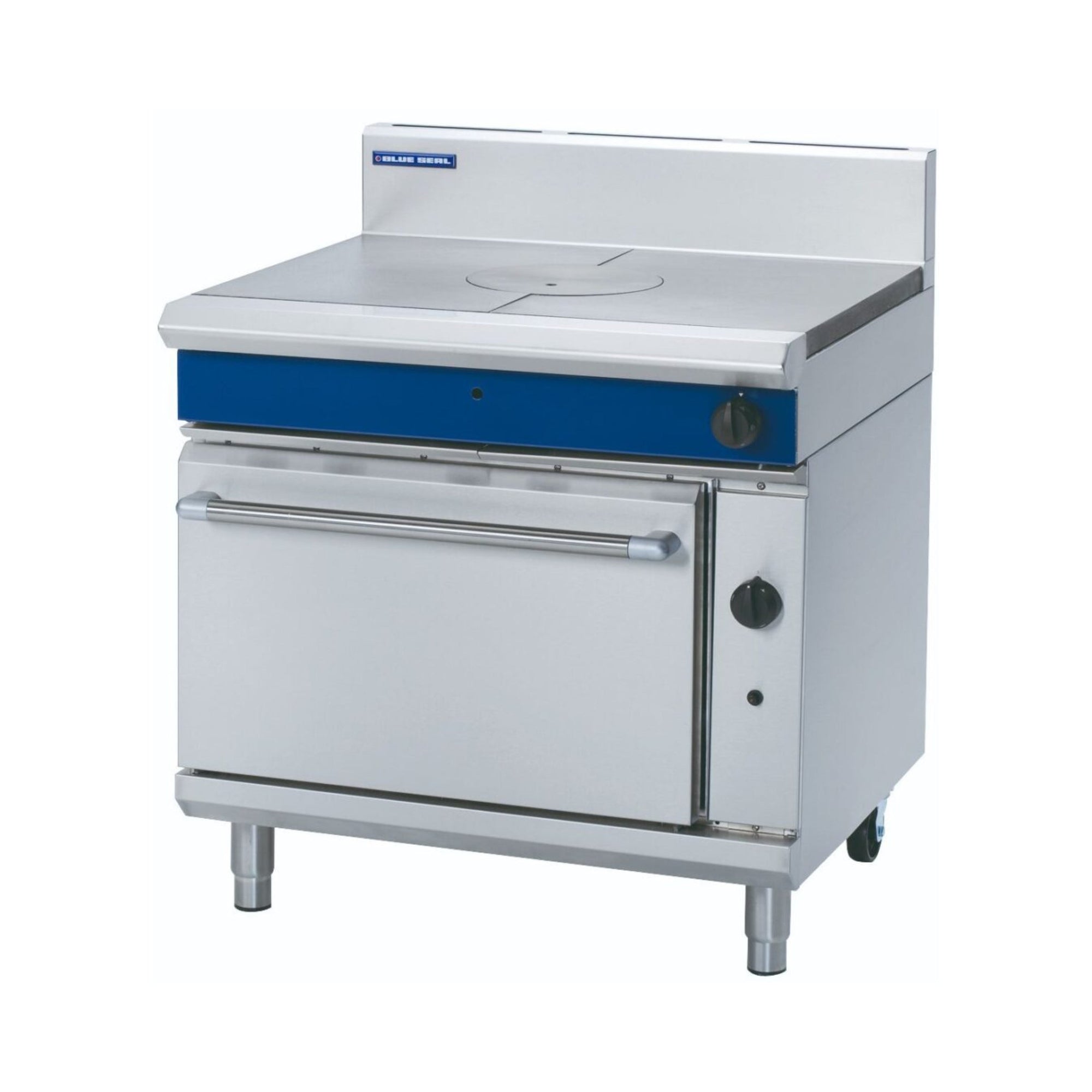

Blue Seal G570 Evolution Series 900mm Gas Target Top Static Oven Range

The Blue Seal G570 Evolution Series is a heavy-duty 900mm gas range combining a high-output target top with a full-size 2/1 GN gas static oven, purpose-built for demanding commercial kitchen environments. Manufactured in New Zealand from 304 stainless steel, it delivers consistent, reliable performance across continuous service periods, making it well suited to restaurants, hotels, catering operations and institutional kitchens.

At its core is a 45MJ/hr dual-ring cast iron burner providing rapid heat and precise control over a 900mm x 625mm cooking surface, while the 30MJ oven burner with thermostatic control between 80 and 300°C handles roasting, baking and general oven cookery with even, stable heat. The burner box features a 50mm lining of refractory ceramic blocks for superior thermal efficiency, and the fully welded vitreous enamelled oven liner makes cleaning straightforward after every service.

Key Benefits

• The 45MJ/hr dual-ring cast iron burner delivers rapid heat-up and fast temperature recovery, keeping pace with high-volume service demands.
• Thermostatic control across a wide 80–300°C range gives chefs precise oven temperature management for consistent baking and roasting results.
• A 2/1 GN oven cavity accommodates full gastronorm trays, maximising usable cooking capacity without requiring additional oven equipment.
• Refractory ceramic block lining in the burner box improves thermal efficiency, reducing gas consumption and operating costs over time.
• Flame failure protection and a continuous pilot burner provide an important safety layer, automatically cutting gas supply if the flame is extinguished.
• Adjustable feet and two additional rollers allow straightforward levelling on uneven floors and easy repositioning during cleaning or kitchen reconfiguration.
• The vitreous enamelled oven liner and stainless steel construction resist grease and food residue build-up, simplifying daily cleaning and maintaining hygiene standards.
• Availability in both Natural Gas and LPG configurations gives operators flexibility to suit existing gas infrastructure without modification.
• Heavy-duty reinforced control knobs and a cool-touch stainless steel door handle are built to withstand the rigours of constant daily use in a busy kitchen.

Key Features

• 900mm wide gas target top range with integrated 2/1 GN gas static oven
• 45MJ/hr dual-ring cast iron burner with 900mm x 625mm cooking surface (5,625cm²)
• Burner centre diameter: 280mm; maximum plate temperature at centre: 500°C
• 50mm refractory ceramic block lining in burner box for enhanced thermal efficiency
• 30MJ gas oven burner with thermostatic control, 80–300°C temperature range
• Flame failure protection with continuous pilot burner for safe operation
• Fully welded oven cavity with vitreous enamelled liner for durability and easy cleaning
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs
• 165mm splashback included
• 2 oven shelves supplied as standard
• Adjustable feet plus 2 additional rollers for levelling and mobility
• Constructed from 304 stainless steel throughout
• Available in Natural Gas or LPG — specify preferred gas type at ordering
• Gas connection: R 3/4 (BSP) male
• Freestanding, free-standing installation type
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 287
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Single Knob Control
• Temperature Control: Thermostat | 110-270°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Surface: Heavy-Duty Cast Iron
• Cooking Surface Area (mm): 900mm x 625mm, 5625cm2
• Number of Burners: 1
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
