Overview

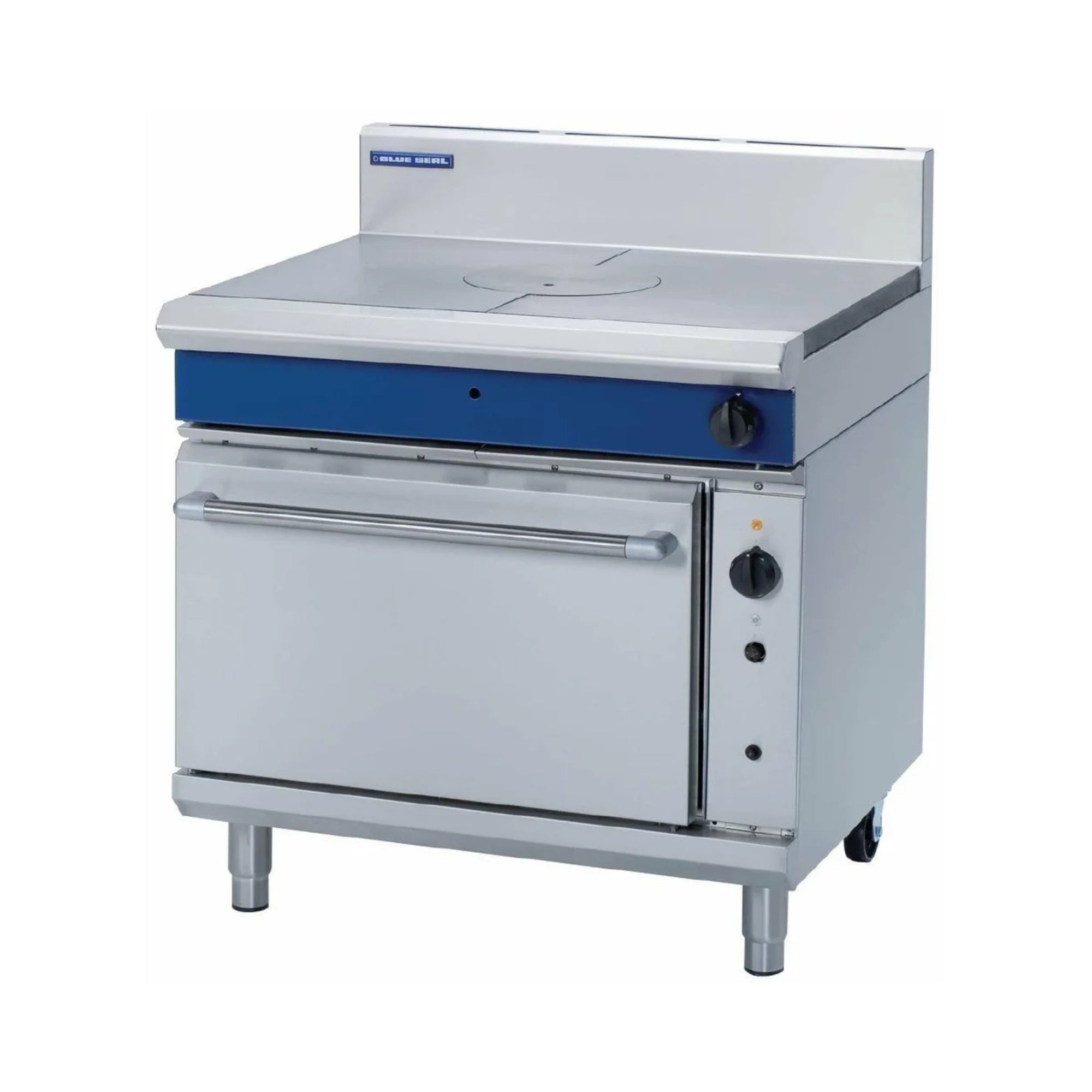

Blue Seal G576 Evolution Series 900mm Gas Target Top Convection Oven Range

The Blue Seal G576 is a heavy-duty 900mm gas range combining a high-output dual-ring cast iron target top burner with a fan-forced 2/1 GN gas convection oven, purpose-built for the demands of high-volume commercial kitchens. Manufactured in New Zealand from 304 stainless steel, the G576 forms part of the Evolution Series modular range and is available in both Natural Gas and LPG configurations.

Designed for versatility, the G576 can be configured as a stand-alone unit or combined with a choice of base options including a cabinet base, leg stand, refrigeration base, or oven base with static or convection cooking variants. The burner box is lined with 50mm refractory ceramic blocks for enhanced thermal efficiency, while the fully welded vitreous enamelled oven liner ensures durability and straightforward cleaning.

Key Benefits

• The 45MJ/hr dual-ring cast iron burner delivers rapid heat recovery and precise temperature control, keeping pace with continuous high-volume service.
• Fan-forced convection in the 2/1 GN oven ensures even heat distribution across multiple trays, improving consistency for baking, roasting and batch cooking.
• Thermostatic control across a wide 50-320°C range gives chefs flexibility for delicate pastries through to high-heat roasting.
• Flame failure protection and a continuous pilot burner provide an important safety safeguard during busy service periods.
• The fully welded vitreous enamelled oven liner resists staining and grease build-up, significantly reducing cleaning time between services.
• Adjustable feet combined with two additional rollers make positioning and levelling on uneven kitchen floors straightforward.
• Modular design allows the unit to be paired with multiple base configurations, including refrigeration or additional oven bases, to suit different kitchen layouts.
• A cool-touch stainless steel door handle and heavy-duty reinforced control knobs reduce the risk of burns and withstand the rigours of daily commercial use.
• Available in both Natural Gas and LPG, offering flexibility for sites with differing gas supply infrastructure.

Key Features

• 900mm wide gas target top range with gas convection oven base, Evolution Series modular construction
• 45MJ/hr dual-ring cast iron burner with 280mm centre diameter; maximum plate temperature at centre reaches 500°C
• Cooking surface area: 900mm x 625mm (5,625cm²)
• Burner box lined with 50mm refractory ceramic blocks for improved thermal efficiency
• 2/1 GN capacity gas convection oven with 30MJ oven burner
• Thermostatic temperature control from 50°C to 320°C
• Flame failure protection and continuous pilot burner for safe operation
• Drop-down oven door with fully welded reinforced frame
• Fully welded oven liner with vitreous enamel coating for durability and easy cleaning
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs for long-term reliability
• Adjustable feet and 2 additional rollers for easy levelling and repositioning
• 304 stainless steel exterior construction
• 165mm splashback included
• Freestanding, freestanding installation type
• Available in Natural Gas or LPG; specify gas type at time of ordering
• Compatible base configurations include cabinet base, leg stand, refrigeration base, or static/convection oven base
• Manufactured in New Zealand
• Power supply: 220-240V AC, single phase, 50Hz (for convection fan motor)

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Single Knob Control
• Temperature Control: Thermostat | 110-270°C
• Mounting Type: Freestanding
• Fuel Type: Gas / Electric
• Griddle Surface: Heavy-Duty Cast Iron
• Cooking Surface Area (mm): 900mm x 625mm, 5625cm2
• Number of Burners: 1
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 220-240V | Single Phase
