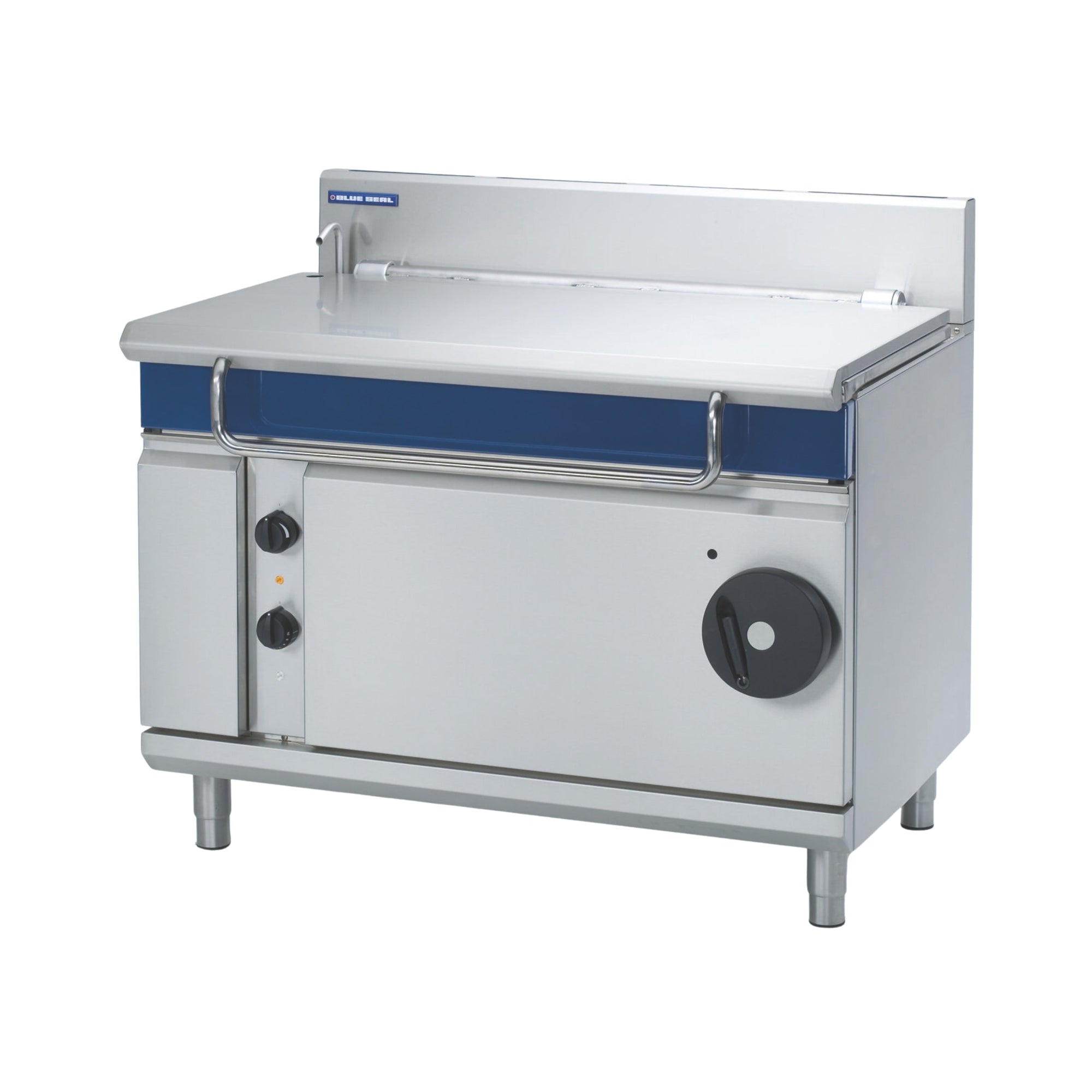

Blue Seal G580-12 Evolution Series 1200mm Gas Tilting Bratt Pan

The Blue Seal G580-12 is a 1200mm gas tilting bratt pan from the Evolution Series, purpose-built for high-volume commercial kitchens in restaurants, hotels, hospitals, schools, and catering operations. With a 120-litre stainless steel pan, a 90MJ/hr single 6-bar burner, and a thermostatic temperature range of 50–320°C, it delivers rapid, even heat across a 1080mm x 450mm cooking surface for consistent results through every service.

Constructed from 304 stainless steel with a 2mm pan body and a 12mm thick even-heat base, the G580-12 is engineered for durability, hygiene, and ease of maintenance. The manually operated tilting mechanism and large-capacity pouring spout allow safe, efficient discharge of liquids and food, reducing manual handling effort. Available in Natural Gas or LPG configurations, it integrates seamlessly into a complete Blue Seal Evolution Series kitchen suite.

Key Benefits

• High-output 90MJ/hr single burner delivers rapid heat recovery to maintain cooking temperatures during busy batch production periods.
• 120-litre pan capacity supports large-scale cooking of braises, soups, stews, sautés, poaching, and frying in a single vessel, reducing the need for multiple pots or pans.
• Manually operated tilting mechanism with fold-away handle allows operators to safely empty the pan with minimal effort, improving workflow and reducing manual handling risks.
• 12mm thick stainless steel even-heat pan base ensures uniform heat distribution across the entire cooking surface, minimising hot spots and delivering consistent food quality.
• Precision electric thermostat with 50–320°C range and over-temperature safety cut-out gives chefs accurate temperature control for a wide variety of cooking methods.
• Automatic pilot ignition and flame failure protection add an important safety layer during continuous high-demand kitchen operation.
• Heavy-duty lid and hinge system with full stainless steel construction and a 165mm splashback simplifies cleaning and supports food safety compliance.
• Adjustable stainless steel feet and galvanised steel chassis allow secure, level installation on uneven floors in demanding commercial environments.
• Part of the modular Blue Seal Evolution Series, enabling integration into complete professional kitchen suites for a cohesive, space-efficient layout.

Key Features

• 1200mm wide gas tilting bratt pan with 120-litre capacity
• 90MJ/hr (25kW) single 6-bar stainless steel burner
• Electric thermostatic burner control with 50–320°C temperature range
• Over-temperature safety cut-out for added operational safety
• Automatic pilot ignition with flame failure protection
• Manually operated tilting mechanism with fold-away handle
• Large-capacity pouring spout for safe, controlled emptying
• Heavy-duty lid and hinge system
• Full stainless steel pan with 2mm pan body construction
• 12mm thick stainless steel even-heat pan base for uniform heat distribution
• Cooking surface area 1080mm x 450mm (3,510cm²)
• Galvanised steel chassis for structural rigidity
• Heavy-duty stainless steel legs with adjustable feet
• Large, heat-resistant reinforced control knobs
• 165mm stainless steel splashback
• 304 stainless steel throughout
• Electrical connection required for thermostat: 220–240Vac, 50/60Hz, 1A, 1P+N+E
• Gas connection: R 3/4 (BSP) male
• Available in Natural Gas or LPG — specify at time of ordering
• Freestanding, modular installation for integration into Blue Seal Evolution Series suites
• Lid open height: 1,566mm
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 655.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 286
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 120
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat with Manual Tilt
• Temperature Control: Thermostat | 90-240°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Cooking Surface Area (mm): 1080mm x 450mm, 3510cm2
• Number of Burners: 1
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: 220-240Vac, 50/60Hz, 1A, 1P+N+E
