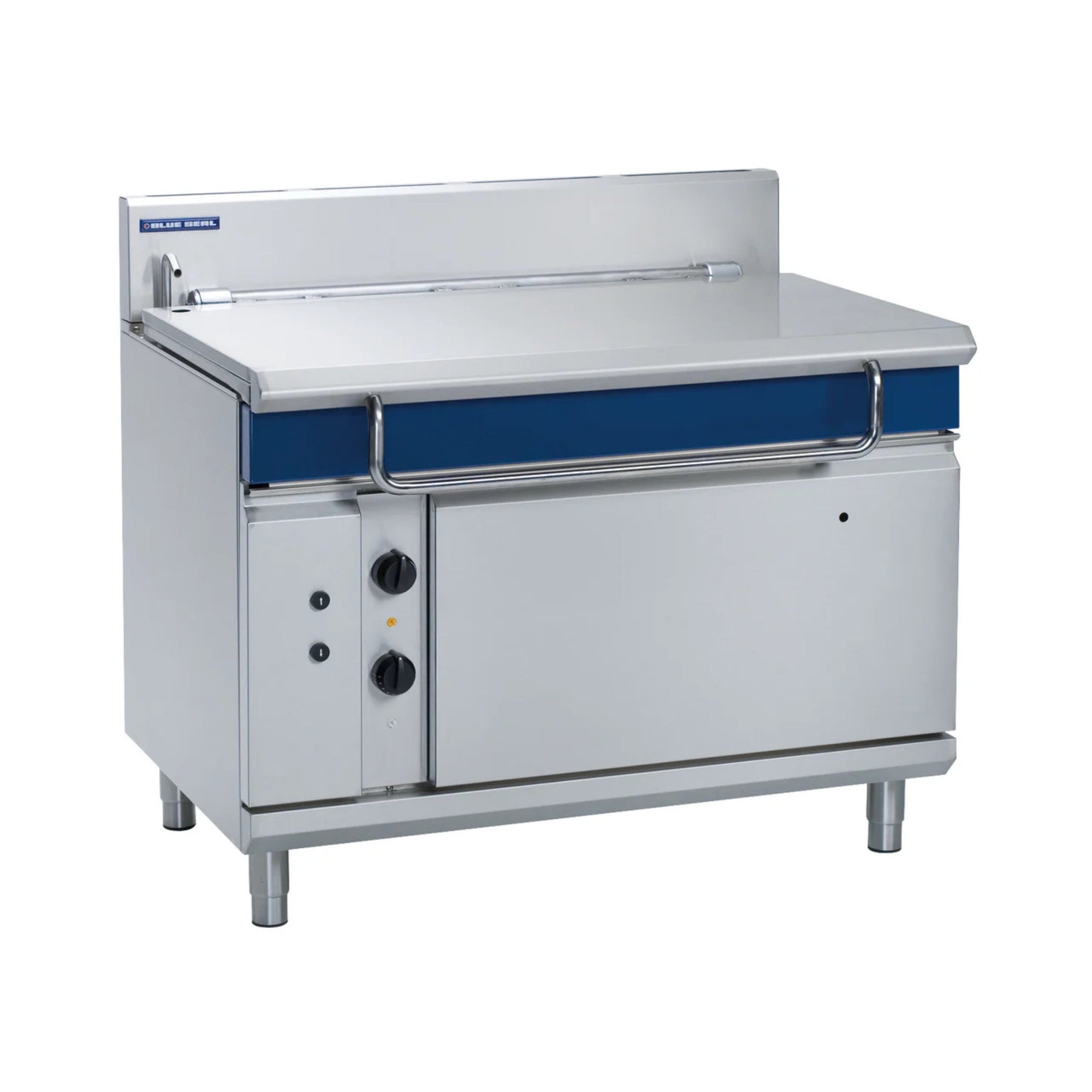

Blue Seal G580-12E Evolution Series 1200mm Gas Tilting Bratt Pan

The Blue Seal G580-12E is a 1200mm gas tilting bratt pan from the Evolution Series, purpose-built for high-volume commercial kitchens in restaurants, hotels, hospitals, schools and catering operations. With a generous 120-litre stainless steel pan, a 90MJ/hr single 6-bar burner and a 12mm thick even-heat pan base, it delivers rapid, consistent heat across a 1080mm x 450mm cooking surface for demanding batch cooking applications including frying, braising, boiling, simmering, poaching, steaming and sautéing.

Constructed from 304 stainless steel throughout, the G580-12E features an electric power tilting mechanism for safe, low-effort discharge of food and liquids, a fold-away handle, a heavy-duty lid and hinge system, and a large-capacity pouring spout. Thermostatic control spanning 50–320°C, an over-temperature safety cut-out, automatic pilot ignition with flame failure protection, and a galvanised steel chassis combine to deliver reliable, hygienic and easily maintained performance. Available in Natural Gas or LPG configurations, it integrates seamlessly into any Blue Seal Evolution Series kitchen suite. Made to order with an 8–10 week lead time.

Key Benefits

• Electric power tilting mechanism allows operators to discharge large volumes of food or liquid safely with minimal physical effort, reducing manual handling risk during busy service periods.
• A 12mm thick stainless steel even-heat pan base combined with a 90MJ/hr single 6-bar burner ensures rapid heat recovery and uniform temperature distribution across the entire cooking surface.
• Wide thermostatic range of 50–320°C gives chefs precise control for everything from gentle poaching and simmering to high-heat frying and searing in a single piece of equipment.
• Over-temperature safety cut-out and automatic pilot ignition with flame failure protection provide continuous peace of mind for kitchen safety compliance.
• Large-capacity pouring spout and fold-away handle simplify portioning and emptying, improving workflow efficiency during high-output service.
• Easy-clean rounded internal corners and a full stainless steel 2mm pan body minimise food traps and reduce cleaning time between cooking runs.
• Heavy-duty stainless steel legs with adjustable feet allow level installation on uneven kitchen floors, while the galvanised steel chassis provides a robust structural foundation for long service life.
• Modular Evolution Series design integrates with other Blue Seal equipment to create cohesive, space-efficient professional kitchen suites.

Key Features

• 1200mm gas tilting bratt pan with 120-litre capacity
• 90MJ/hr single 6-bar stainless steel burner
• 50–320°C electric thermostatic burner control
• Electric power tilting mechanism for effortless pan discharge
• Fold-away handle for compact operation and access
• Heavy-duty lid and hinge system
• Full stainless steel pan construction with 2mm pan body
• 12mm thick stainless steel even-heat pan base for superior heat distribution
• Large-capacity pouring spout for controlled emptying
• Over-temperature safety cut-out for operator protection
• Automatic pilot ignition with flame failure protection
• Galvanised steel chassis for structural rigidity
• Heavy-duty stainless steel legs with adjustable feet
• Large, heat-resistant reinforced control knobs for ease of use
• 304 stainless steel construction throughout
• 165mm splashback included
• Cooking surface area 1080mm x 450mm (3510cm²)
• Electrical supply: 220–240V AC, 50/60Hz, 1A, 1P+N+E, 3-pin 10A plug cordset fitted
• Available in Natural Gas or LPG – specify at time of ordering
• Gas connection: R 3/4 (BSP) male
• Freestanding installation with modular Evolution Series compatibility
• Made to order – 8 to 10 week lead time
• Country of origin: New Zealand

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 655.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 286
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 120
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat with Electric Tilt
• Temperature Control: Thermostat | 90-240°C
• Mounting Type: Freestanding
• Fuel Type: Gas / Electric
• Cooking Surface Area (mm): 1080mm x 450mm, 3510cm2
• Number of Burners: 1
• Power Rating: 1A|1P+N+E 3 pin 10A plug cordset fitted|220-240Vac|50/60Hz
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 220-240Vac, 50/60Hz, 1A, 1P+N+E
