Overview

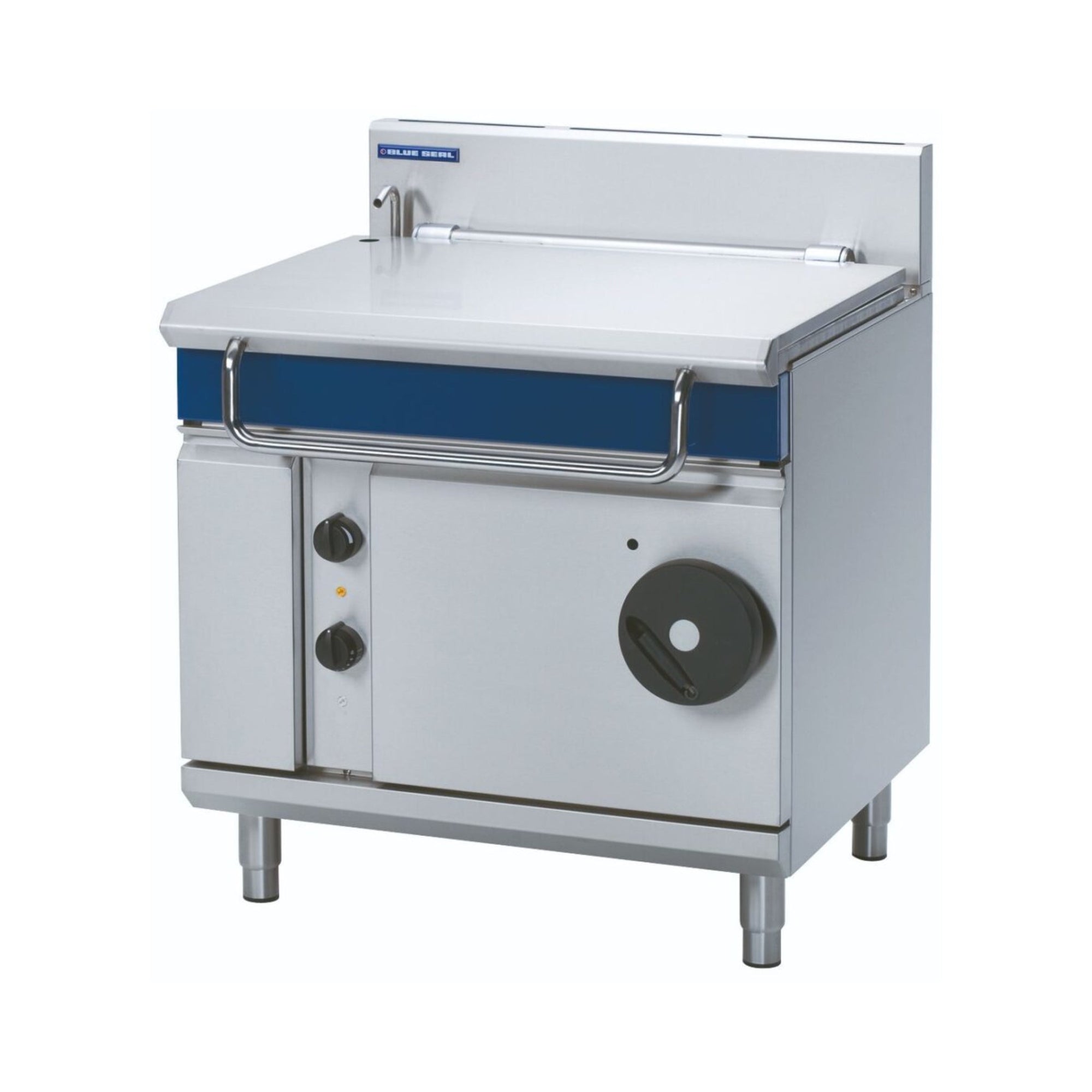

Blue Seal G580-8 Evolution Series 900mm Gas Tilting Bratt Pan

The Blue Seal G580-8 is a 900mm wide, 80-litre capacity gas tilting bratt pan from the Evolution Series, manufactured in New Zealand to commercial kitchen standards. Built around a 75MJ/hr single 6-bar stainless steel burner with electric thermostatic control across a 50 to 320°C range, it delivers consistent, even heat across a 12mm thick stainless steel pan base, making it well suited to high-volume batch cooking of braised meats, sauces, curries, rice, and a broad range of menu items.

Constructed with a full 304 stainless steel pan body of 2mm thickness, a galvanised steel chassis, and heavy-duty stainless steel legs with adjustable feet, the G580-8 is engineered for the demands of busy commercial operations. A manually operated tilting mechanism with fold-away handle and large-capacity pouring spout allow precise portion control and efficient pan emptying, while the heavy-duty lid and hinge system, over-temperature safety cut-out, and straightforward access for cleaning and servicing make this unit a practical, long-term investment in any professional kitchen.

Key Benefits

• The 80-litre capacity and 780mm x 450mm cooking surface (3,510cm²) support large-scale batch cooking, reducing production time during high-demand service periods.
• A 12mm thick stainless steel pan base distributes heat evenly across the entire cooking surface, minimising hot spots and delivering consistent results for delicate and robust dishes alike.
• The 50 to 320°C electric thermostatic burner control provides precise temperature management, giving kitchen staff reliable repeatability across different recipes and service styles.
• Manual tilting mechanism with a fold-away handle and large-capacity pouring spout allows quick, controlled pan emptying directly into gastronorm trays or pots, reducing handling time and spillage risk.
• An over-temperature safety cut-out protects both the equipment and kitchen staff, providing an important layer of operational safety during continuous or unattended cooking.
• Heavy-duty stainless steel legs with adjustable feet allow the unit to be levelled on uneven kitchen floors, ensuring stable operation and accurate liquid handling when tilting.
• Available in both natural gas and LPG configurations, making the unit suitable for a wide range of commercial kitchen setups without modification.
• The 165mm splashback, full stainless steel construction, and galvanised steel chassis combine durability with ease of cleaning, supporting fast turnaround between service periods.
• Designed as part of the Blue Seal Evolution Series, it integrates seamlessly alongside other series equipment for a consistent, professional kitchen suite.

Key Features

• 900mm wide freestanding gas tilting bratt pan, part of the Blue Seal Evolution Series
• 80-litre pan capacity
• 75MJ/hr single 6-bar stainless steel burner
• Electric thermostatic burner control with a temperature range of 50 to 320°C
• 12mm thick stainless steel even-heat pan base for uniform heat distribution
• Full stainless steel pan constructed from 2mm thick 304 stainless steel body
• Manually operated tilting mechanism with fold-away handle
• Large-capacity pouring spout for controlled pan emptying
• Heavy-duty lid and hinge system
• Over-temperature safety cut-out for added operational safety
• Automatic pilot ignition and flame failure device fitted
• Galvanised steel chassis for structural rigidity
• Heavy-duty stainless steel legs with adjustable feet for levelling on uneven floors
• Large, heat-resistant reinforced control knobs for ease of use
• 165mm splashback included
• Cooking surface area: 780mm x 450mm (3,510cm²)
• Electrical connection required for thermostatic controls: 220-240Vac, 50/60Hz, 1A, 1P+N+E
• Gas connection: R 3/4 (BSP) male
• Compatible with natural gas or LPG supply
• Freestanding installation type
• Lid open height: 1,566mm
• Manufactured in New Zealand
• Designed for easy cleaning, installation, and servicing

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 236
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 80
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat with Manual Tilt
• Temperature Control: Thermostat | 90-240°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Cooking Surface Area (mm): 780mm x 450mm, 3510cm2
• Number of Burners: 1
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: 220-240Vac, 50/60Hz, 1A, 1P+N+E
