Overview

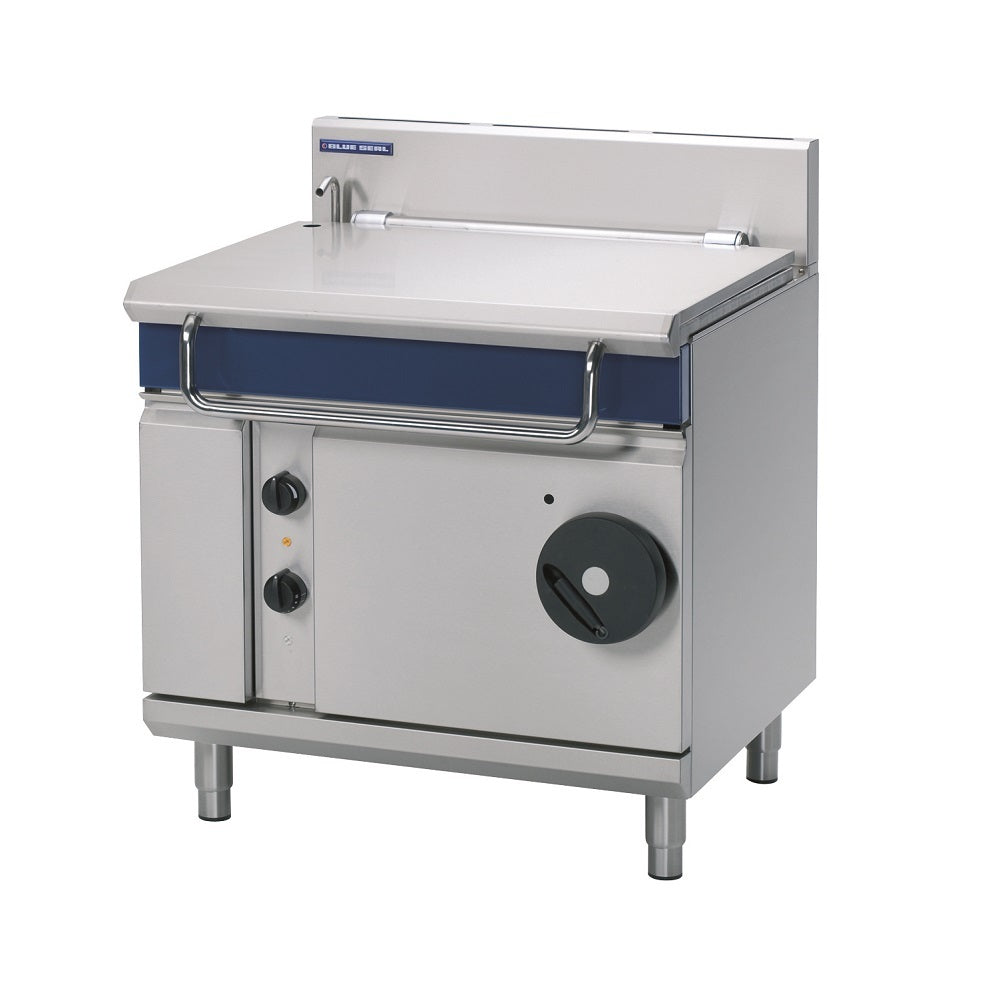

Blue Seal G580-8E Evolution Series 900mm Gas Tilting Bratt Pan

The Blue Seal G580-8E is a 900mm gas tilting bratt pan from the Evolution Series, purpose-built for high-volume commercial kitchens in restaurants, hotels, hospitals, schools, and catering operations. With an 80-litre capacity, a 75MJ/hr single 6-bar stainless steel burner, and a 12mm thick stainless steel even-heat pan base, this unit delivers rapid, consistent heat across the entire cooking surface for frying, braising, boiling, simmering, poaching, steaming, sautéing, and batch cooking applications.

Engineered for durability and ease of use, the G580-8E features an electric power tilting mechanism for safe and controlled product discharge, a heavy-duty lid and hinge system, a large-capacity pouring spout, and a full stainless steel pan body with 2mm construction. The electric thermostatic burner control provides accurate temperature management from 50 to 320°C, while an over-temperature safety cut-out adds an important layer of protection during busy service periods. Available in Natural Gas or LPG configurations to suit existing kitchen infrastructure.

Key Benefits

• 80-litre pan capacity supports large-batch cooking, reducing the number of production cycles during high-demand service periods.
• Electric power tilting mechanism allows operators to safely and effortlessly empty liquids and food with minimal manual handling effort.
• 12mm thick stainless steel even-heat pan base distributes heat uniformly, reducing hot spots and improving cooking consistency across the full pan surface.
• Thermostatic temperature control across a 50-320°C range gives chefs precise command over a wide variety of cooking techniques from gentle simmering to high-heat searing.
• Over-temperature safety cut-out protects both the equipment and food product, adding an important safeguard during continuous commercial operation.
• Automatic pilot ignition with flame failure protection improves operator safety and ensures reliable re-ignition during service.
• Adjustable stainless steel feet and a galvanised steel chassis allow level installation on uneven floors while providing a robust, corrosion-resistant foundation.
• Easy-clean design with rounded internal corners and a fold-away handle simplifies daily cleaning and routine maintenance, reducing downtime between service periods.
• Modular Evolution Series format integrates with other Blue Seal 900mm suite equipment, enabling a cohesive, space-efficient professional kitchen layout.

Key Features

• 900mm wide gas tilting bratt pan with 80-litre cooking capacity
• 75MJ/hr single 6-bar stainless steel burner
• Electric thermostatic burner control with temperature range of 50-320°C
• Electric power tilting mechanism for controlled, safe product discharge
• Full stainless steel pan construction with 2mm pan body thickness
• 12mm thick stainless steel even-heat pan base for uniform heat distribution
• Heavy-duty lid and hinge system
• Large-capacity pouring spout for safe and efficient liquid discharge
• Fold-away handle for compact operation and easy access
• Over-temperature safety cut-out for added operational protection
• Automatic pilot ignition with flame failure protection
• Heat-resistant reinforced large control knobs for easy operation
• Heavy-duty stainless steel legs with adjustable feet for level installation
• Galvanised steel chassis for structural durability
• 3-pin 10A plug cordset fitted for electrical connection
• Height with lid open: 1566mm
• Available in Natural Gas or LPG configuration
• Part of the modular Blue Seal Evolution Series for integrated kitchen suite compatibility

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Shipping Weight: 236
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
