Overview

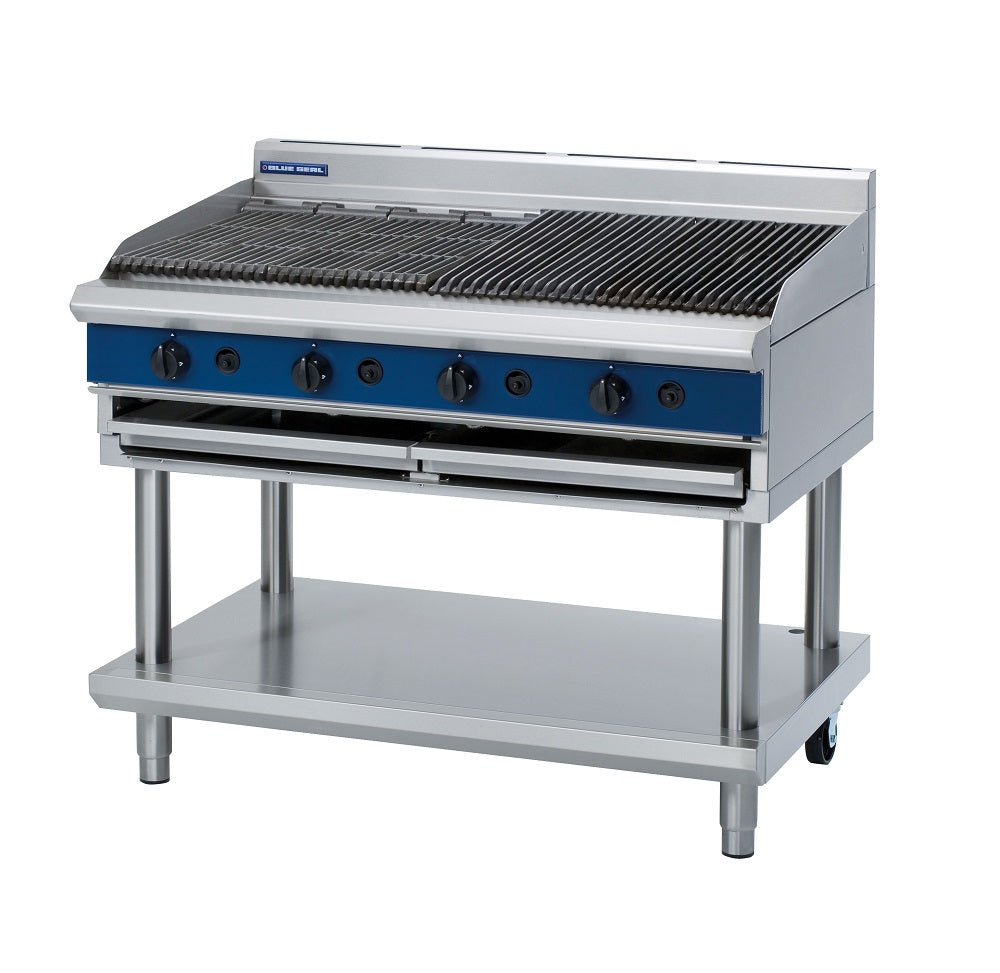

Blue Seal G598-LS Evolution Series 1200mm Gas Chargrill on Leg Stand

The Blue Seal G598-LS Evolution Series 1200mm Gas Chargrill on Leg Stand delivers serious grilling performance for high-volume commercial kitchens. Four powerful 304 stainless steel U-burners generate intense, even radiant heat across a 1200 x 480mm cooking surface, sealing in flavour and producing authentic char marks on meats and vegetables. Built in New Zealand from 304 stainless steel, the unit is available in both Natural Gas and LPG configurations.

Engineered for efficiency and ease of use, the G598-LS features reversible heavy-duty cast iron top grates with a grooved fin design that can be positioned level or inclined. The inclined configuration channels grease away from the heat source into a front collection channel, significantly reducing flare-ups. Drop-on 300mm and 450mm griddle sections can be interchanged with the grates for added cooking versatility, while lift-out radiants, burners and grease tray baffles make cleaning and servicing straightforward.

Key Benefits

• Four thermostatic burners at 33 MJ/hr each allow precise, independent temperature control across the full 1200mm cooking surface, supporting varied menu items simultaneously.
• Reversible cast iron grates with grooved fin design reduce flare-ups and direct grease into a front collection channel, keeping the cooking environment cleaner and safer.
• Interchangeable drop-on 300mm and 450mm griddle sections expand cooking flexibility without requiring additional equipment.
• Full pilot and per-burner flame failure protection automatically shuts off gas if a flame extinguishes, protecting staff and kitchen safety standards.
• Lift-out radiants, burners and grease tray baffles minimise downtime during cleaning and routine servicing, keeping the unit operating at peak performance.
• Heavy-duty reinforced control knobs are built to withstand the demands of continuous commercial use without wearing or slipping.
• Freestanding leg stand design with a suite-matching undershelf and 165mm splashback integrates cleanly into a modular kitchen line-up.
• Available in Natural Gas or LPG, offering straightforward installation flexibility across different commercial kitchen setups.

Key Features

• 1200mm wide gas chargrill on freestanding leg stand
• 4 x 33 MJ/hr thermostatic burner system with independent control per burner
• 304 stainless steel U-burners with radiant elements for intense, even heat
• Reversible heavy-duty cast iron top grates, positionable level or inclined
• Grooved fin grate design channels grease into a front collection channel to minimise flare-ups
• Interchangeable drop-on 300mm and 450mm griddle sections compatible with grate positions
• Full pilot and flame failure protection per individual burner
• Lift-out radiants, burners and grease tray baffles for easy access cleaning and servicing
• Heavy-duty reinforced control knobs for durability under continuous commercial use
• 1200 x 480mm cooking surface area
• 165mm splashback included
• Suite-matching undershelf included
• 304 stainless steel construction throughout
• Available in Natural Gas or LPG — specify gas type at time of order
• R 3/4 (BSP) male gas connection
• Freestanding installation
• Manufactured in New Zealand

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 528.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 186
• Packed Width (mm): 945.0
• Packed Height (mm): 1225.0
• Packed Depth (mm): 945.0
• Shipping Cubic: 1.093956000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 1200 x 480
• Number of Burners: 4
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
