Overview

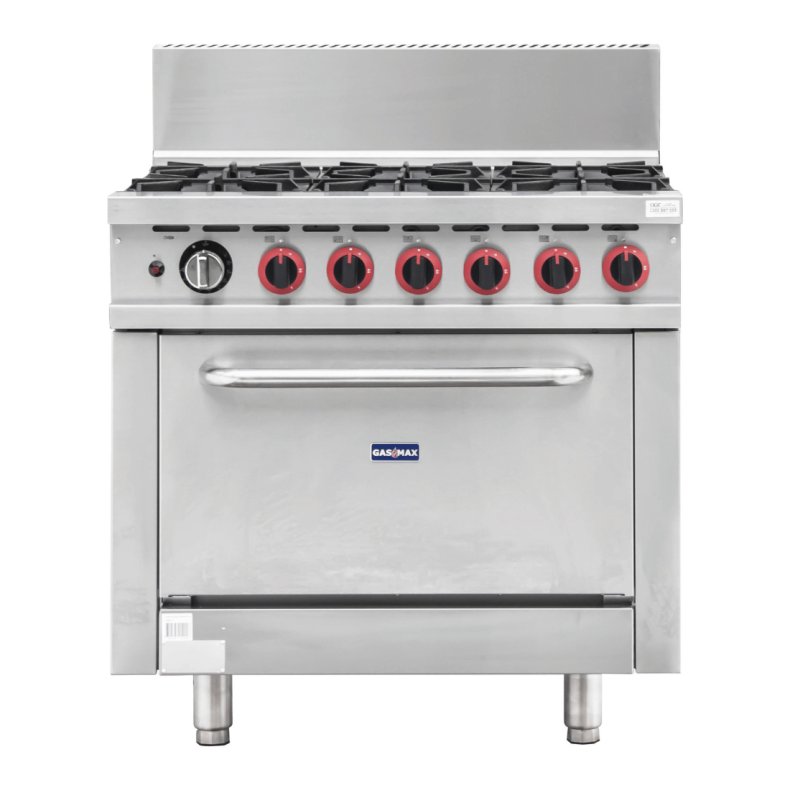

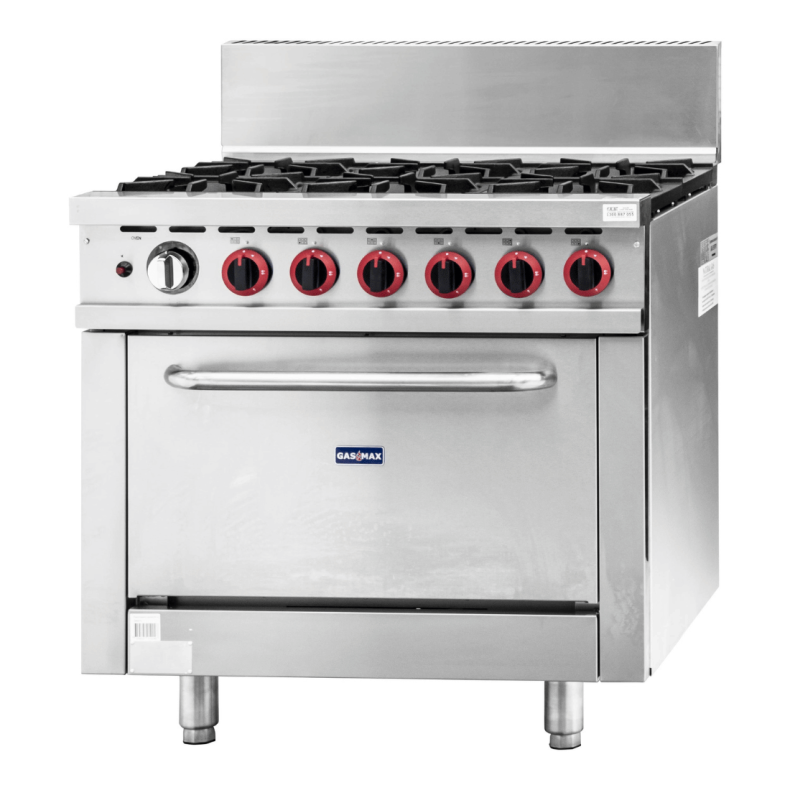

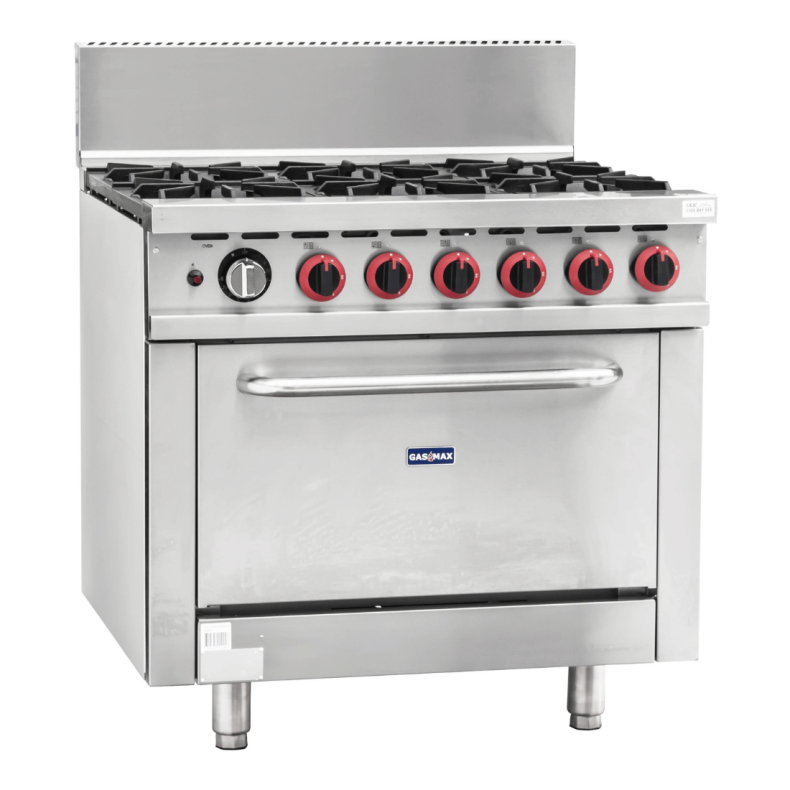

Gasmax GBS6TS 6 Burner Gas Range With Oven and Flame Failure

The Gasmax GBS6TS is a heavy-duty commercial gas range combining six powerful cast iron open burners with a thermostat-controlled gas oven, purpose-built for the rigorous demands of busy restaurants, cafés, and catering operations. Constructed from stainless steel with a welded frame for maximum rigidity, it delivers consistent, high-output performance across every service.

Each of the six burners produces 38MJ of heat, and the oven features a U-shaped burner paired with a thermostat that can be set anywhere between 100°C and 300°C, enabling precise and even cooking results. Integrated flame failure safety devices on both the burners and the oven, along with a thermal coupling safety valve, provide reliable protection and compliance with commercial kitchen safety requirements.

Key Benefits

• Six 38MJ burners deliver powerful, consistent heat output to maintain productivity during peak service periods.
• Flame failure control valves on the cooktop and a thermal coupling safety valve on the oven automatically cut gas supply if a flame is extinguished, reducing risk in the kitchen.
• The oven thermostat, spanning the full range from 100°C up to 300°C, gives operators precise temperature management for versatile baking and roasting applications.
• Cast iron open burners and 12 x 12 inch (30 x 30 cm) cast iron grates are designed with holes less likely to block from food waste, reducing downtime and cleaning effort.
• Burners can be fully dismantled for thorough cleaning, while the pull-out crumb tray with an angled front handle makes routine maintenance fast and straightforward.
• The welded frame structure and adjustable heavy-duty legs ensure exceptional stability on uneven floors, with a kick plate at the base providing easy access for servicing.
• Stainless steel construction throughout, including the fully insulated oven door and oven handle, supports hygienic food preparation and long-term durability in commercial environments.
• A continuous pilot and anti-clogging pilot cover under the grate ensure reliable ignition and consistent burner operation throughout service.

Key Features

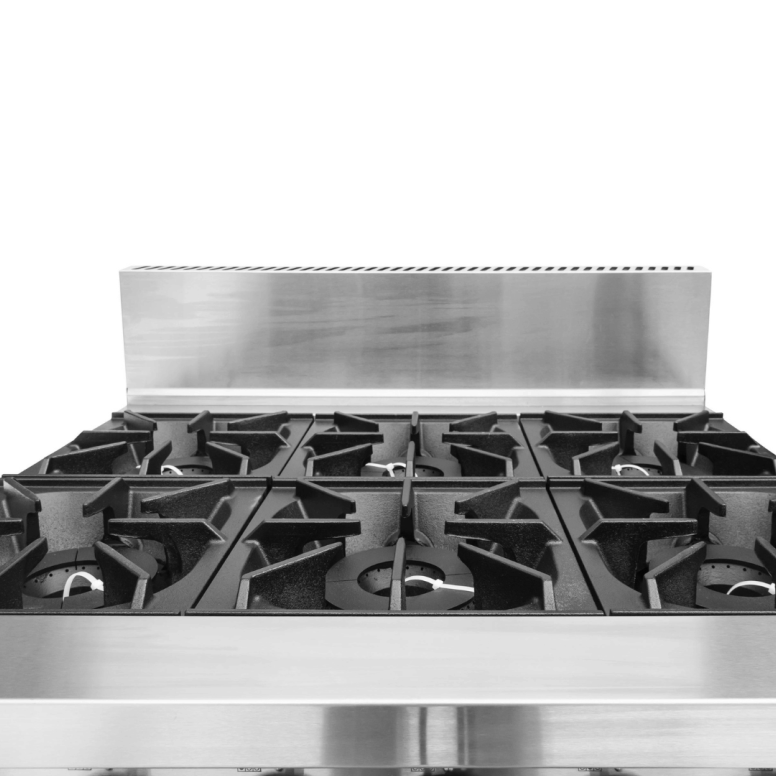

• Six heavy-duty cast iron open burners, each rated at 38MJ for a combined output of 258MJ/h
• Flame failure control valve on each burner automatically shuts off gas if the flame goes out
• Continuous pilot ignition with anti-clogging pilot cover positioned under the grate

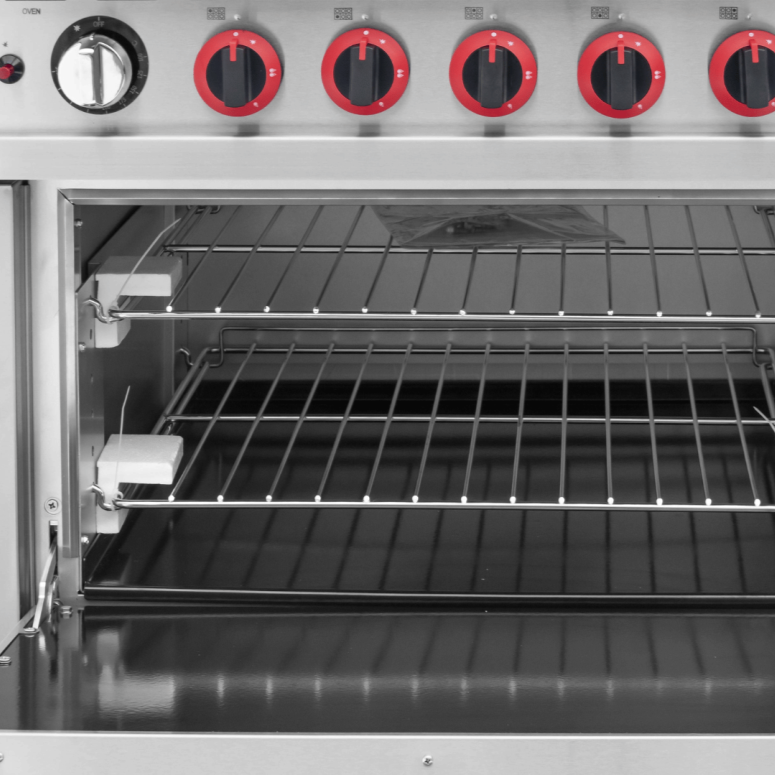

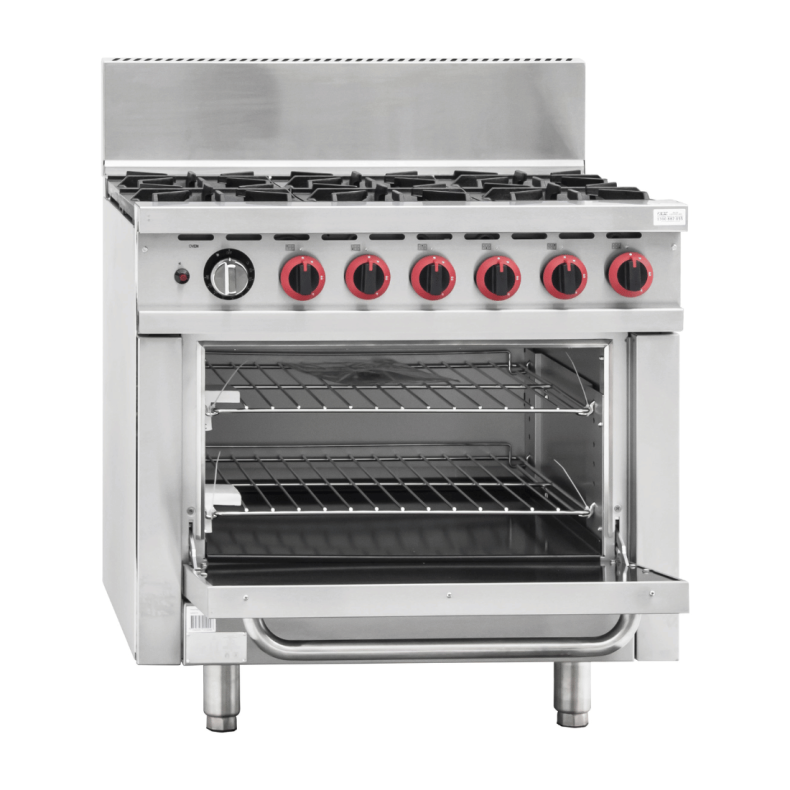

• Thermostat-controlled oven with the dial calibrated across a 100°C to 300°C cooking range, paired with a U-shaped burner for efficient, even heat distribution during baking and roasting
• Thermal coupling safety valve on the oven as an additional safety measure
• Fully insulated stainless steel oven door with a stainless steel handle
• Stainless steel construction throughout with a welded frame for stability and longevity
• 12 x 12 inch (30 x 30 cm) cast iron grates
• Burner holes engineered to resist blockage from food waste
• Burners can be fully dismantled for thorough cleaning
• Pull-out crumb tray with an angled front handle for easy removal and cleaning
• 0.35mm thick thermocouple rated to withstand temperatures up to 1400°C
• Adjustable heavy-duty legs to accommodate uneven kitchen floors
• Kick plate at the base for straightforward access during servicing
• 3/4 inch rear gas connection, suitable for natural gas supply
• Natural gas fuel type
• Warranty: 2 Years Parts and Labour, plus an additional 2 Years Parts coverage when the product is registered no later than 14 days from the date of invoice

Specifications

• Width (mm): 914
• Depth (mm): 855
• Height (mm): 1128
• Weight (kg): 220
• Packed Width (mm): 1030
• Packed Depth (mm): 1040
• Packed Height (mm): 890
• Power Delivery: 258MJ/h
• Power (kW): 258
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
• Fuel Type: Gas
• Number of Burners: 6
