Overview

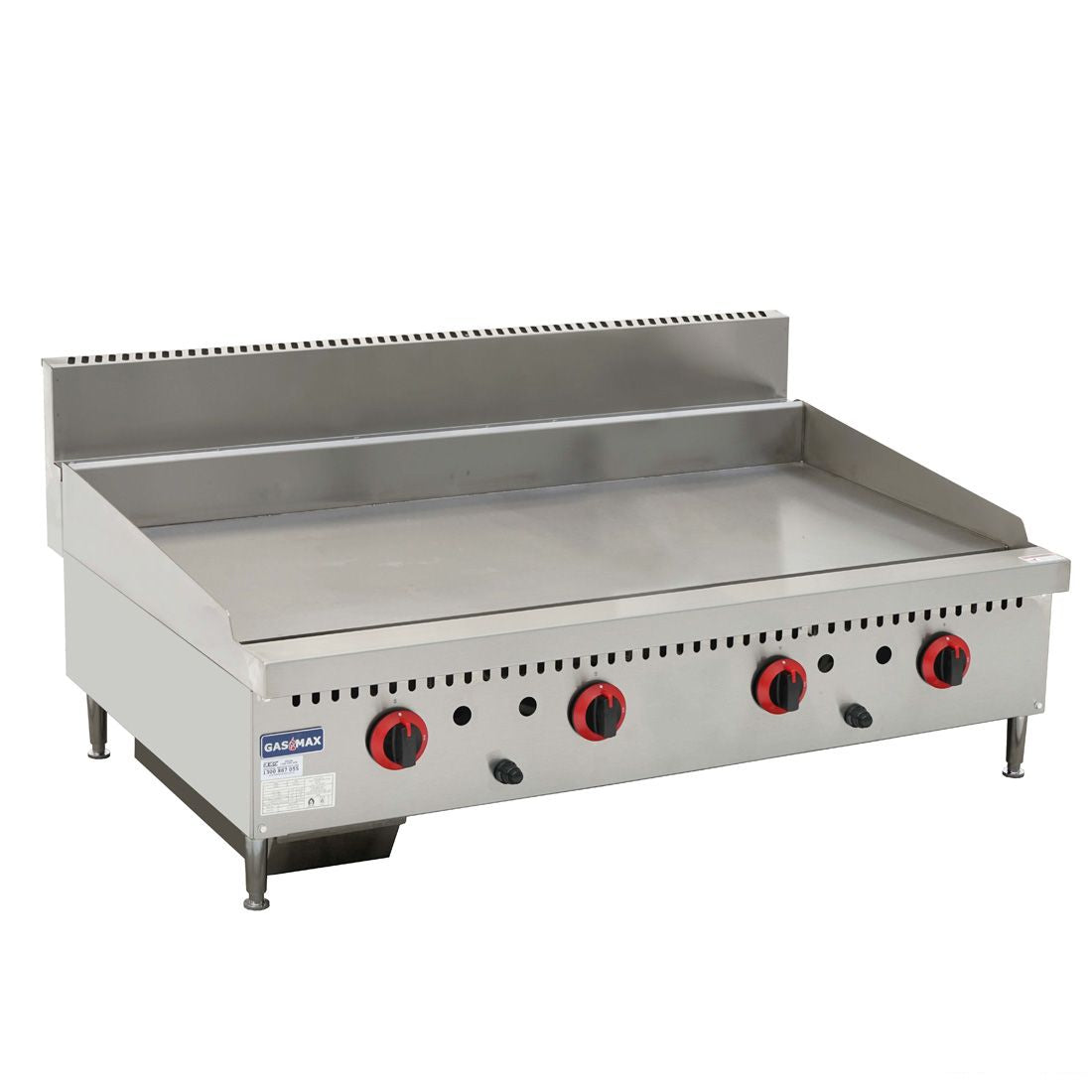

Gasmax GG-48LPG Four Burner LPG Griddle Top

The Gasmax GG-48LPG is a heavy-duty commercial LPG griddle top built for demanding kitchen environments. Spanning 1200mm wide, it features four independent U-shape steel burners delivering a combined output of 132MJ/h, with each burner rated at 30MJ/h for consistent, zone-controlled heat across the full cooking surface. The 22mm mild steel plate retains and distributes heat evenly, making it well suited to high-volume cooking of steaks, burgers, bacon, eggs, and pancakes.

Constructed throughout in stainless steel, the GG-48LPG is designed for both hygiene and longevity. Safety features include a flame failure system on every burner, while practical details such as a front grease channel, stainless steel oil collector, and durable brass control valves make day-to-day operation and cleaning straightforward. The unit offers field-convertible gas connections and is backed by a strong registered warranty, making it a reliable long-term investment for restaurants, cafes, and catering operations.

Key Benefits

• Four independently controlled burners allow chefs to create multiple heat zones simultaneously, improving cooking flexibility and efficiency during busy service.
• The 22mm heavy-duty mild steel plate retains heat effectively, delivering consistent cooking results across the full 1200mm surface.
• Each burner outputs 30MJ/h for a total of 132MJ/h, providing substantial cooking power to handle high-volume throughput.
• A front grease channel and stainless steel oil collector at the base simplify cleaning between and after service, supporting fast kitchen turnaround.
• The flame failure safety system on every burner shuts off gas automatically if the flame is extinguished, reducing risk in a busy commercial environment.
• Field-convertible gas connection makes installation and future fuel type changes straightforward without requiring specialist workshop work.
• Adjustable heavy-duty legs allow the unit to be levelled on uneven floors, ensuring stable operation and a flat cooking surface.
• Stainless steel splash guards on three sides and a rear splashback protect surrounding surfaces and simplify wall-area cleaning.
• Registered warranty cover of two years parts and labour plus a further two years parts only provides extended protection and peace of mind.

Key Features

• Four heavy-duty steel U-shape burners, each rated at 30MJ/h, totalling 132MJ/h combined output
• 1200mm wide cooking surface with a 22mm heavy-duty mild steel griddle plate
• Independent temperature controls on each burner for flexible multi-zone cooking
• Flame failure system on every burner for added safety
• Front-mounted grease channel directs runoff away from the cooking surface
• Stainless steel oil collector positioned at the base for easy grease removal
• Stainless steel construction throughout for durability and hygiene
• Stainless steel splashback and three-sided splash guard protection
• Durable brass control valves for reliable, long-lasting temperature adjustment
• Field-convertible gas connection for on-site fuel type changeover
• 3/4-inch rear gas connection
• Adjustable heavy-duty legs to level the unit on uneven surfaces
• LPG model; conversion option kit not available in New Zealand
• 2 years parts and labour plus 2 years parts only warranty when product is registered within 14 days of invoice

Specifications

• Width (mm): 1200
• Depth (mm): 824
• Height (mm): 546
• Weight (kg): 187
• Packed Width (mm): 1335
• Packed Depth (mm): 890
• Packed Height (mm): 520
• Shipping Weight: 152
• Power Delivery: 132MJ/h
• Power (kW): 132
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
