Overview

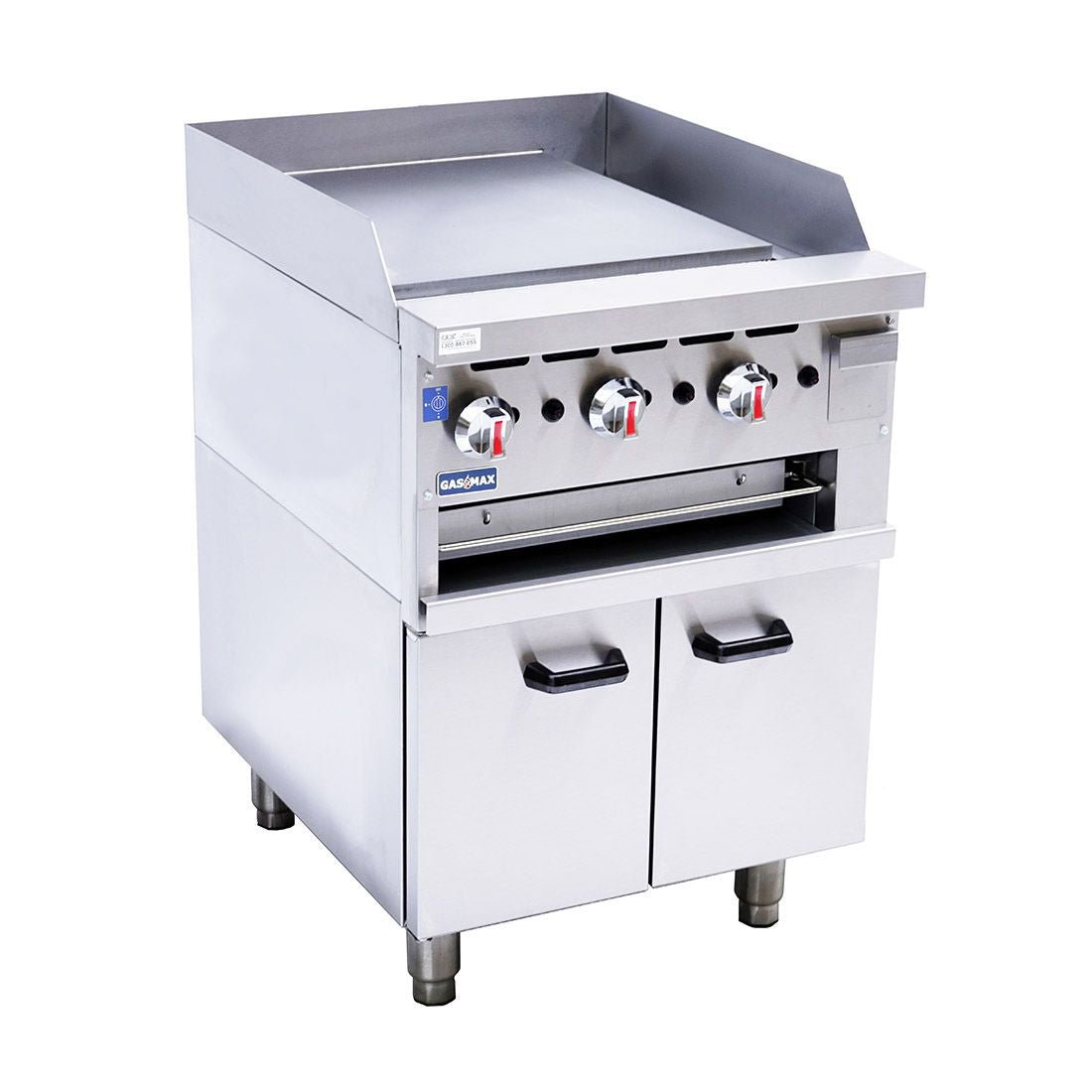

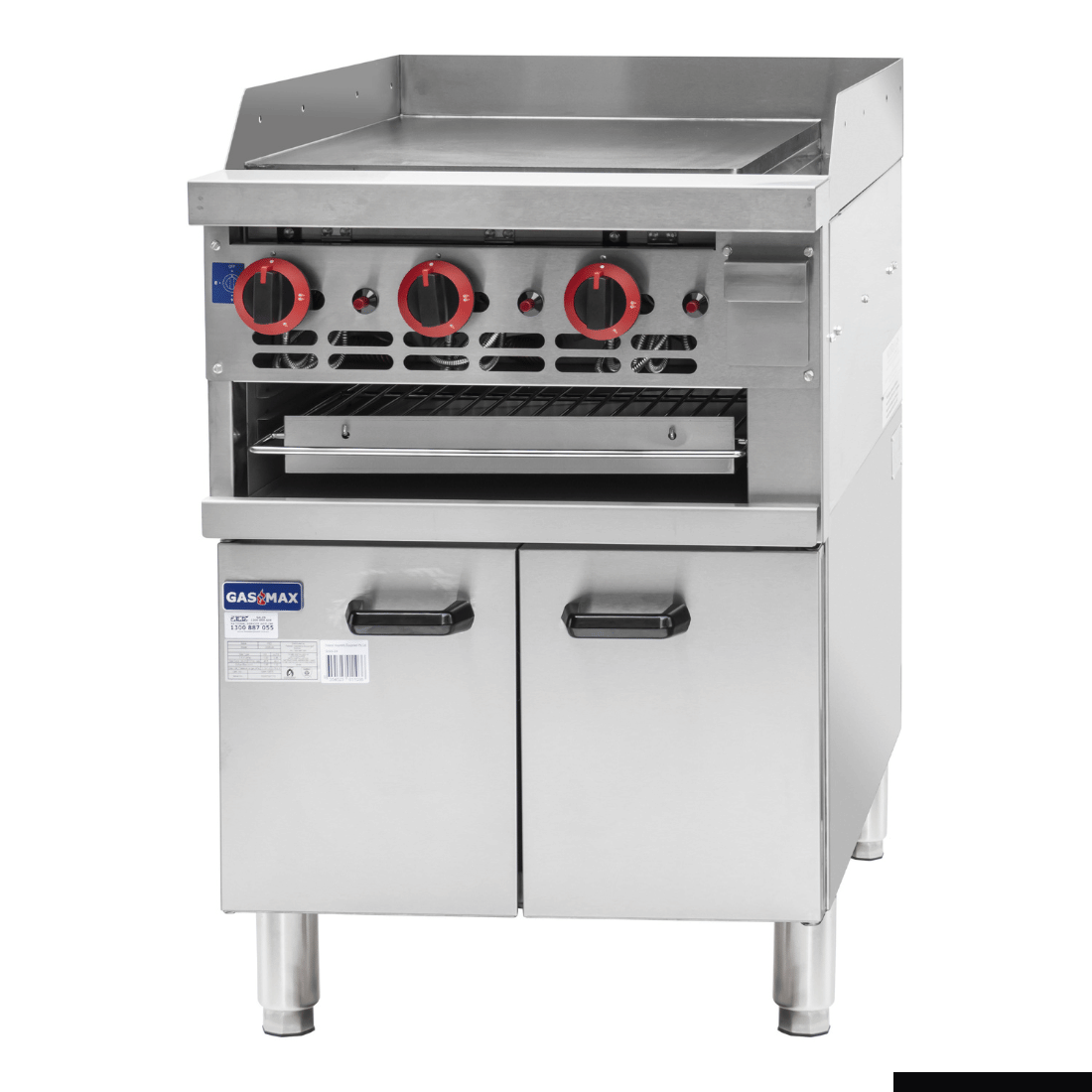

Gasmax GGS-24 Gas Griddle and Gas Toaster with Cabinet

The Gasmax GGS-24 is a commercial-grade gas griddle and gas toaster combination unit built on a fully enclosed cabinet base, designed to handle the demands of busy café, restaurant, and catering kitchen environments. Three cast iron open burners deliver a total output of 45MJ/h across a 19mm heavy-duty mild steel cooking plate, while an 8.25-inch high broiler opening with a sliding built-in rack provides simultaneous toasting capacity for buns, breads, and similar items.

Constructed with a stainless steel front and galvanised sides over a welded frame structure, the GGS-24 is built for long-term stability and hygiene. A lower cabinet with double doors offers practical on-station storage, and features such as piezo ignition, continuous pilot, flame failure control on every burner, and field-convertible natural gas or LP gas operation make this unit straightforward to install, start, and run safely in any commercial setting.

Key Benefits

• Simultaneous griddle and toasting operation maximises throughput during high-volume breakfast, lunch, and burger service.
• Three independently controlled burners allow different cooking zones to be managed at separate temperatures, improving precision and reducing waste.
• Field conversion between natural gas and LP gas means the unit can be installed across a wide range of venues without specialist modification.
• Flame failure control on each burner automatically cuts gas if a flame is extinguished, protecting staff and meeting commercial kitchen safety requirements.
• Piezo ignition with continuous pilot ensures fast, reliable startup at the beginning of every service without the need for matches or lighters.
• The pull-out crumb tray and large grease collector simplify end-of-service cleaning, reducing downtime between shifts.
• Adjustable heavy-duty legs allow the unit to be levelled on uneven floors, maintaining a stable and safe cooking surface.
• A welded frame structure and 19mm mild steel cooking plate provide the rigidity and thermal mass needed to sustain consistent cooking performance under continuous load.
• A four-year warranty package (2 years parts and labour plus 2 years parts only for products registered within 14 days of invoice) delivers strong long-term coverage and peace of mind.

Key Features

• 3 cast iron open burners, each rated at 14.8MJ/h, total output 45MJ/h

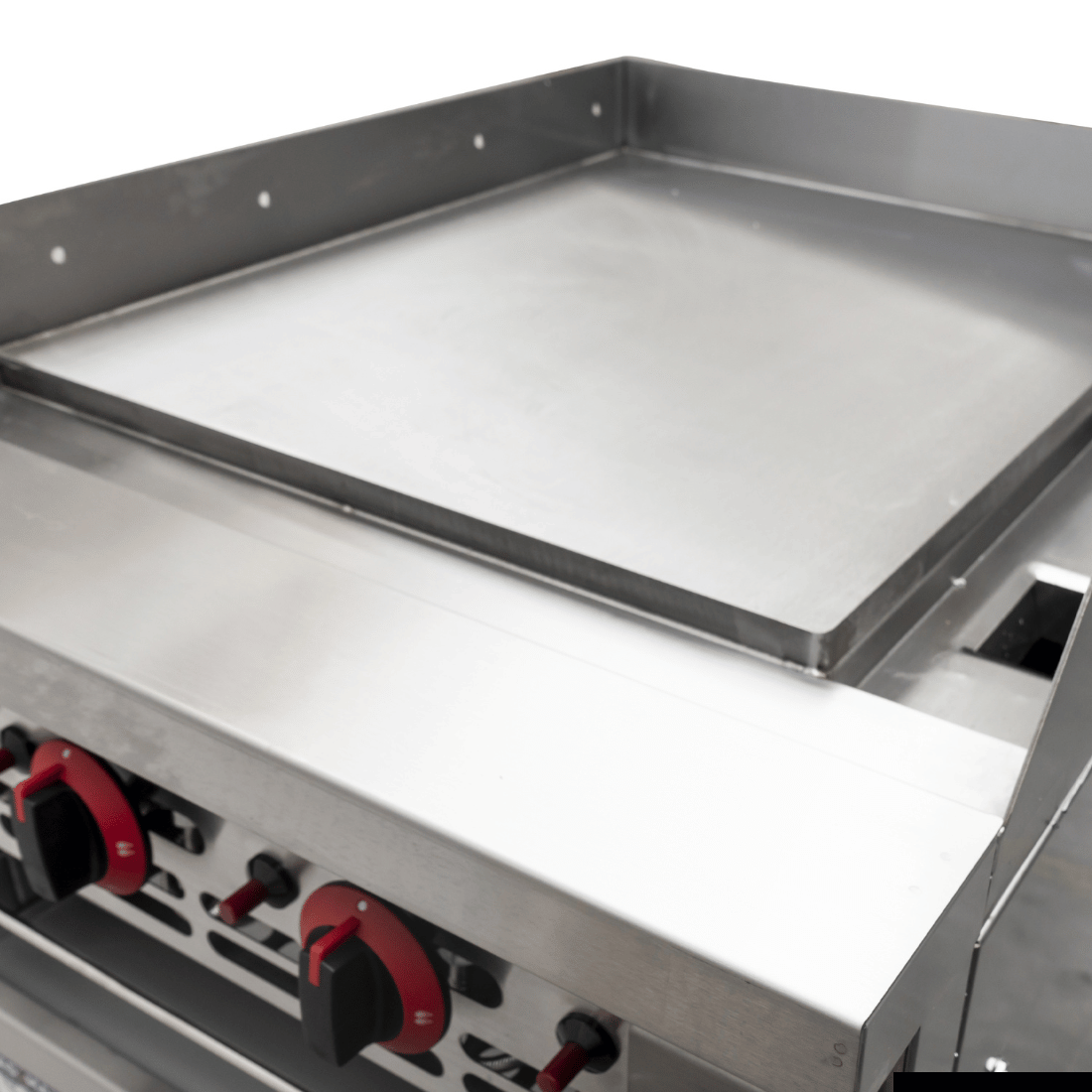

• 19mm heavy-duty mild steel griddle plate for high thermal mass and even heat retention

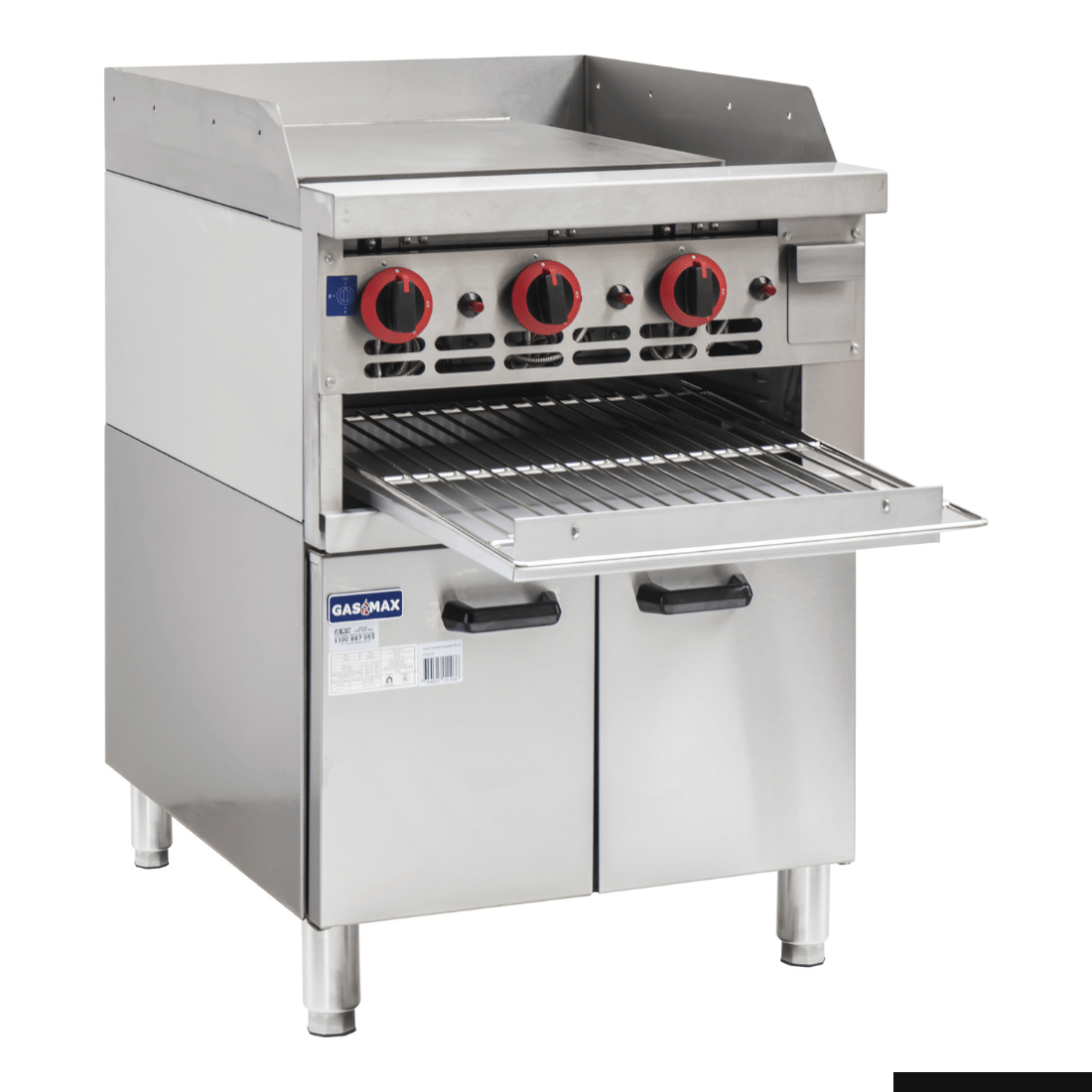

• 8.25-inch high broiler opening with a sliding built-in rack for toasting buns, breads, and similar items
• Flame failure control fitted to each individual burner
• Piezo igniter for easy pilot startup
• Continuous pilot system
• Stainless steel front with galvanised sides
• Welded frame structure for rigidity and long-term stability
• Lower cabinet with double doors for on-station storage
• Pull-out crumb tray with angled front handle for easy removal and cleaning
• Large grease collector to manage cooking runoff
• Adjustable heavy-duty legs for levelling on uneven surfaces
• Bakelite handle

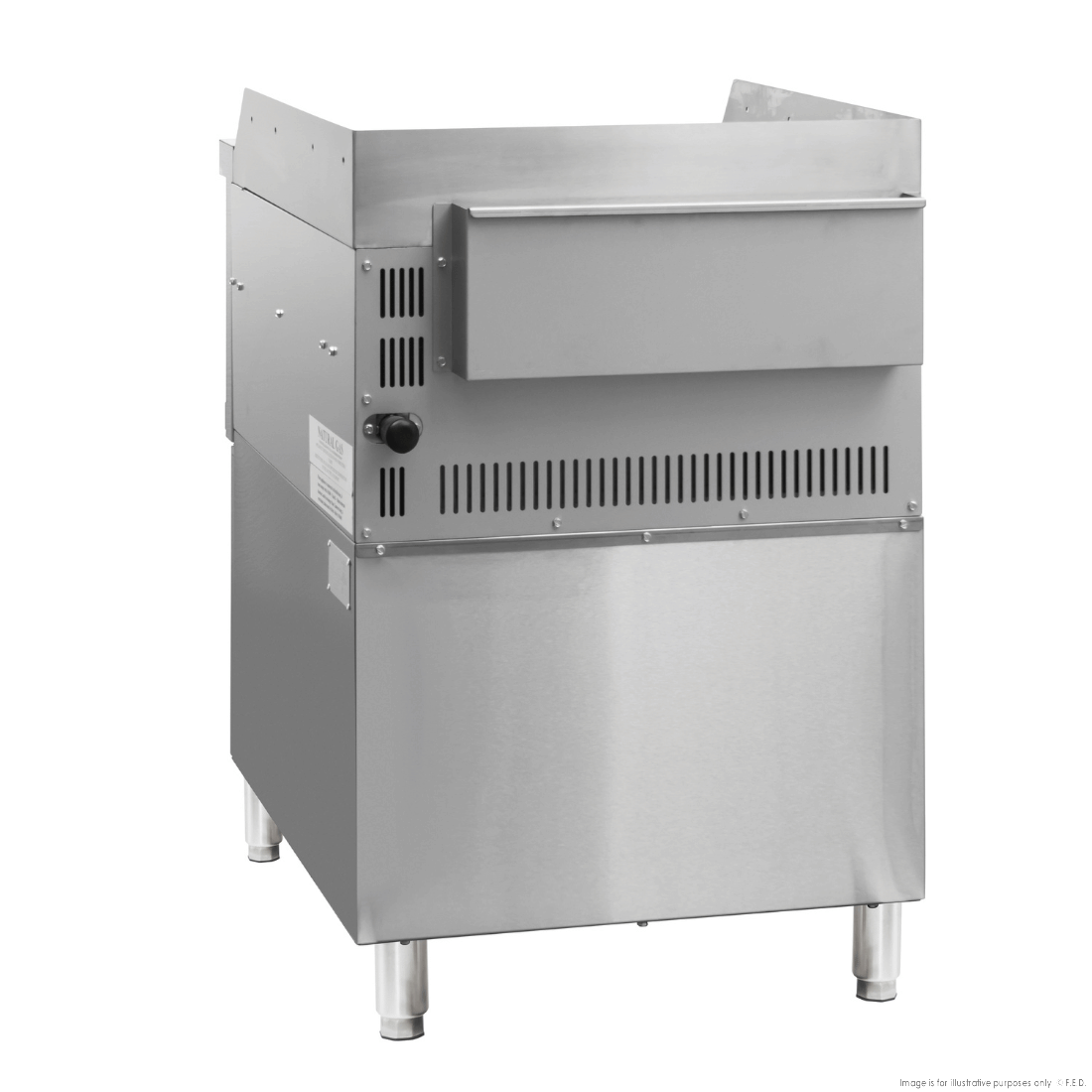

• 3/4-inch NPT rear gas connection
• Compatible with natural gas and LP gas; field conversion available
• 2 Years Parts and Labour plus 2 Years Parts Only warranty for products registered within 14 days of invoice

Specifications

• Width (mm): 610
• Depth (mm): 815
• Height (mm): 970
• Weight (kg): 174
• Packed Width (mm): 610
• Packed Depth (mm): 815
• Packed Height (mm): 965
• Shipping Weight: 126
• Power Delivery: 45MJ/h
• Power (kW): 45
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
