Overview

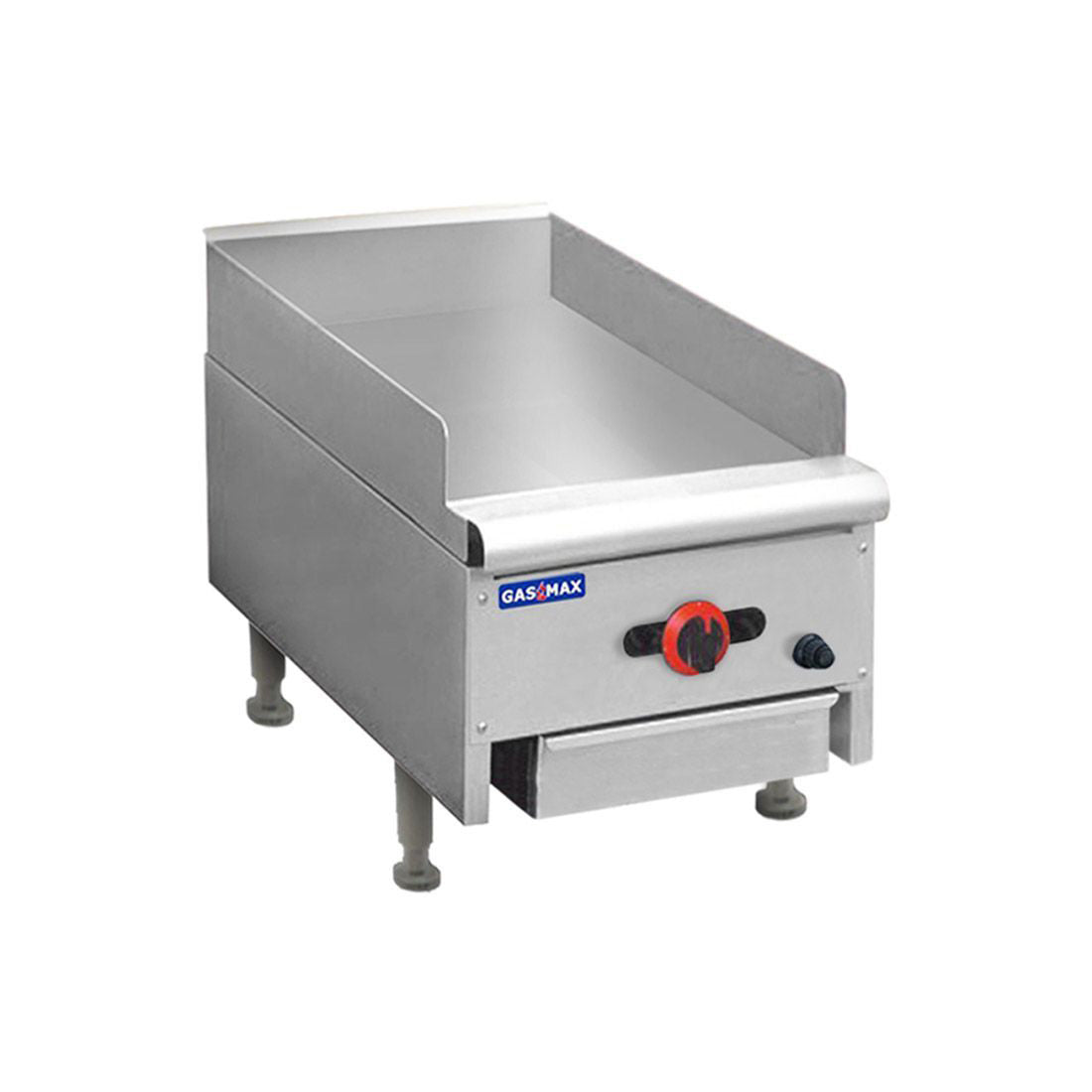

Gasmax RGT-16E Single Burner Griddle Top with Removable Plate

The Gasmax RGT-16E is a heavy-duty commercial griddle top built for high-volume breakfast, burger and short-order cooking. At the heart of the unit is a 20mm mild steel cooking plate paired with a cast iron H-shape burner rated at 28MJ/h, delivering consistent, even heat across the entire surface for reliable results service after service.

Constructed with stainless steel front and sides, the RGT-16E is designed to withstand the rigours of a busy commercial kitchen while remaining easy to maintain. The removable plate, bottom-mounted oil collector and straightforward controls make cleaning and daily operation straightforward, and the unit is compatible with the QR-16-SE stand for a fully integrated workstation setup.

Key Benefits

• Even heat distribution across the full cooking surface reduces hot spots and ensures consistent cook quality for high-volume orders.
• The 20mm heavy-duty mild steel plate retains heat effectively, recovering quickly between loads to keep service moving.
• A flame failure safety system automatically shuts off the gas supply if the flame is extinguished, protecting staff and the kitchen environment.
• One control zone per 12 inches of plate width gives operators precise temperature management across the cooking surface.
• Built-in ignition allows fast, reliable start-up without the need for a separate lighter, reducing prep time.
• The removable plate and bottom oil collector simplify end-of-service cleaning, helping maintain food safety standards and extending equipment life.
• Stainless steel adjustable heavy-duty legs provide stability on uneven floors and allow height adjustment to suit different workstation configurations.
• A rear 3/4-inch gas connection keeps the front and sides clear, simplifying installation and bench or stand placement.
• Compatible with the Gasmax QR-16-SE stand, enabling a fully integrated, space-efficient cooking station.

Key Features

• Single burner griddle top with removable cooking plate
• 20mm heavy-duty mild steel cooking plate for superior heat retention and durability
• Cast iron H-shape burner designed for uniform heat distribution across the plate
• Gas rating: 28MJ/h (natural gas)
• One temperature control per 12 inches of cooking surface
• Flame failure system automatically cuts gas supply if flame is lost
• Built-in ignition for quick and easy start-up
• Stainless steel front and sides for corrosion resistance and a professional finish
• Stainless steel adjustable heavy-duty legs for stability and height flexibility
• Oil collector located at the base to capture run-off and simplify cleaning
• 3/4-inch rear gas connection for neat, accessible installation
• Compatible stand: Gasmax QR-16-SE
• LPG model and LPG option kit not available in New Zealand
• 2 Years Parts and Labour warranty plus 2 Years Parts Only warranty when product is registered within 14 days of invoice

Specifications

• Width (mm): 404
• Depth (mm): 840
• Height (mm): 429
• Weight (kg): 81
• Packed Width (mm): 410
• Packed Depth (mm): 870
• Packed Height (mm): 370
• Shipping Weight: 69
• Power Delivery: 28MJ/h
• Power (kW): 28
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
