Overview

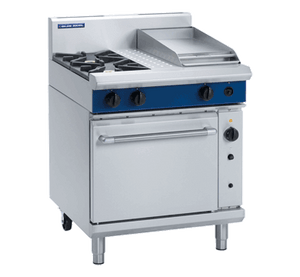

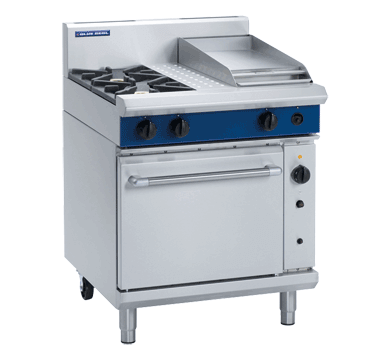

Blue Seal GE505C Evolution Series 750mm Gas Range Electric Static Oven

The Blue Seal GE505C Evolution Series is a 750mm commercial range combining a two-burner gas cooktop with a 300mm right-hand griddle over a 1/1 GN electric static oven. Rated at a total gas output of 76 MJ/hr (21.1 kW), this unit is built for demanding commercial kitchen environments where consistent, high-volume cooking is required across multiple cooking methods simultaneously.

Constructed with a heavy-duty stainless steel exterior, fully welded and vitreous enamelled oven liner, and removable cast iron burners, the GE505C is engineered for durability, straightforward cleaning, and ease of servicing. Available in both Natural Gas and LPG configurations, it suits a wide range of commercial installations and can be ordered in the standard finish or in black upon request.

Key Benefits

• Simultaneous cooktop, griddle, and oven operation maximises output from a compact 750mm footprint, reducing the need for multiple appliances.
• The 1/1 GN electric static oven with 50-320°C thermostatic control delivers precise, even heat for consistent baking and roasting results every service.
• Flame failure protection on all burners automatically cuts gas supply if any flame is extinguished, protecting staff and complying with commercial kitchen safety requirements.
• Removable cast iron burners and vitreous enamel pot stands simplify daily cleaning and reduce downtime during service.
• Cool-touch stainless steel door handle minimises burn risk when accessing the oven during busy service periods.
• Adjustable feet combined with two additional rollers allow straightforward levelling during installation and easy repositioning when needed.
• Available in Natural Gas or LPG, providing flexibility to suit the gas supply available at your venue.
• Heavy-duty reinforced control knobs and a drop-down oven door with welded frame are built to withstand the rigours of continuous commercial use.

Key Features

• 2 x 28 MJ/hr open burners on the gas cooktop
• 1 x 20 MJ/hr griddle burner powering the 300mm griddle
• Total gas rating: 76 MJ/hr (21.1 kW)
• 300mm griddle positioned on the right-hand side as standard
• 1/1 GN capacity electric static oven
• Oven thermostatic control range: 50-320°C
• Electrical supply: 230-240 V AC, 50/60 Hz, 1P+N+E, 23 A
• Flame failure protection on all burners
• Heavy-duty stainless steel exterior finish
• Removable heavy-duty cast iron burners
• Vitreous enamel pot stands
• Fully welded and vitreous enamelled oven liner
• Heavy-duty reinforced control knobs
• Drop-down oven door with welded frame
• Cool-touch stainless steel oven door handle
• Adjustable feet and 2 additional rollers for levelling and mobility
• Designed for easy cleaning, installation, and servicing
• Available in Natural Gas or LPG — specify at time of ordering
• Overall dimensions: 750 mm W x 812 mm D x 915 mm H (splashback height 1085 mm)

Specifications

• Width (mm): 750
• Depth (mm): 805
• Height (mm): 1085
• Weight (kg): 340.0
• Shipping Weight: 250
• Packed Width (mm): 795.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.868021000m3
