Overview

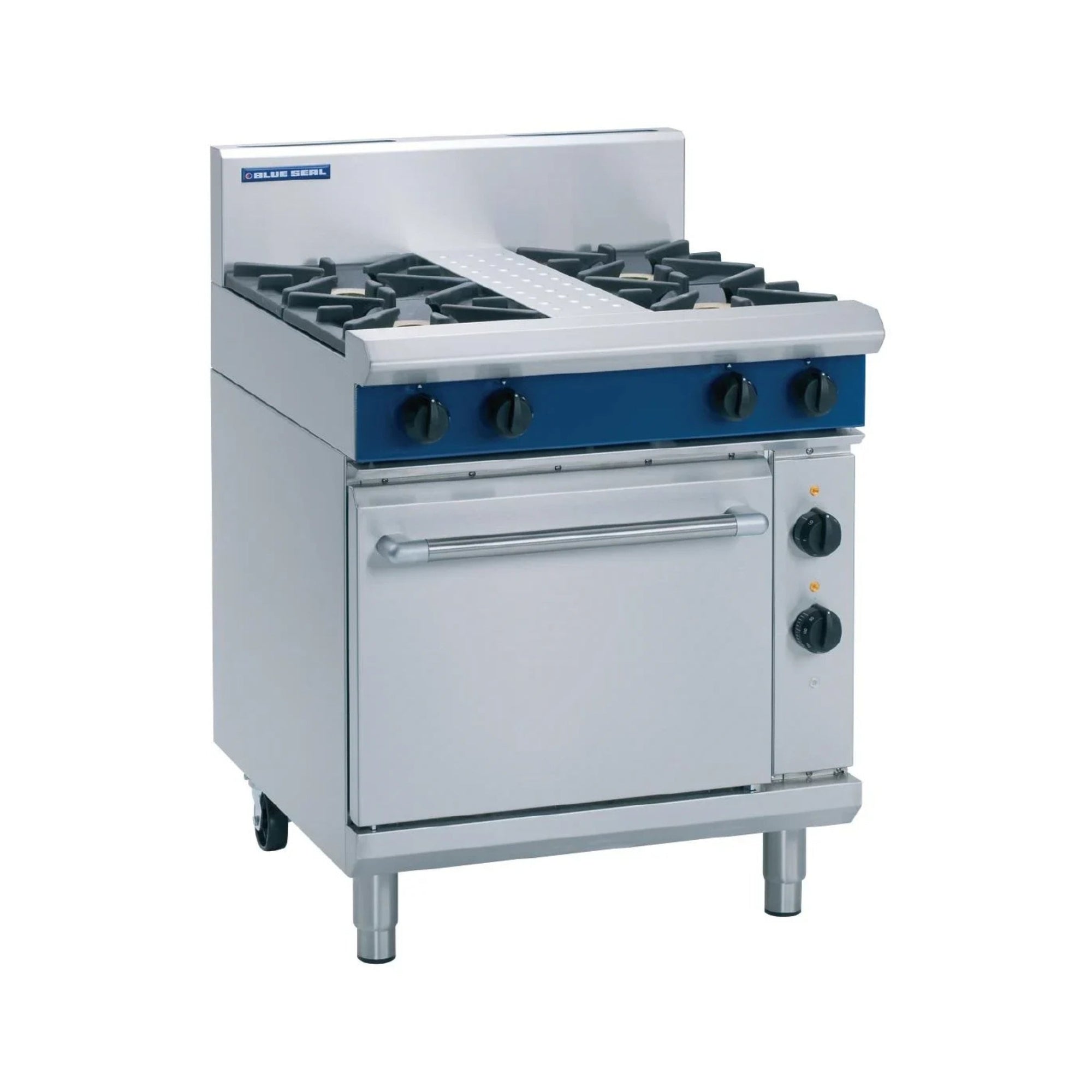

Blue Seal GE505D Evolution Series 750mm Gas Range Electric Static Oven

The Blue Seal GE505D is a 750mm hybrid commercial cooking unit from the Evolution Series, combining a four-burner gas cooktop with a GN 1/1 electric static oven in a single freestanding footprint. Manufactured in New Zealand from heavy-duty 304 stainless steel, it is built to withstand the rigours of high-volume restaurants, cafés, and catering operations, and is available in both Natural Gas and LPG configurations.

The gas cooktop delivers four open burners rated at 28MJ/hr each, offering rapid heat and precise flame control for boiling, sautéing, and simmering, while the integrated electric static oven provides consistent, even heat for baking, roasting, and finishing. Thermostatic oven control across a 50–320°C range, flame failure protection on every burner, and a fully vitreous enamelled oven liner make this unit practical, safe, and straightforward to maintain in daily commercial use.

Key Benefits

• Multi-zone hybrid cooking allows gas cooktop tasks and electric oven baking to run simultaneously, improving throughput during busy service.
• Four 28MJ/hr open burners deliver rapid heat response and precise flame adjustment for a wide variety of stovetop cooking techniques.
• The electric static oven distributes heat evenly across its GN 1/1 cavity, producing consistent results for batch baking and roasting.
• Thermostatic control from 50 to 320°C gives chefs accurate temperature management for delicate and high-heat oven applications alike.
• Flame failure protection on all burners automatically cuts gas flow if a flame is extinguished, enhancing kitchen safety.
• Removable cast iron burners and vitreous enamel pot stands simplify deep cleaning and allow individual components to be replaced without taking the unit out of service.
• Adjustable feet and two rear rollers make levelling and repositioning straightforward, supporting flexible kitchen layouts.
• The fully welded, vitreous enamelled oven liner resists grease absorption and wipes clean quickly, reducing downtime between services.
• Modular Evolution Series design integrates seamlessly with other Blue Seal 750mm suite equipment for cohesive commercial kitchen buildouts.

Key Features

• 750mm wide freestanding unit combining a gas cooktop range with an integrated electric static oven
• Four open burners, each rated at 28MJ/hr, with removable heavy-duty cast iron burner heads
• Vitreous enamel pot stands that are removable for cleaning and replacement
• Flame failure protection fitted to every burner
• GN 1/1 electric static oven with fully welded, vitreous enamelled interior liner
• Oven thermostat with a 50–320°C temperature range
• Two oven shelves included
• Drop-down oven door with a welded frame
• Cool-touch stainless steel oven door handle
• Heavy-duty reinforced control knobs
• 165mm splashback
• 304 stainless steel exterior construction
• Adjustable feet with two additional rear rollers for repositioning
• 5.5kW electric power supply; 220–240V, 1-phase + N + E, 50Hz
• Available in Natural Gas or LPG — specify gas type at time of order
• R 3/4 (BSP) male gas connection
• Freestanding installation type
• Country of origin: New Zealand

Specifications

• Width (mm): 750
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 250
• Packed Width (mm): 795.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.868021000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Thermostat | 110-270°C
• Mounting Type: Freestanding
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Cooking Surface Area (mm): 750 x 480
• Power Rating: 1 phase connection|5.5kW
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 400-415V 3P+N+E
