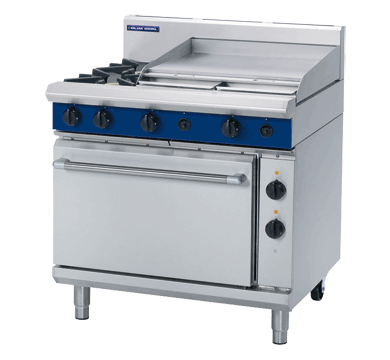

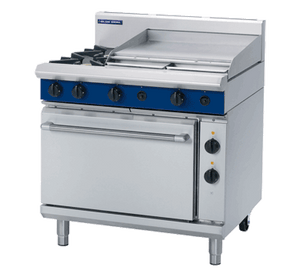

Blue Seal GE506B Evolution Series 900mm Gas Range Electric Static Oven

The Blue Seal GE506B is a 900mm hybrid commercial range from the Evolution Series, combining a gas cooktop with an electric static oven for versatile, multi-zone cooking in a single freestanding unit. The cooktop features two open burners rated at 28MJ/hr each alongside a 600mm smooth mild steel griddle powered by two 20MJ/hr burners, positioned on the right-hand side as standard. Below sits a GN 2/1 electric static oven delivering 6.5kW of even, stable heat across a thermostatically controlled range of 80 to 300°C, making it equally suited to baking, roasting, and finishing.

Constructed from 304 stainless steel with a fully welded and vitreous enamelled oven liner, the GE506B is built for the demands of high-volume restaurant, café, and catering environments. Flame failure protection on all burners, heavy-duty reinforced control knobs, removable cast iron burners with vitreous enamel pot stands, and a cool-touch stainless steel door handle on the drop-down oven door all reflect a design focused on safety, durability, and ease of daily operation. Adjustable feet and two rear rollers aid positioning and levelling during installation.

Key Benefits

• Simultaneous gas and electric cooking zones allow chefs to boil, sauté, grill, and bake at the same time, improving kitchen workflow and service speed.
• The 6.5kW electric static oven produces even, consistent heat distribution for reliable baking and roasting results across large batch loads.
• GN 2/1 oven capacity accommodates full-size gastronorm trays, supporting high-volume production without the need for a separate oven.
• Flame failure protection on all burners automatically cuts gas supply if a flame is extinguished, improving safety during continuous service.
• The 20mm thick smooth mild steel griddle plate retains and distributes heat uniformly, delivering consistent results across breakfast items, meats, and high-volume service dishes.
• Removable cast iron burners and vitreous enamel pot stands simplify cleaning and reduce downtime between services.
• The fully welded and vitreous enamelled oven liner resists staining and is straightforward to wipe down, supporting hygiene in demanding kitchen environments.
• Adjustable feet and two additional rear rollers make installation, levelling, and repositioning quick and practical.
• Available in both Natural Gas and LPG configurations, offering flexibility to suit different site requirements.

Key Features

• 900mm wide freestanding hybrid range from the Blue Seal Evolution Series
• 2 x open burners rated at 28MJ/hr each for rapid, high-power stovetop cooking
• 600mm smooth mild steel griddle plate with 20mm thickness for maximum heat retention and distribution
• 2 x griddle burners rated at 20MJ/hr each
• Griddle positioned on the right-hand side as standard
• GN 2/1 electric static oven with 6.5kW output
• Oven thermostatically controlled from 80°C to 300°C
• Single-phase power supply: 220-240Vac, 1P+N+E, 50Hz
• Flame failure protection on all burners
• Removable heavy-duty cast iron burners with vitreous enamel pot stands
• Fully welded and vitreous enamelled oven liner for durability and easy cleaning
• Drop-down oven door with welded frame
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs
• 165mm splashback included
• 2 oven shelves included
• 304 stainless steel construction throughout
• Adjustable feet with 2 additional rear rollers for easy positioning
• Gas connection: R 3/4 (BSP) male
• Compatible with Natural Gas and LPG
• Country of origin: New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 275
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas / Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 595 x 530
• Number of Burners: 2
• Power Rating: 1 phase connection|6.5kW
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 220-240V | Single Phase
