Overview

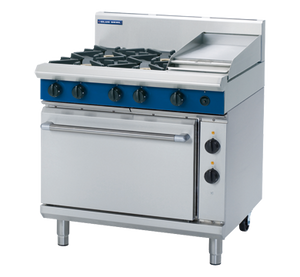

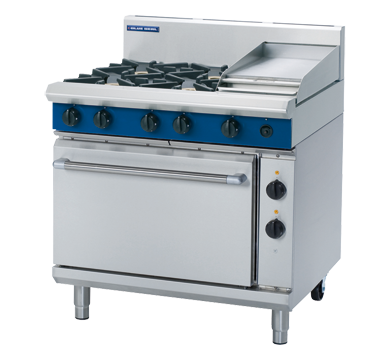

Blue Seal GE506C Evolution Series 900mm Gas Range Electric Static Oven

The Blue Seal GE506C Evolution Series is a 900mm commercial gas range combined with an integrated electric static oven, purpose-built for high-volume restaurant, café, hotel, and catering kitchen environments. The cooktop features four high-output open gas burners plus a 300mm right-hand griddle, delivering rapid heat recovery and precise flame control across a full range of cooking tasks, while the 2/1 GN electric static oven beneath provides consistent, even heat distribution for roasting, baking, and reheating.

Manufactured in New Zealand from heavy-duty 304 stainless steel, the GE506C is engineered for durability and ease of maintenance in demanding daily use. Flame failure protection on all burners, a fully welded and vitreous enamelled oven liner, removable cast iron burner components, and a cool-touch door handle are among the practical details that make this unit a reliable centrepiece in a professional kitchen suite. Available in Natural Gas or LPG, it forms part of the modular Blue Seal Evolution Series and integrates seamlessly with other equipment in the range.

Key Benefits

• Four 28MJ/hr open burners plus a dedicated 20MJ/hr griddle burner provide high-output, flexible cooktop performance for simultaneous multi-task cooking during busy service periods.
• The integrated 2/1 GN electric static oven delivers even, consistent heat throughout the cavity, making it well suited to precise baking, roasting, and reheating without the temperature fluctuations common in gas-only ovens.
• Flame failure protection on every burner automatically cuts gas flow if a flame is extinguished, significantly reducing safety risks in a fast-paced commercial kitchen.
• Removable heavy-duty cast iron burners and vitreous enamel pot stands simplify daily cleaning and reduce downtime, while the fully welded vitreous enamelled oven liner resists grease build-up for fast turnaround between services.
• The 20mm smooth mild steel griddle plate provides excellent heat retention and even heat distribution across the entire cooking surface, suitable for a wide variety of griddle items.
• Adjustable feet and two additional rollers make installation straightforward and allow repositioning or access for service without disrupting the kitchen layout.
• Heavy-duty reinforced control knobs and a drop-down oven door with welded frame are built to withstand the rigours of continuous commercial operation, reducing the likelihood of component failure.
• Modular design within the Evolution Series allows the GE506C to be combined with other 900mm suite units, enabling a fully coordinated professional kitchen configuration.
• Available in both Natural Gas and LPG configurations, giving operators flexibility to match existing gas infrastructure without modification.

Key Features

• 900mm wide freestanding gas range with integrated electric static oven
• Four 28MJ/hr high-output open gas burners on the cooktop
• One 20MJ/hr dedicated griddle burner powering the 300mm right-hand griddle
• Total gas rating: 132 MJ/hr (36.6kW)
• 2/1 GN capacity electric static oven with thermostatic control from 80°C to 300°C
• Electrical supply: 220-240Vac, 50Hz, 1P+N+E, 6.5kW
• 20mm smooth mild steel griddle plate for superior heat retention and distribution
• Flame failure protection on all gas burners
• Removable heavy-duty cast iron burners with vitreous enamel pot stands
• Fully welded and vitreous enamelled oven liner for durability and easy cleaning
• Drop-down oven door with welded frame
• Cool-touch stainless steel oven door handle
• Heavy-duty reinforced heat-resistant control knobs
• 165mm splashback included (overall height including splashback: 1085mm; oven body height: 915mm)
• Adjustable feet plus two additional rollers for easy repositioning
• 304 stainless steel construction throughout
• Gas connection: R 3/4 (BSP) male
• Available in Natural Gas or LPG configurations
• Country of manufacture: New Zealand
• Part of the modular Blue Seal Evolution Series for kitchen suite integration

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 275
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas / Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 295 x 530
• Number of Burners: 4
• Power Rating: 1 phase connection|6.5kW
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 220-240V | Single Phase
