Overview

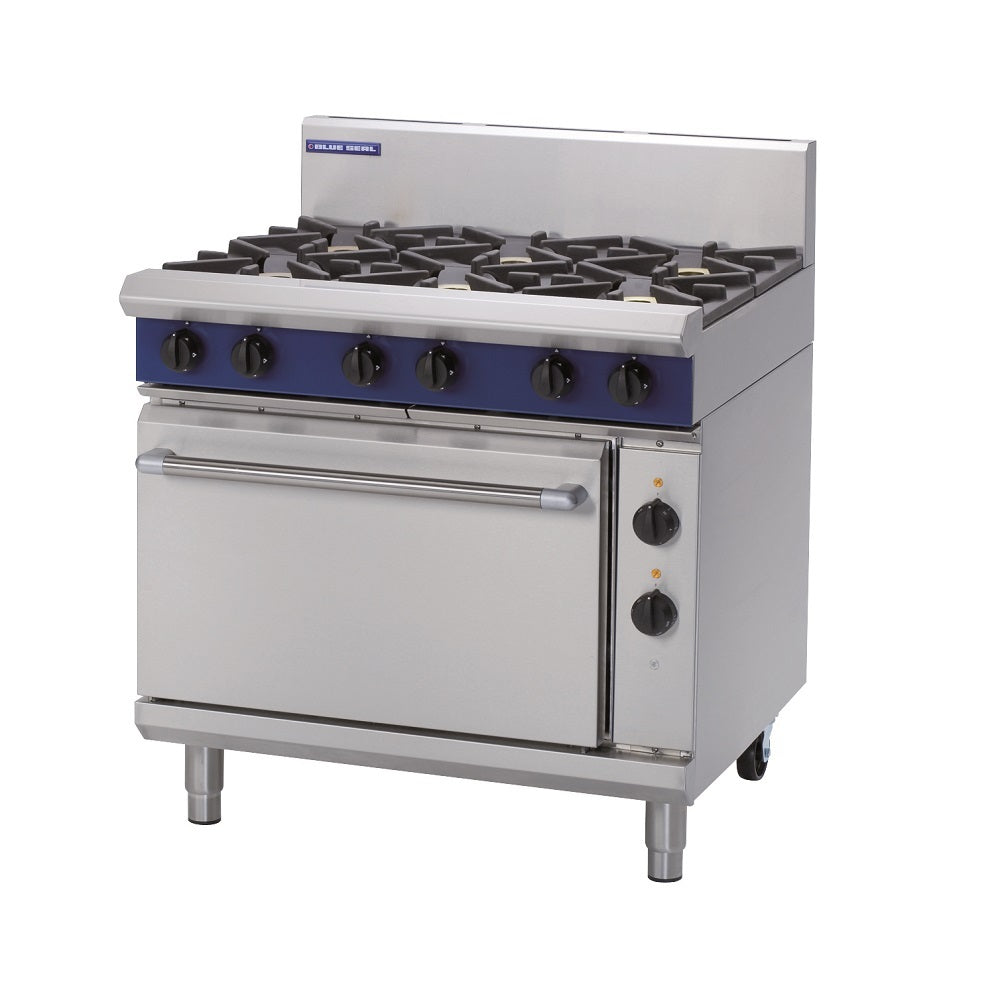

Blue Seal GE506D Evolution Series 900mm Gas Range Electric Static Oven

The Blue Seal GE506D is a 900mm freestanding commercial range from the Evolution Series, combining a six-burner gas cooktop with an integrated 2/1 GN electric static oven. Built in New Zealand from 304 stainless steel, it is engineered for the rigorous demands of restaurants, cafés, hotels, and catering kitchens that require high-output gas cooking alongside consistent, precise oven performance in a single unit.

The gas cooktop delivers six open burners at 28 MJ/hr each, with flame failure protection and heavy-duty cast iron burner heads over vitreous enamel pot stands. Below, the electric static oven uses cast iron sole plates for even heat distribution across a wide 80–300°C thermostatic range, making it equally suited to roasting, baking, and reheating. Adjustable feet and two additional rollers simplify positioning and repositioning, while a fully welded and vitreous enamelled oven liner supports straightforward cleaning and long service life.

Key Benefits

• Six high-output 28 MJ/hr open burners provide rapid heat recovery for boiling, simmering, sautéing, frying, and stockpot work during busy service periods.
• Electric static oven with cast iron sole plates delivers consistent, even heat distribution, reducing hot spots and producing reliable results for baking and roasting.
• Flame failure protection on every burner automatically shuts off gas if the flame is extinguished, improving safety in high-traffic commercial kitchens.
• 80–300°C thermostatic oven control gives chefs precise temperature management for a broad range of cooking applications.
• 2/1 GN oven capacity accommodates full gastronorm trays, maximising output and reducing the number of cooking cycles during peak service.
• Adjustable feet combined with two additional rollers make it easy to level the unit on uneven floors and reposition it for cleaning or servicing.
• Fully welded and vitreous enamelled oven liner resists staining, simplifies daily cleaning, and contributes to a longer operational lifespan.
• Available in both Natural Gas and LPG configurations, providing flexibility for different kitchen gas supply setups.
• Part of the modular Blue Seal Evolution Series, allowing seamless integration into a complete professional kitchen suite across multiple equipment categories.

Key Features

• 900mm wide freestanding commercial gas range with integrated electric static oven
• Six 28 MJ/hr open burners with heavy-duty cast iron burner heads
• Forged brass burner caps for superior durability and heat performance
• Flame failure protection on all burners as a standard safety feature
• Vitreous enamel cast iron pot stands for stable cookware support and easy cleaning
• 2/1 GN electric static oven cavity with cast iron sole plates for even heat distribution
• Thermostatic oven temperature control ranging from 80°C to 300°C
• Fully welded and vitreous enamelled oven liner for hygiene and durability
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel oven door handle
• Heavy-duty reinforced heat-resistant control knobs
• Removable spill trays for straightforward cooktop cleaning
• 165mm splashback included
• Adjustable stainless steel feet plus two additional rollers for levelling and repositioning
• Heavy-duty 304 stainless steel construction throughout
• 6.5 kW electric power supply; 220–240 V, 1-phase connection or 400–415 V, 3-phase + N + E
• Gas connection: R 3/4 (BSP) male; compatible with Natural Gas or LPG
• Two oven shelves included
• Freestanding installation type; no undershelf required due to integrated oven
• Manufactured in New Zealand
• Part of the modular Blue Seal Evolution Series for cohesive kitchen suite integration

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 275
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Thermostat | 110-270°C
• Mounting Type: Freestanding
• Fuel Type: Gas / Electric
• Number of Burners: 6
• Cooking Surface Area (mm): 900 x 480
• Power Rating: 1 phase connection|6.5kW
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 400-415V 3P+N+E
