Overview

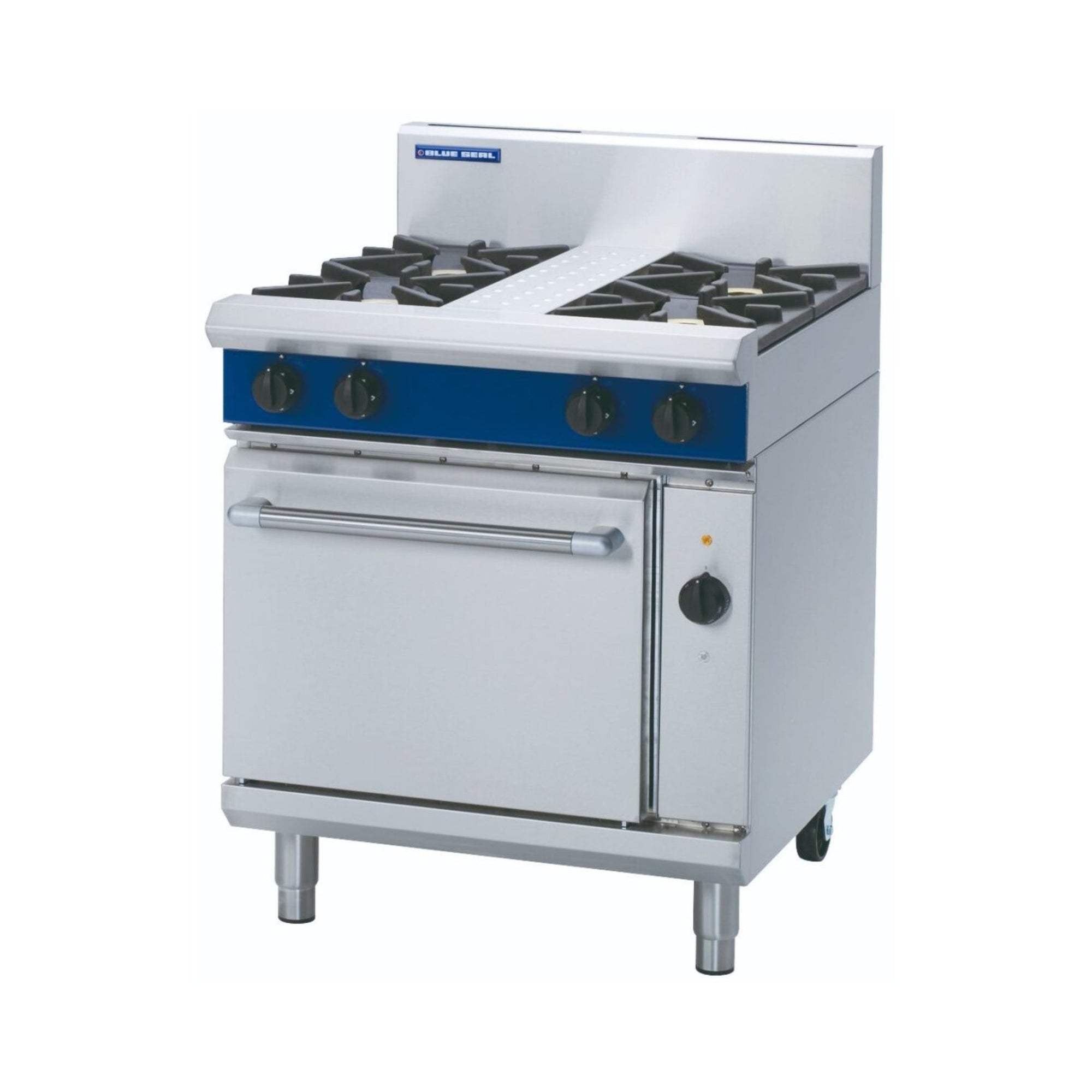

Blue Seal GE54D Evolution Series 750mm Gas Range Electric Convection Oven

The Blue Seal GE54D Evolution Series combines a four-burner gas cooktop with a 1/1 GN electric convection oven in a robust 750mm freestanding unit, purpose-built for the demands of professional commercial kitchens. Four high-output 28MJ/hr open burners deliver serious cooktop power, while the electric convection oven uses heavy-duty motors and circulation fans to reduce cooking times and allow precision cooking at lower temperatures, making the GE54D a highly versatile centrepiece for cafes, restaurants and catering operations.

Constructed from heavy-duty 304 stainless steel with a fully welded and vitreous enamelled oven liner, this New Zealand-made unit is designed for longevity and straightforward maintenance. Safety is built in across every burner with flame failure protection, and practical touches such as a cool-touch stainless steel door handle, adjustable feet, two additional rollers, and a 165mm splashback make day-to-day operation and cleaning as efficient as possible. Available in both Natural Gas and LPG configurations.

Key Benefits

• Four 28MJ/hr open burners provide high-output gas cooking power across the full cooktop surface, supporting multiple pots and pans simultaneously during peak service.
• Electric convection oven with heavy-duty motors and circulation fans circulates heat evenly, cutting cooking times and enabling food to be cooked accurately at lower temperatures.
• Cast iron sole plates inside the oven ensure consistent, even heat distribution for reliable baking and roasting results across every load.
• Flame failure protection on all burners automatically shuts off the gas supply if a flame is extinguished, reducing risk in a busy kitchen environment.
• Thermostatic control ranging from 50 to 320°C gives chefs precise temperature management for a wide variety of cooking applications.
• Adjustable feet allow the unit to be levelled on uneven floors, while two integrated rollers make repositioning straightforward during cleaning or kitchen reconfiguration.
• Removable cast iron burners and vitreous enamel pot stands simplify thorough cleaning and reduce downtime between services.
• Cool-touch stainless steel door handle and drop-down oven door with welded frame improve safety and ergonomics during continuous oven access.
• Available in Natural Gas or LPG, offering flexibility to suit the gas supply of any commercial kitchen installation.

Key Features

• Four-burner gas cooktop paired with a 1/1 GN electric convection oven in a single 750mm freestanding unit
• 4 x 28MJ/hr open burners with flame failure protection on every burner
• Thermostatic oven temperature control from 50°C to 320°C
• Heavy-duty motors and circulation fans for fan-forced convection cooking
• Cast iron sole plates in the oven for even heat distribution
• Removable heavy-duty cast iron burners for easy cleaning and servicing
• Vitreous enamel pot stands for durability and straightforward maintenance
• Fully welded oven liner with vitreous enamel coating for hygienic, easy-clean interior
• Heavy-duty reinforced control knobs engineered for long-term durability under commercial use
• Drop-down oven door with welded frame for robust, reliable access
• Cool-touch stainless steel oven door handle for safe operation during continuous use
• Heavy-duty 304 stainless steel exterior construction
• 165mm rear splashback included
• Adjustable feet for level installation on uneven surfaces
• Two additional rollers for ease of mobility and repositioning
• 5.6kW electric power supply, 3-phase + N connection
• Gas connection: R 3/4 (BSP) male
• Compatible with Natural Gas or LPG (specify at time of ordering)
• Freestanding installation with 750mm x 812mm footprint and 1085mm height
• Manufactured in New Zealand

Specifications

• Width (mm): 750
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 250
• Packed Width (mm): 795.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.868021000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Thermostat | 110-270°C
• Mounting Type: Freestanding
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Cooking Surface Area (mm): 750 x 480
• Power Rating: 1 phase connection|5.6kW
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 400-415V 3P+N+E
