Overview

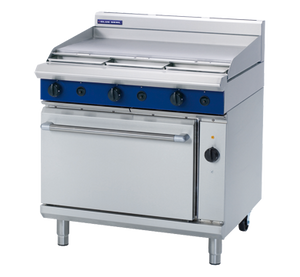

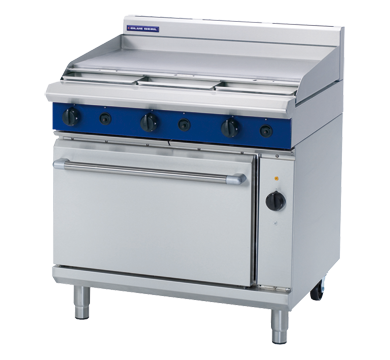

Blue Seal GE56A Evolution Series 900mm Gas Range Electric Convection Oven

The Blue Seal GE56A Evolution Series pairs a full-width 900mm thermostatic gas griddle with an integrated 2/1 GN electric convection oven, forming a versatile high-capacity cooking solution suited to restaurants, cafes, hotels and catering operations. Three 20MJ/hr griddle burners drive a 20mm heavy-duty smooth mild steel plate, while the fan-forced convection oven circulates heat evenly throughout the cavity for consistent roasting, baking, reheating and batch cooking across peak service periods.

Manufactured in New Zealand from heavy-duty 304 stainless steel, the GE56A is built to withstand demanding commercial environments. Practical features include flame failure protection, a fully welded vitreous enamel oven liner, a drop-down door with welded frame, and a cool-touch stainless steel handle. The unit belongs to the modular Evolution Series range, allowing it to be combined with other Blue Seal components to form a complete professional kitchen suite, and it is available in both Natural Gas and LPG configurations.

Key Benefits

• Fan-forced convection heat circulation reduces cooking times and delivers consistent results across the full oven cavity, maximising kitchen throughput during busy service.
• The full-width 900mm griddle surface provides ample cooking area for high-volume breakfast service, burgers, steaks, eggs, seafood and à la carte production simultaneously.
• Thermostatic griddle control across a 50–320°C range allows precise temperature management, reducing the risk of overcooking and improving consistency across different menu items.
• Flame failure protection on all burners enhances kitchen safety by automatically cutting the gas supply if a flame is extinguished.
• Cast iron burners that can be lifted out for cleaning, together with vitreous enamel pot stands, make routine maintenance faster and easier, reducing downtime between services.
• Adjustable feet and two additional rear rollers simplify positioning, levelling and repositioning of the unit within the kitchen.
• The modular Evolution Series design allows the GE56A to be paired with other Blue Seal components, giving operators the flexibility to build out a complete cooking suite.
• Availability in Natural Gas or LPG makes the unit suitable for a wide range of commercial kitchen infrastructure setups.

Key Features

• 900mm full-width smooth mild steel gas griddle mounted above an integrated electric convection oven
• Three griddle burners each rated at 20MJ/hr, delivering a combined gas rating of 60MJ/hr (16.6kW)
• Thermostatic griddle temperature control from 50°C to 320°C
• Integrated 2/1 GN electric convection oven with fan-forced heat circulation
• Electric convection oven rated at 6.6kW; accepts 220–240V AC, 1P+N+E, 50Hz or 400–415V AC, 3P+N+E, 50/60Hz supply
• 20mm thick heavy-duty smooth mild steel griddle plate for excellent heat retention
• Flame failure protection on all griddle burners
• Lift-out cast iron burners and vitreous enamel pot stands for straightforward cleaning
• Fully welded and vitreous enamelled oven liner for hygiene and durability
• Drop-down oven door with welded frame
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs
• 165mm splashback included; overall height including splashback is 1085mm
• Adjustable feet with two additional rear rollers for easy manoeuvring and levelling
• Constructed from heavy-duty 304 stainless steel
• Freestanding, freestanding-mountable design compatible with the modular Blue Seal Evolution Series kitchen suite range
• Available in Natural Gas or LPG configuration
• Gas connection: R 3/4 (BSP) male
• Country of manufacture: New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 275
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas / Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 892 x 530
• Number of Burners: 3
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 220-240V | Single Phase
