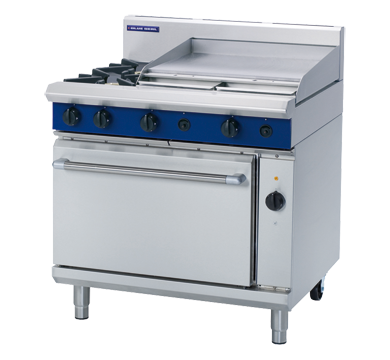

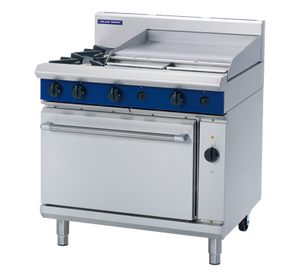

Blue Seal GE56B Evolution Series 900mm Gas Range Electric Convection Oven

The Blue Seal GE56B Evolution Series is a 900mm freestanding commercial cooking suite combining a two-burner gas cooktop with a 600mm thermostatic griddle above an integrated 2/1 GN electric convection oven. Manufactured in New Zealand from 304 stainless steel, it delivers flexible multi-zone cooking capacity suited to restaurants, cafes, hotels, catering operations and high-volume hospitality kitchens.

The cooktop section provides 2 x 28MJ/hr open burners and 2 x 20MJ/hr griddle burners, covering everything from rapid boiling and sautéing through to breakfast grilling and batch frying. Below, the fan-forced electric convection oven circulates heat evenly across a full 2/1 GN cavity, accelerating cooking times and delivering consistent results for roasting, baking and reheating. As part of the modular Evolution Series, the GE56B integrates seamlessly into a complete professional kitchen suite.

Key Benefits

• Fan-forced convection oven circulation produces faster, more even cooking results across the full 2/1 GN cavity, reducing peak-service pressure and improving throughput.
• Dual cooking zones on the cooktop (open burners plus a 600mm griddle) allow simultaneous preparation of multiple menu items, maximising kitchen efficiency.
• Flame failure protection on every burner enhances kitchen safety and complies with commercial gas appliance requirements.
• Removable cast iron burners and vitreous enamel pot stands simplify daily cleaning and reduce maintenance downtime.
• Thermostatic griddle control across a 50-320°C range gives chefs precise, repeatable temperature management for consistent food quality.
• Adjustable feet and two rear rollers make installation straightforward and allow the unit to be repositioned easily for cleaning or reconfiguration.
• Heavy-duty reinforced control knobs and a fully welded, vitreous enamelled oven liner ensure long-term durability under continuous commercial use.
• Available in both Natural Gas and LPG configurations, providing flexibility across different site requirements.

Key Features

• 900mm wide freestanding gas range with integrated electric convection oven
• 2 x 28MJ/hr open gas burners for high-heat cooking tasks
• 2 x 20MJ/hr griddle burners powering a 600mm smooth mild steel griddle surface (20mm thick plate)
• Griddle positioned on the right-hand side as standard
• 2/1 GN electric convection oven with fan-forced heat circulation
• Oven temperature range: 90-300°C (thermostat control); griddle thermostatic control range: 50-320°C
• Total gas rating: 96MJ/hr (26.6kW)
• Electrical supply: 6.6kW, 220-240V AC, 50Hz, 1P+N+E (single phase); alternative 3-phase option available
• Flame failure protection on all burners
• Removable heavy-duty cast iron burners with forged brass caps
• Vitreous enamel pot stands for easy removal and cleaning
• Fully welded and vitreous enamelled oven liner for hygiene and durability
• Drop-down oven door with welded frame
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs
• Integrated 165mm splashback (overall height including splashback: 1085mm; oven body height: 915mm)
• Adjustable feet with 2 additional rear rollers for levelling and repositioning
• 304 stainless steel construction throughout
• Cooking surface area: 595 x 530mm
• R 3/4 (BSP) male gas connection
• Available in Natural Gas or LPG; gas type must be specified at time of order
• Freestanding, freestanding mounting; modular design compatible with the Blue Seal Evolution Series suite
• Country of origin: New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 275
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas / Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 595 x 530
• Number of Burners: 2
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 220-240V | Single Phase
