Overview

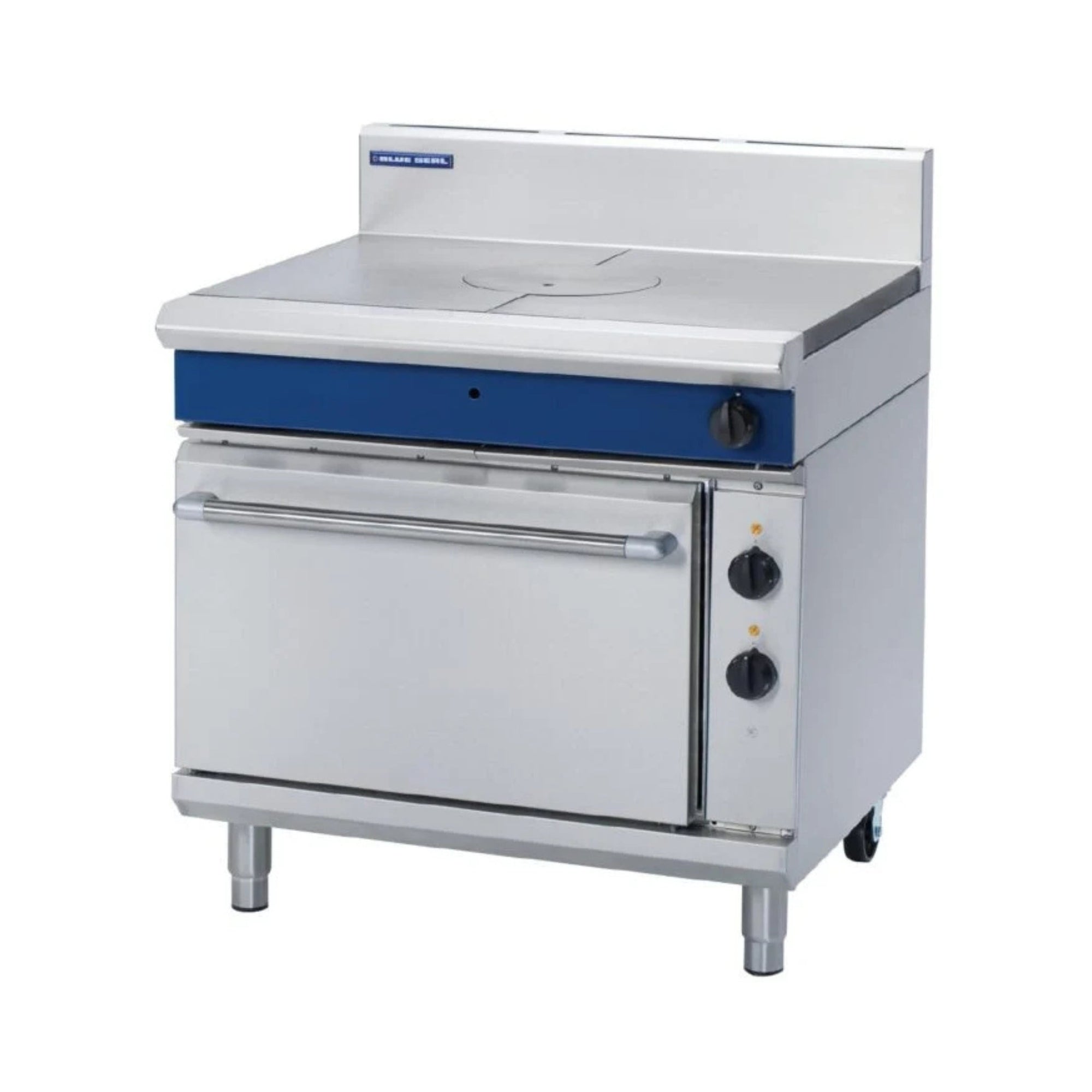

Blue Seal GE570 Evolution Series 900mm Gas Target Top Electric Static Oven Range

The Blue Seal GE570 is part of the Evolution Series range, combining a 900mm gas target top with a 2/1 GN electric static oven in a single freestanding unit built for demanding commercial kitchen environments. The heavy-duty dual-ring cast iron burner delivers 45MJ/hr with exceptional heat control and rapid recovery, while a 50mm refractory ceramic block lining in the burner box maximises thermal efficiency across the cooking surface.

The electric static oven operates on a 50-320°C thermostat, providing consistent, even heat suited to baking, roasting and high-volume cooking. Available in Natural Gas or LPG configurations, the GE570 is constructed from 304 stainless steel with a fully welded, vitreous enamelled oven liner for durability and easy cleaning, making it a reliable centrepiece for professional kitchens.

Key Benefits

• High-output 45MJ/hr dual-ring cast iron burner provides rapid heat recovery and precise temperature control for continuous service.
• Refractory ceramic block lining (50mm) in the burner box improves thermal efficiency, reducing energy consumption during peak cooking periods.
• Wide 50-320°C oven temperature range accommodates diverse cooking applications from gentle warming through to high-temperature roasting.
• Flame failure protection and continuous pilot burner enhance operational safety in busy kitchen environments.
• Fully welded vitreous enamelled oven liner resists staining and simplifies cleaning, reducing downtime between services.
• Adjustable feet and two additional rollers allow easy repositioning and precise levelling on the kitchen floor.
• Cool-touch stainless steel door handle and heavy-duty reinforced control knobs are designed to withstand the rigours of daily commercial use.
• Available in both Natural Gas and LPG, giving flexibility to suit the gas supply on site.

Key Features

• 900mm gas target top paired with a 2/1 GN electric static oven in one freestanding unit
• 45MJ/hr dual-ring cast iron burner with super heavy-duty target top castings
• Burner box lined with 50mm refractory ceramic blocks for enhanced thermal efficiency
• Centre burner ring: 280mm diameter; maximum plate temperature at centre approximately 500°C
• Cooking surface area: 900mm x 625mm (5,625cm²)
• Electric static oven with 50-320°C thermostatic control
• Electrical supply: 6.5kW, 220-240V AC, single phase (1P+N+E), 50Hz
• Gas connection: R 3/4 (BSP) male; available in Natural Gas or LPG
• Flame failure protection and continuous pilot burner for safe operation
• Drop-down oven door with welded frame
• Fully welded oven liner finished with vitreous enamel for durability and easy cleaning
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs
• 165mm splashback included
• Adjustable feet and 2 additional rollers for easy installation and repositioning
• Constructed from 304 stainless steel
• Freestanding installation type
• Country of origin: New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Single Knob Control
• Temperature Control: Thermostat | 110-270°C
• Mounting Type: Freestanding
• Fuel Type: Gas / Electric
• Griddle Surface: Heavy-Duty Cast Iron
• Cooking Surface Area (mm): 900mm x 625mm, 5625cm2
• Number of Burners: 1
• Power Rating: 1 phase connection|6.5kW
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 220-240V | Single Phase
