Overview

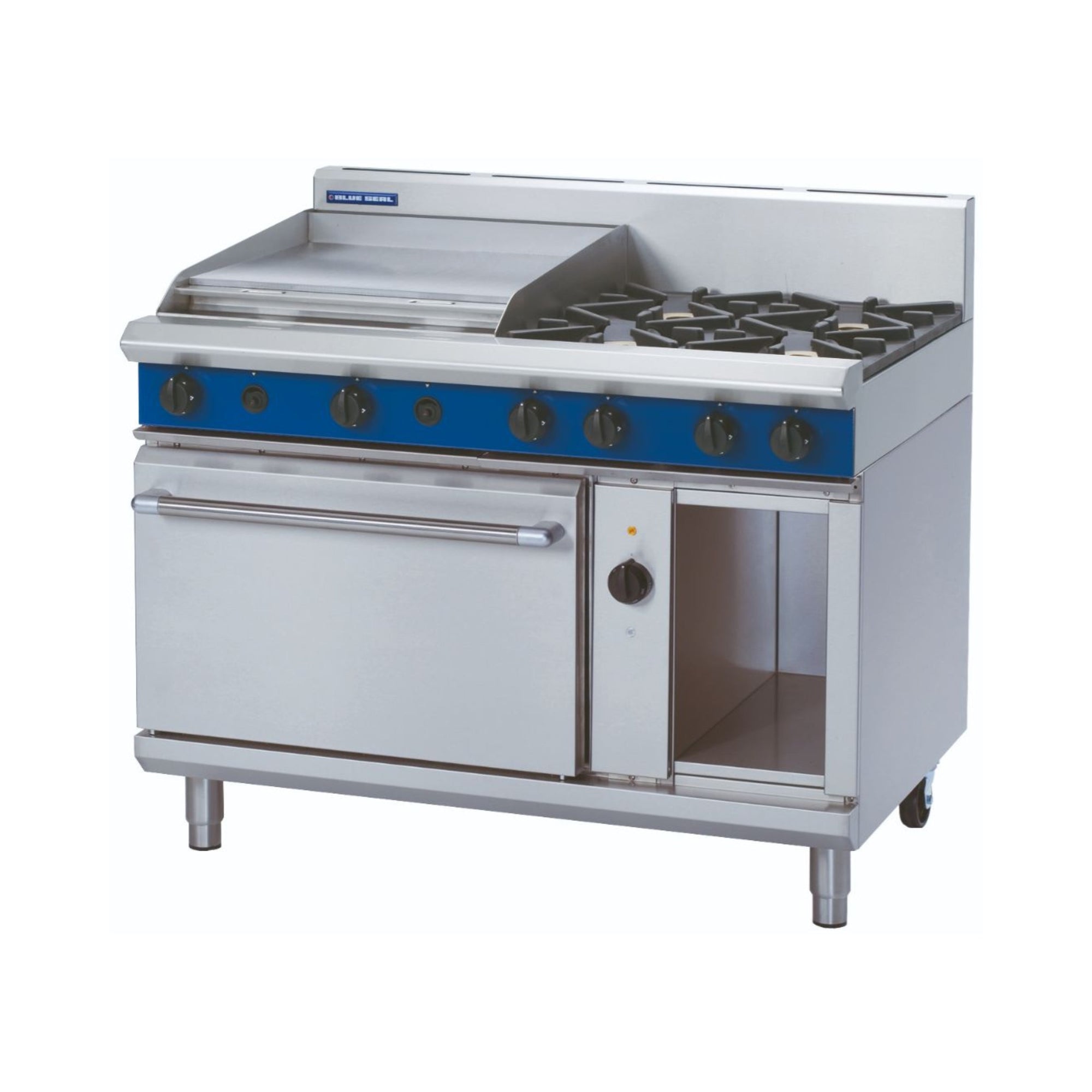

Blue Seal GE58B Evolution Series 1200mm Gas Range Electric Convection Oven

The Blue Seal GE58B Evolution Series is a 1200mm commercial cooking range combining a four-burner gas cooktop and 600mm gas griddle with an integrated GN 2/1 electric convection oven below. Manufactured in New Zealand from 304 stainless steel, it is engineered for high-volume restaurants, hotels, cafes, catering operations and hospitality venues that demand the responsiveness of gas surface cooking alongside the precision and consistency of fan-forced electric oven performance.

The cooktop delivers four 28MJ/hr open burners and a right-hand 600mm smooth griddle plate driven by two 20MJ/hr burners, while the electric convection oven provides fan-assisted heat circulation with thermostatic control across a wide 50–320°C range. Safety features including flame failure protection on every burner, heavy-duty cast iron components, a vitreous enamel oven liner and reinforced controls make the GE58B a durable, low-maintenance centrepiece for a complete Blue Seal Evolution Series cooking suite.

Key Benefits

• Fan-forced air circulation in the GN 2/1 electric convection oven reduces cooking times and promotes even heat distribution across all racks, improving consistency for baking, roasting and finishing.
• The combination of four high-output open burners and a 600mm smooth griddle on a single 1200mm unit maximises cooking versatility without requiring additional floor space.
• Flame failure protection on all burners automatically shuts off gas supply if a flame extinguishes, providing an important safety safeguard during busy service periods.
• Removable cast iron burners and vitreous enamel pot stands, along with a fully welded vitreous enamel oven liner, simplify daily cleaning and help maintain hygiene standards.
• Adjustable feet and two additional rear rollers allow precise levelling and straightforward repositioning during kitchen reconfiguration or routine servicing.
• Available in both Natural Gas and LPG configurations, giving operators flexibility to match their existing gas supply without equipment modification.
• The drop-down oven door with welded frame and cool-touch stainless steel handle supports safe, efficient tray loading and unloading during continuous service.
• Modular Evolution Series design integrates with other Blue Seal units to form a cohesive commercial cooking suite tailored to individual kitchen layouts.

Key Features

• 1200mm wide freestanding commercial range with 304 stainless steel construction
• Four-burner gas cooktop with 600mm smooth mild steel griddle plate positioned on the right-hand side as standard
• 4 x 28MJ/hr removable heavy-duty cast iron open burners with vitreous enamel pot stands
• 2 x 20MJ/hr gas griddle burners; griddle plate is 20mm thick smooth mild steel, cooking surface 595 x 530mm
• Flame failure protection fitted to all burners
• Integrated GN 2/1 electric convection oven with heavy-duty motor and fan circulation system
• Oven thermostatic temperature control ranging from 50°C to 320°C
• Fully welded and vitreous enamelled oven liner for hygiene and easy cleaning
• Cast iron sole plates inside the oven cavity for even heat distribution
• Drop-down oven door with welded frame and cool-touch stainless steel handle
• Heavy-duty reinforced control knobs throughout
• 165mm rear splashback included
• Adjustable feet and 2 additional rollers for levelling and mobility
• Single-phase electrical connection: 6.6kW, 220–240V AC, 1P+N+E, 50Hz
• Gas connection: R 3/4 BSP male; compatible with Natural Gas or LPG (specify at time of order)
• Country of origin: New Zealand
• Part of the modular Blue Seal Evolution Series for integration into complete cooking suites

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 528.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 449
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas / Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 595 x 530
• Number of Burners: 4
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 220-240V | Single Phase
