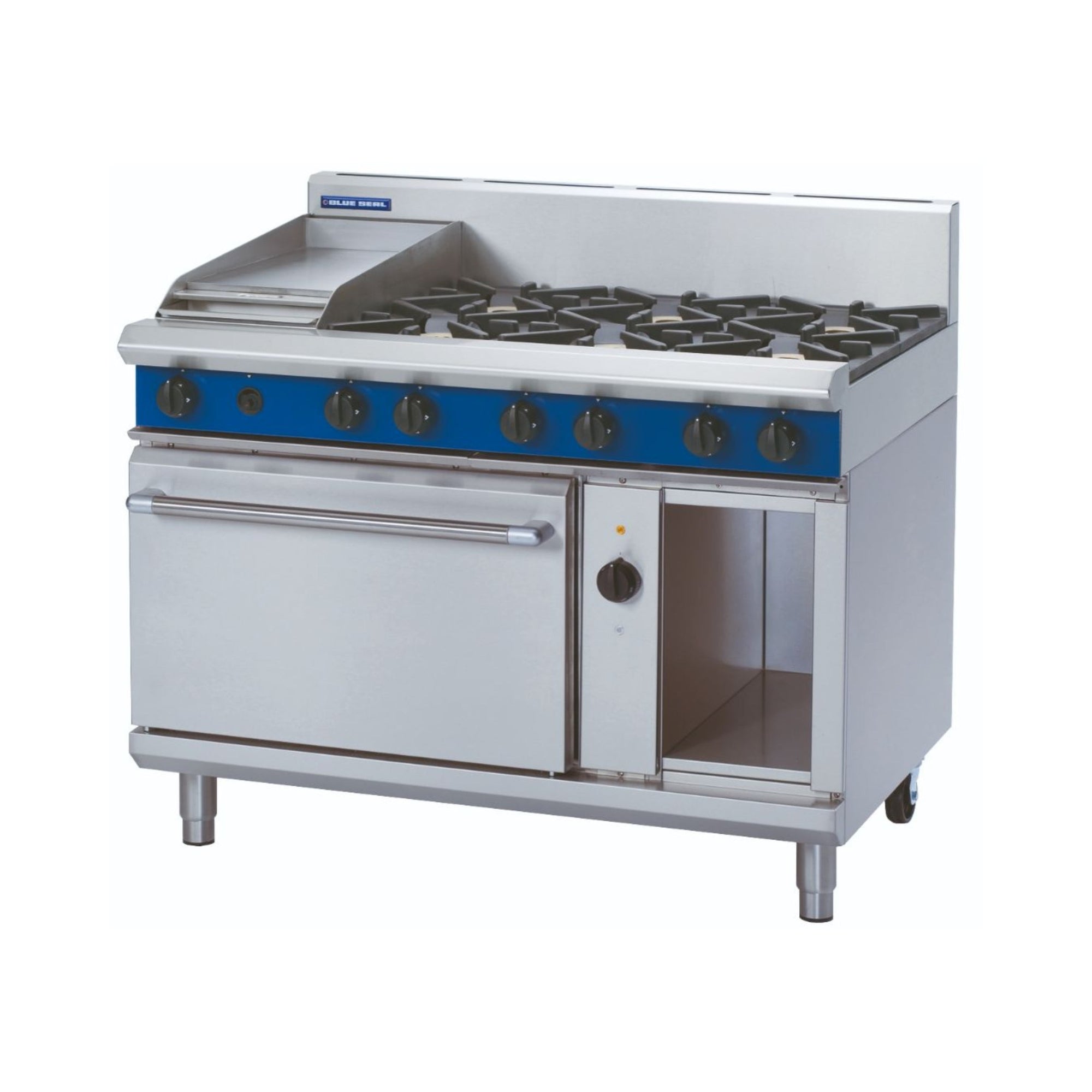

Blue Seal GE58C Evolution Series 1200mm Gas Range Electric Convection Oven

The Blue Seal GE58C Evolution Series is a 1200mm commercial gas range combining a six-burner cooktop, a 300mm right-hand griddle, and an integrated 2/1 GN electric convection oven into a single, heavy-duty freestanding unit. Manufactured in New Zealand from 304 stainless steel, it is purpose-built for high-volume commercial kitchens including restaurants, cafes, hotels, and catering operations that demand reliable, versatile cooking performance across multiple cooking methods simultaneously.

The cooktop delivers 6 x 28MJ/hr open burners and a 1 x 20MJ/hr griddle burner, with flame failure protection throughout for safety during continuous service. Below, the fan-forced electric convection oven circulates heat evenly across the 2/1 GN cavity, reducing cooking times and enabling lower-temperature cooking compared to conventional static ovens. Cast iron sole plates, a fully welded vitreous enamel oven liner, heavy-duty motors, and reinforced control knobs reflect the durability expected in demanding commercial environments. The unit is available in Natural Gas or LPG configurations.

Key Benefits

• Six high-output open burners with rapid heat recovery keep multiple pots and pans at precise temperatures simultaneously, supporting fast-paced service periods.
• The integrated 300mm right-hand griddle with its own dedicated 20MJ/hr burner adds a versatile flat-cooking surface without requiring additional floor space.
• Fan-forced convection heat circulation in the 2/1 GN oven shortens cooking times and improves thermal consistency across trays, boosting batch cooking productivity.
• Flame failure protection on all burners automatically cuts gas flow if a flame is extinguished, reducing safety risk in busy kitchen environments.
• Removable cast iron burners, vitreous enamel pot stands, and vitreous enamel oven liner simplify post-service cleaning and routine maintenance.
• Adjustable feet with two rear rollers make levelling straightforward and allow the unit to be repositioned for cleaning or servicing without heavy lifting.
• The storage cabinet on the right-hand side provides convenient on-range storage for trays, pans, and kitchen tools, keeping frequently used items close at hand.
• Compatibility with the modular Blue Seal Evolution Series allows the GE58C to integrate seamlessly into a complete matched kitchen suite.
• Dual gas type availability (Natural Gas or LPG) makes the unit suitable for a wide range of commercial kitchen configurations and building gas supply types.

Key Features

• 1200mm wide freestanding commercial gas range with electric convection oven
• 6 x 28MJ/hr heavy-duty open gas burners with removable cast iron construction and forged brass caps
• 1 x 20MJ/hr dedicated griddle burner powering a 300mm smooth mild steel griddle plate (20mm thick) positioned on the right-hand side as standard
• Integrated 2/1 GN electric convection oven with fan-forced heat circulation
• Cast iron sole plates in the oven cavity for even heat distribution
• Heavy-duty oven circulation motor and fan to reduce cooking times and support lower-temperature cooking
• Thermostatic oven temperature control ranging from 50°C to 320°C
• Fully welded and vitreous enamelled oven liner for hygiene and durability
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel oven door handle
• Flame failure protection fitted to all burners
• Vitreous enamel cast iron pot stands for cookware stability and easy cleaning
• Heavy-duty reinforced control knobs
• 165mm splashback included
• Storage cabinet on the right-hand side
• Adjustable stainless steel feet with two additional rear rollers
• Heavy-duty 304 stainless steel construction throughout
• 165mm splashback (overall height including splashback: 1085mm; oven body height: 915mm)
• Total gas rating: 188MJ/hr (52.2kW)
• Electrical supply: 6.6kW at 220-240V AC, 1P+N+E, 50Hz (single phase) or 6.6kW at 400-415V AC, 3P+N+E, 50/60Hz (three phase)
• Gas connection: R 3/4 (BSP) male
• Available in Natural Gas or LPG -- gas type must be specified at time of ordering
• Freestanding installation type
• Country of manufacture: New Zealand
• Part of the modular Blue Seal Evolution Series for matched kitchen suite integration

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 528.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 449
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas / Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 295 x 530
• Number of Burners: 6
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 220-240V | Single Phase
