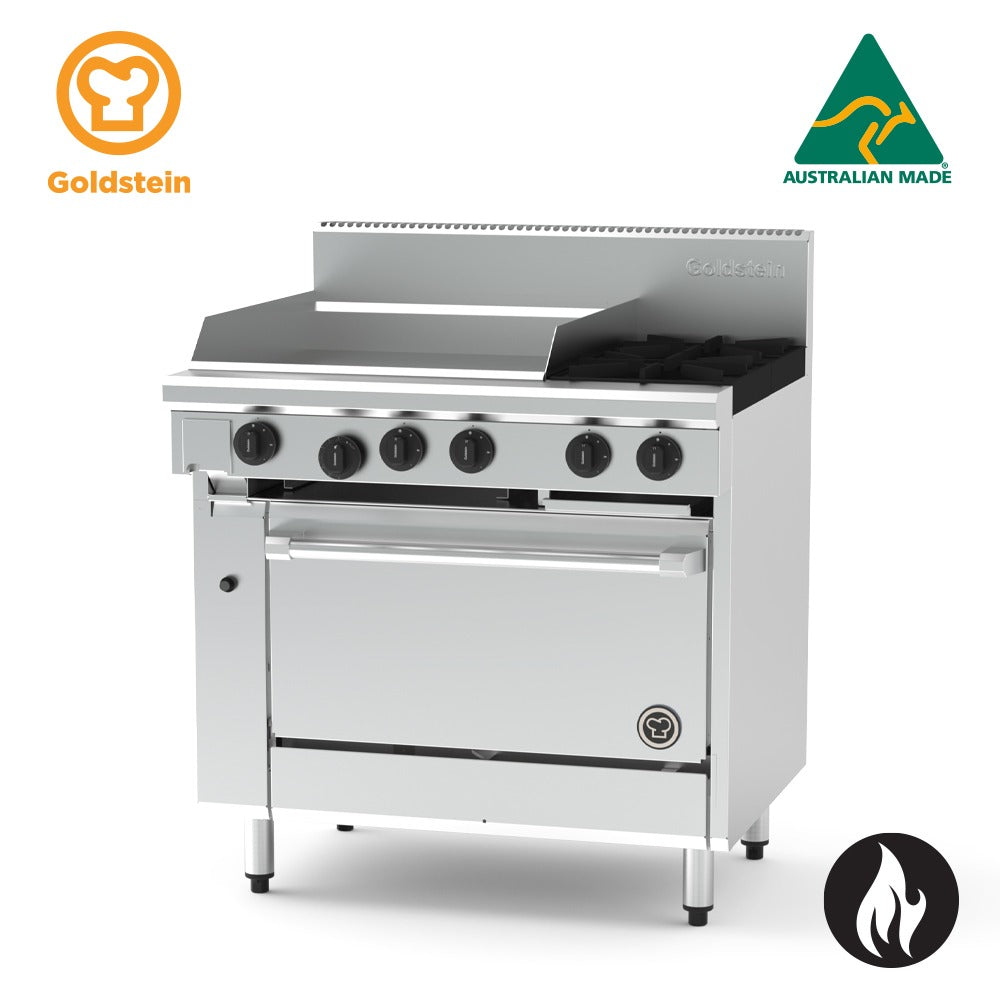

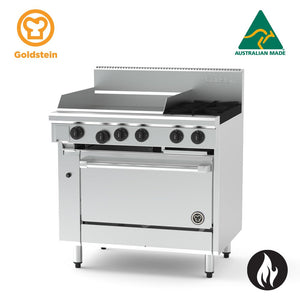

Goldstein PF24G228-X 800 X-Series 700mm Gas Static Oven Range with 2 Burners and 610mm Griddle

The Goldstein PF24G228-X is an Australian-made commercial oven range from the 800 X-Series, combining two high-output open cooktop burners with a 610mm mild steel griddle and a 700mm gas static oven in a single freestanding unit. Built around a heavy-duty welded stainless steel body, it is engineered to handle the sustained demands of busy professional kitchens, offering a modular cooktop design that supports a range of configurations including burners, griddle plates, and chargrill options across 305mm and 610mm sections.

The gas static oven delivers precise thermostatic control between 100°C and 280°C, with a fully insulated, vitreous enamel-lined oven cavity and door for even heat distribution and straightforward cleaning. GN 1/1 compatible with three-position racking and heavy-duty chrome wire rack supports, the oven suits everything from banquet roasting to consistent baked goods production. For kitchens requiring different oven types, the unit is available in gas fan-forced, electric fan-forced, electric static, and gas convection configurations.

Key Benefits

• Consistent, even heat across both open burners and the griddle surface supports reliable, high-volume cooking across multiple menu items simultaneously.
• Modular cooktop design allows the configuration of burners, griddle plates, and chargrills in 305mm and 610mm sections, giving kitchens the flexibility to adapt the cooking surface to changing menu demands.
• Constant pilot flame with flame failure protection on open burners and the oven burner maximises both operational safety and energy efficiency during long service periods.
• Vitreous enamel lining on the oven cavity and door simplifies daily cleaning and helps maintain even heat distribution throughout the cooking cycle.
• GN 1/1 oven capacity with three-position racking and easily removable chrome wire rack supports speeds up batch cooking and simplifies mid-service adjustments.
• Adjustable legs from 140mm to 170mm allow levelling on uneven kitchen floors, while the fully welded stainless steel body ensures long-term rigidity in high-use environments.
• Stainless steel fascia and sides, combined with integrated spill zones and drip trays, reduce cleaning time between services and maintain a hygienic cooking environment.
• Made in Australia to commercial kitchen standards, the unit is available in natural gas and LPG variants, providing installation flexibility across a wide range of venues.

Key Features

• Heavy-duty fully welded stainless steel body for structural rigidity and long-term durability
• Fully welded surrounds for griddle and chargrill sections
• Two removable 33 MJ high-performance open cooktop burners with even heat distribution
• 40% of flame ports positioned in the centre cross of each burner for optimised heat spread
• Cast iron star trivets on open burners
• 610mm x 520mm x 20mm thick mild steel griddle plate
• Griddle and BBQ section positioned on the left-hand side
• 20 MJ griddle burner output per every 305mm griddle section
• Piezo ignition with flame failure on open burners and oven burner
• Constant pilot flame for energy-efficient and reliable operation
• Gas static oven with 100°C to 280°C thermostatic control
• Oven interior dimensions: 700mm W x 560mm D x 355mm H
• GN 1/1 compatible oven cavity with three-position racking
• Heavy-duty chrome wire rack supports designed for easy removal
• Oven cavity and door fully insulated and lined with vitreous enamel for even heat and easy cleaning
• Stainless steel fascia and sides with integrated spill zones and drip trays
• Large heat-resistant reinforced control knobs with clearly visible settings and high-to-low flame adjustment
• Ergonomic door handle and angled corners for a streamlined appearance
• Adjustable legs from 140mm to 170mm for levelling on uneven surfaces
• Available in natural gas (134 MJ) and LPG (136 MJ) configurations
• 3/4 BSP gas connection
• Freestanding installation with overall dimensions 914mm W x 800mm D x 1120mm H
• Made in Australia
• Compatible oven upgrade options include: gas fan-forced (PF24G228FF-X), electric fan-forced (PF24G228EFF-X), gas convection (PFC24G228-X), electric convection (PFC24G228E-X), and electric static (PF24G228E-X)

Specifications

• Width (mm): 914
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 220
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4 BSP
• Ignition Type: Piezo with Flame Failure
• Burner Output (MJ/h): 106
• Shipping Weight: 240
• Packed Width (mm): 980.0
• Packed Height (mm): 1200.0
• Packed Depth (mm): 900.0
• Shipping Cubic: 1.058400000m3
• Power / Gas Input: 134/136 MJ
• Power Rating: 106 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 220
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 100°C - 280°C
• Installation Type: Freestanding
• Control Type: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Cast Iron Trivets
