Overview

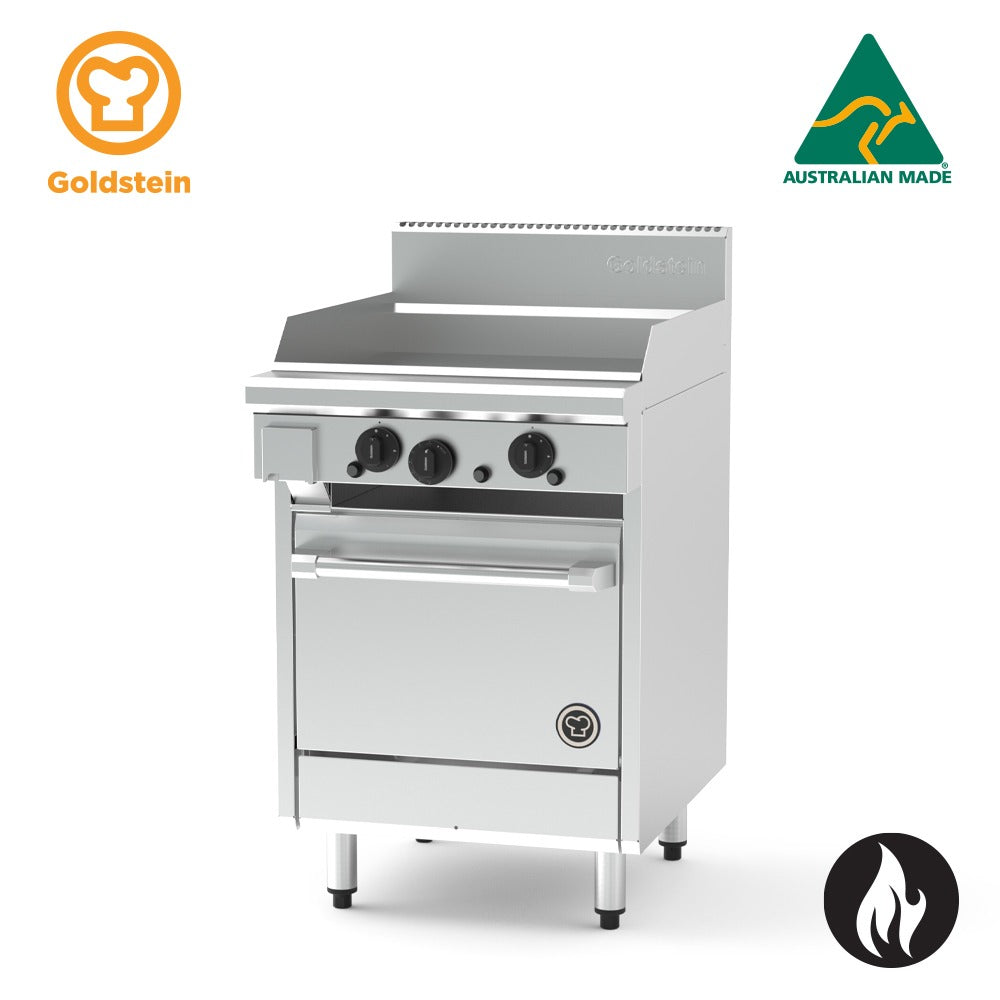

Goldstein PF24G20-X 800 X-Series 610mm Gas Griddle with 500mm Gas Static Oven

The Goldstein PF24G20-X is an Australian-made commercial range from the 800 X-Series, pairing a 610mm smooth mild steel gas griddle top with a 500mm gas static oven inside a heavy-duty fully welded stainless steel body engineered for rigorous daily service in professional kitchens. The modular cooktop design accommodates burner sections, griddle plates and chargrill options across 305mm and 610mm configurations, giving operators the flexibility to build a surface suited to their specific menu requirements.

The gas static oven provides consistent results throughout its 100°C to 280°C temperature range, with a GN 1/1 interior that is thoroughly insulated and lined in vitreous enamel to promote uniform heat distribution and straightforward clean-down. Piezo ignition with flame failure protection is fitted to both the griddle and oven burners, and the unit arrives ready for natural gas or LPG connection. Alternative oven configurations are also offered, including gas fan-forced, electric fan-forced and electric static models.

Key Benefits

• Fully welded stainless steel construction resists the racking and flexing that occurs in high-volume service, extending the working life of the unit.
• Constant pilot flame design maximises energy efficiency and ensures immediate burner response during a busy service period.
• Pilot flame failure protection on open burners and the oven burner improves kitchen safety by cutting gas flow if a flame is extinguished.
• Vitreous enamel oven interior and door insulation deliver consistent, evenly distributed heat for reliable baking and roasting results while making clean-down faster.
• GN 1/1 oven capacity with three-position racking allows flexible tray configurations to suit different menu items or batch sizes.
• Adjustable legs from 140mm to 170mm make levelling straightforward on uneven kitchen floors and allow the unit to be set at a comfortable working height.
• Modular cooktop design in 305mm and 610mm sections lets operators configure the surface with burners, griddle plates or chargrill options to match their menu.
• Stainless steel fascia, dedicated spill collection zones and removable drip trays simplify routine cleaning and reduce downtime between services.
• Made in Australia with a design noted as easy to service, supporting faster turnaround on any required maintenance.

Key Features

• Heavy-duty fully welded stainless steel body for rigidity and long-term durability
• Fully welded surrounds encompassing both the griddle and chargrill sections for added structural integrity
• Modular cooktop design accepting burner, griddle plate and chargrill combinations in 305mm and 610mm sections
• 610 x 520mm smooth mild steel griddle plate, 20mm thick
• 20 MJ griddle burner output per every 305mm griddle section
• Piezo ignition on griddle burners
• Constant pilot flame for reliable, energy-efficient operation
• Pilot flame failure protection on open burners and oven burner
• Gas static oven with 100°C to 280°C thermostatic control
• Piezo ignition on oven burner
• Oven cavity and door thoroughly insulated and finished with vitreous enamel for uniform heat retention and easy cleaning
• Oven internal dimensions: 500mm (W) x 560mm (D) x 355mm (H)
• GN 1/1 oven capacity
• Three-position racking inside the oven
• Robust chrome wire racks with a tool-free, quick-release design for straightforward removal
• Griddle and BBQ section positioned on the left-hand side
• Stainless steel fascia and sides
• Dedicated spill collection zones and removable drip trays to facilitate cleaning
• Large, heat-resistant reinforced control knobs with high-to-low flame control and easy-to-read settings
• Ergonomic door handle and angled corners for a clean, professional appearance
• Adjustable legs from 140mm to 170mm
• Accepts natural gas or LPG (3/4 BSP gas connection)
• Total gas input rating: 60 MJ/h (oven) with 96 MJ/h burner output
• Freestanding installation
• Made in Australia
• Alternative oven options available: PF24G20FF-X (gas fan-forced), PF24G20EFF-X (electric fan-forced), PF24G20E-X (electric static)

Specifications

• Width (mm): 610
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 180
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4 BSP
• Ignition Type: Piezo with Flame Failure
• Burner Output (MJ/h): 96
• Shipping Weight: 180
• Packed Width (mm): 720.0
• Packed Height (mm): 1200.0
• Packed Depth (mm): 920.0
• Shipping Cubic: 0.794880000m3
• Power / Gas Input: 60/60 MJ
• Power Rating: 96 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 60
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 100°C - 280°C
• Installation Type: Freestanding
• Control Type: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
