Overview

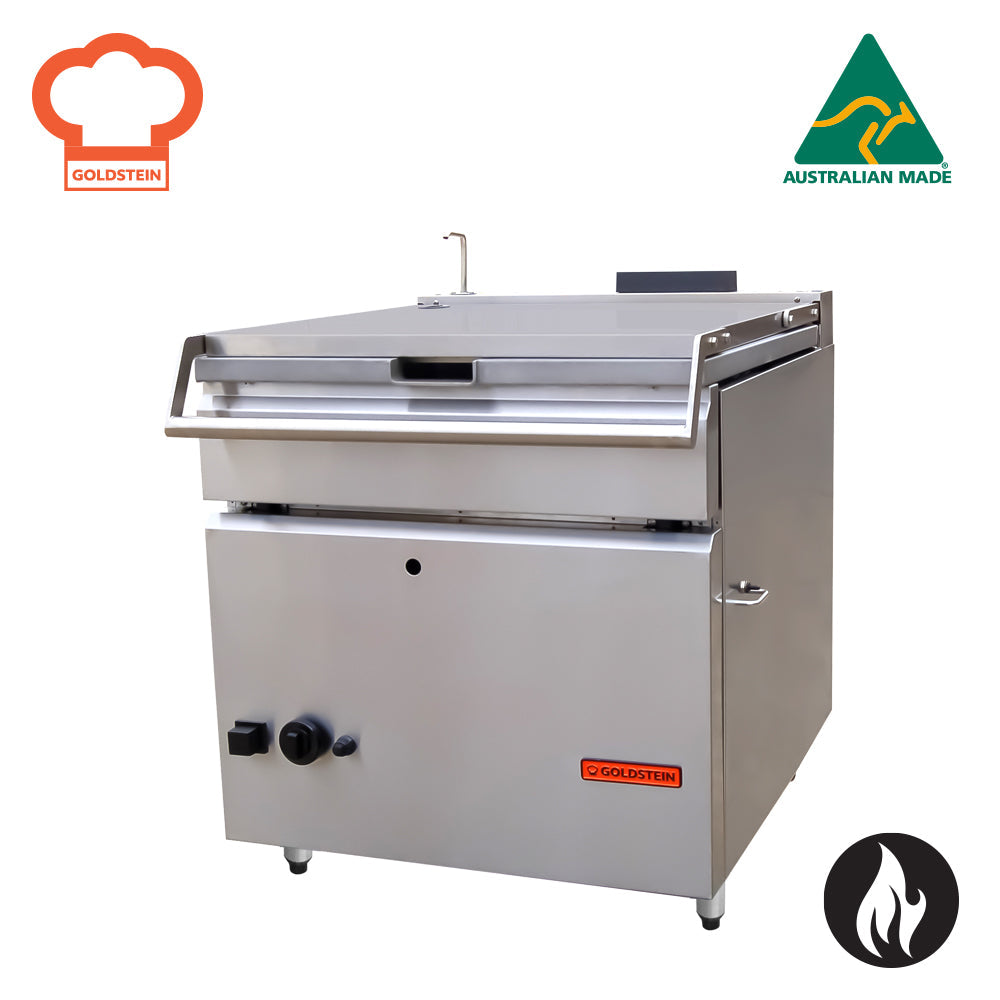

Goldstein BPG65 Tilting Gas Bratt Pan – 65L Australian Made

The Goldstein BPG65 is a 65-litre tilting gas bratt pan designed and manufactured in Australia for demanding commercial kitchen environments. Built around five powerful burners set into the base of the pan and a 10mm thick Duplex seamless stainless steel base, it delivers outstanding heat retention and even heat distribution across the entire cooking surface, making it highly efficient for high-volume cooking operations.

The BPG65 features a heavy-duty electronic tilt mechanism and precise thermostatic temperature control across a 50°C to 300°C range, giving kitchen teams consistent, repeatable results across a wide variety of cooking tasks. Its ergonomic counterbalanced double-skin lid, front-serviceable components, rounded pan interior, pouring spout, and integrated water fill tap all contribute to a practical, user-friendly design that minimises downtime and simplifies daily cleaning.

Key Benefits

• The 10mm thick Duplex seamless stainless steel base retains heat effectively and distributes it evenly, reducing hot spots and improving cooking consistency across large batches.
• Heavy-duty electronic tilt mechanism allows safe, controlled pan emptying with minimal manual effort, reducing strain on kitchen staff during service.
• Thermostatic control across 50°C to 300°C enables precise temperature management for a broad range of cooking methods, from gentle simmering to high-heat searing.
• Rounded interior corners and no internal edges make the pan faster and easier to clean between uses, supporting high-turnover kitchen schedules.
• All serviceable components are accessible from the front, reducing the need to move or disassemble the unit during maintenance, minimising downtime.
• The integrated water fill tap with a quarter-turn valve and fixed spout on top allows quick, safe filling without the need for external equipment.
• Battery-operated spark ignition with a safety gas cut-off valve and pilot flame failure device provides reliable, safe start-up and ongoing operation.
• Adjustable legs (140–170mm range) allow the unit to be levelled on uneven kitchen floors and set to a comfortable working height.
• Australian-made construction with a 2-year parts and labour warranty provides confidence in long-term performance and local after-sales support.

Key Features

• 65-litre nominal capacity stainless steel pan
• Five powerful burners located in the base of the pan for even, high-performance heating
• 10mm thick Duplex seamless stainless steel base for superior heat retention, even heat distribution and ease of cleaning
• Gas input rating: 78 MJ (Natural Gas and LPG compatible)
• 3/4" BSP Male gas connection
• Thermostatic temperature control: 50°C to 300°C
• Heavy-duty electronic tilt mechanism (manual tilt optional)
• Battery-operated spark ignition
• Safety gas cut-off valve with pilot flame failure protection
• Simple high-to-low adjustable flame control
• Ergonomically designed counterbalanced, screwless double-skin lid with heavy-duty lifting mechanism and rear drip zone
• Pan interior features rounded corners and no edges for easier cleaning and food release
• Wide opening design for straightforward unloading and access during cleaning
• Pouring spout for controlled pan emptying
• Quarter-turn tap and fixed spout on top for convenient water filling
• Water connection: 1/2" quick connect water inlet
• Electrical connection: 10A / 230V plug (for electronic tilt and ignition)
• Smooth stainless steel exterior finish
• Heavy-duty fully welded stainless steel frame for rigidity and long-term durability
• All components easily serviceable from the front
• Adjustable legs: 140–170mm height range
• Tank internal dimensions (W x D x H): 690 x 670 x 190mm
• Overall dimensions (W x D x H): 795 x 905 x 960mm
• Freestanding installation, mounting type freestanding
• Weight: 159kg
• Australian made
• 2-year parts and labour warranty

Specifications

• Width (mm): 795
• Depth (mm): 905
• Height (mm): 960
• Weight (kg): 200
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4″ BSP Male
• Ignition Type: Piezo with Flame Failure
• Shipping Weight: 159
• Packed Width (mm): 1100.0
• Packed Height (mm): 1190.0
• Packed Depth (mm): 1200.0
• Shipping Cubic: 1.570800000m3
• Capacity (Litres): 65 L
• Power / Gas Input: 78 MJ
• Power Rating: 80 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 80
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 50°C - 300°C
• Installation Type: Freestanding
• Control Type: Manual Tilt
• Mounting Type: Freestanding
• Fuel Type: Gas
