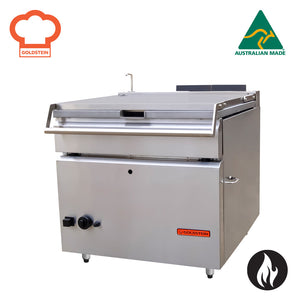

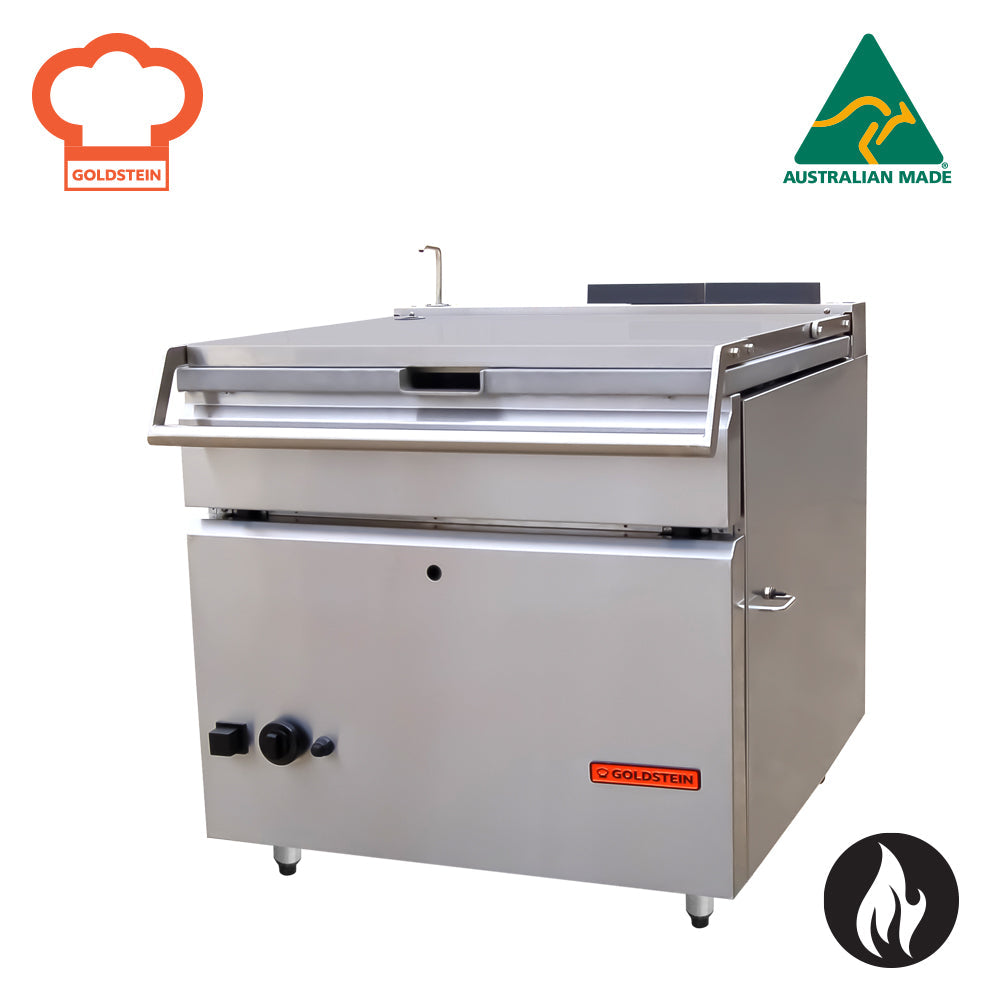

Goldstein BPG85 Tilting Gas Bratt Pan – 85L, Australian Made

The Goldstein BPG85 is an 85-litre tilting gas bratt pan designed and manufactured in Australia for demanding commercial kitchen environments. Powered by a 100 MJ/h gas input and controllable across a 50–300°C range, it combines a seamless Duplex stainless steel base that is 10 mm thick with multiple powerful burners integrated into the pan floor, delivering exceptional heat retention and uniform cooking results across the entire pan surface.

Built around a heavy-duty fully welded stainless steel frame, the BPG85 features an ergonomically counterbalanced, screwless two-layer insulated lid fitted with a robust raising mechanism and a rear-positioned drip zone, a heavy-duty electronic tilt mechanism for effortless unloading, and a pouring spout for safe, controlled liquid transfer. Every serviceable component is accessible from the front, minimising downtime and simplifying routine maintenance in busy kitchens.

Key Benefits

• The seamless Duplex stainless steel pan base, measuring 10 mm in thickness, retains and distributes heat evenly, reducing hot spots and improving cook consistency across large batches.
• A 50–300°C thermostatic range with simple high-to-low flame control gives chefs precise temperature management for everything from gentle simmering to high-heat searing.
• The heavy-duty electronic tilt mechanism allows safe, effort-free unloading of large volumes, reducing strain and speeding up service turnaround.
• A pouring spout combined with a quarter-turn tap and fixed spout on top enables controlled draining of liquids without manual handling of a full 85-litre pan.
• The pan interior features rounded corners and no sharp edges, making cleaning faster and more thorough while eliminating food trap points.
• The wide pan opening facilitates easy loading of bulk ingredients and straightforward cleaning access at the end of service.
• All serviceable components are reachable from the front, so maintenance and repairs can be carried out without moving the unit or accessing the rear.
• Adjustable legs spanning a 140–170 mm height range allow the unit to be levelled on uneven floors and set to a comfortable working height for kitchen staff.
• Australian-made construction, backed by a 2-year parts and labour warranty, provides long-term reliability and local support for commercial operators.

Key Features

• 85-litre nominal capacity stainless steel pan
• Seamless Duplex stainless steel pan base at 10 mm thickness for superior heat retention and even heat distribution
• Powerful burners mounted within the floor of the pan
• Simple high-to-low flame adjustable control
• 50–300°C thermostatic temperature control
• 100 MJ/h gas input rating; compatible with Natural Gas and LPG
• 3/4" BSP Male gas connection
• Battery-operated spark ignition with safety gas cut-off valve and pilot flame failure protection
• Heavy-duty electronic tilt mechanism for safe, controlled unloading
• Ergonomically counterbalanced, screwless two-layer insulated lid featuring a robust raising mechanism and a rear-positioned drip zone
• Pouring spout for controlled liquid transfer
• Quarter-turn tap and fixed spout on top
• Water inlet: 1/2" quick-connect water connection
• Electrical connection: 10 AMP / 230 V plug
• Pan interior with rounded corners and no sharp edges for easy cleaning and thorough hygienic maintenance
• Wide pan opening for bulk ingredient loading and easy access during cleaning
• Smooth stainless steel exterior throughout
• Heavy-duty fully welded stainless steel frame for rigidity and long-term durability
• All components easily serviceable from the front
• Adjustable legs: 140–170 mm height range
• Freestanding, freestanding-mounted installation
• Tank dimensions (W x D x H): 895 x 670 x 190 mm
• Overall dimensions (W x D x H): 995 x 905 x 960 mm
• Net weight: 180 kg
• Manufactured in Australia
• 2-year parts and labour warranty

Specifications

• Width (mm): 995
• Depth (mm): 905
• Height (mm): 960
• Weight (kg): 180
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4″ BSP Male
• Ignition Type: Piezo with Flame Failure
• Shipping Weight: 200
• Packed Width (mm): 1300.0
• Packed Height (mm): 1200.0
• Packed Depth (mm): 1200.0
• Shipping Cubic: 1.872000000m3
• Capacity (Litres): 85 L
• Power / Gas Input: 100 MJ
• Power Rating: 100 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 100
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 50°C - 300°C
• Installation Type: Freestanding
• Control Type: Manual Tilt
• Mounting Type: Freestanding
• Fuel Type: Gas
