Overview

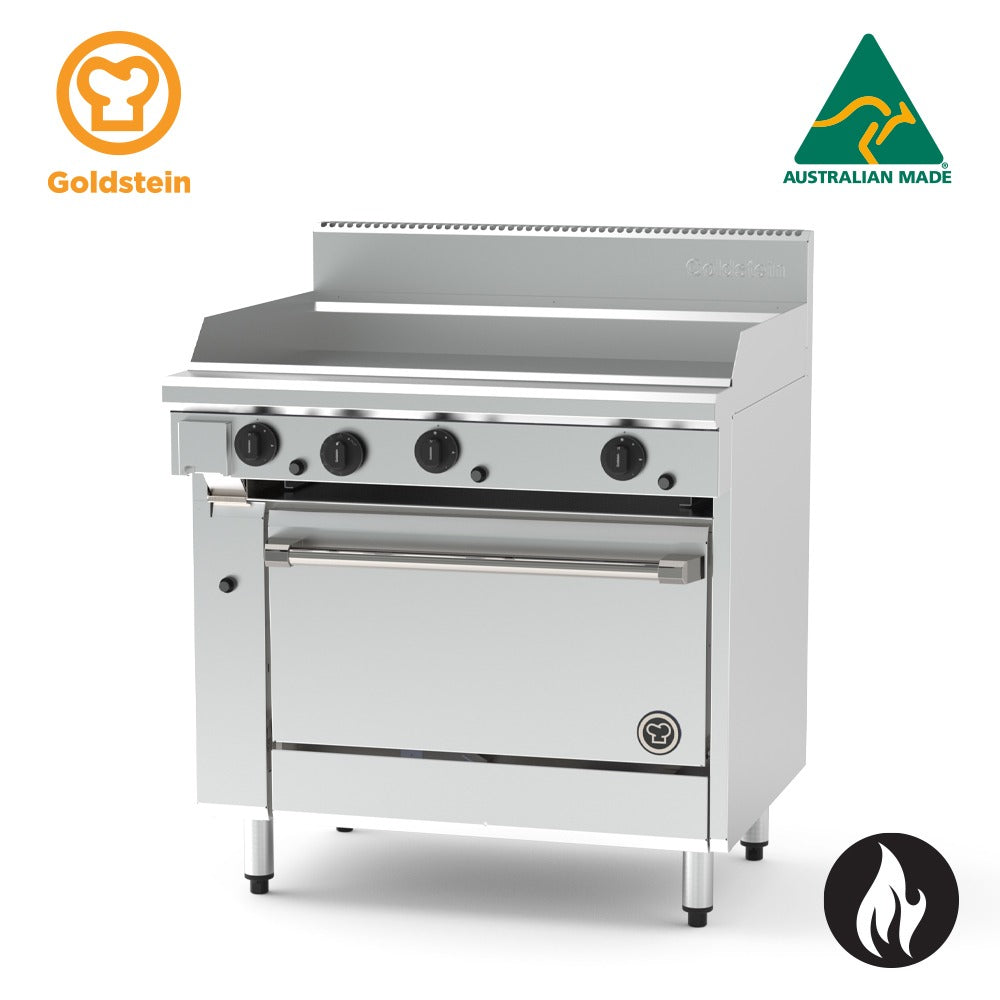

Goldstein PF36G28-X 800 X-Series 914mm Gas Griddle Range with 700mm Gas Static Oven

The Goldstein PF36G28-X is a heavy-duty, Australian-made commercial range from the 800 X-Series, featuring a 914mm smooth mild steel griddle top paired with a 700mm gas static oven. Built around a fully welded stainless steel body, it is engineered for the rigour of high-volume professional kitchens, combining robust construction with practical, modular flexibility across cooktop configurations.

The unit accepts natural gas or LPG and offers a broad range of oven upgrade options including gas fan-forced, electric fan-forced, and convection variants, all in gastronorm-compatible sizes. With piezo ignition, constant pilot flame technology, vitreous enamel oven lining, and adjustable legs, the PF36G28-X delivers consistent cooking performance alongside straightforward day-to-day servicing and cleaning.

Key Benefits

• Consistent griddle heat across the full 914mm surface thanks to 20 MJ burners for every 305mm section and a 20mm thick mild steel plate that retains and distributes heat evenly.
• Reliable oven temperatures between 100°C and 280°C with thermostatic control and full insulation in the oven cavity and door, reducing hot spots and improving bake and roast results.
• Constant pilot flame with flame-failure protection on both open burners and the oven burner maximises energy efficiency and provides an important safety safeguard during busy service.
• Modular cooktop design accommodates burner, griddle, and chargrill combinations in 305mm and 610mm increments, allowing the range to be configured to suit specific menu requirements.
• GN 1/1 oven capacity with three-position racking and heavy-duty chrome wire rack supports allows flexible loading of full gastronorm trays for high-output baking, roasting, or holding.
• Adjustable legs spanning 140–170mm make levelling on uneven kitchen floors straightforward, while the freestanding footprint suits a range of kitchen layouts.
• Stainless steel fascia and sides combined with spill zones and removable drip trays reduce cleaning time between services.
• Multiple oven upgrade paths are available under the same platform, including gas fan-forced (PF36G28FF-X), electric fan-forced (PF36G28EFF-X), gas convection (PFC36G28-X), electric convection (PFC36G28E-X), and electric static (PF36G28E-X) models.
• Made in Australia with a heavy-duty welded stainless steel body, supporting long service life and local parts availability.

Key Features

• Heavy-duty fully welded stainless steel body construction for rigidity and long-term durability.
• Fully welded surrounds for the griddle and chargrill sections.
• 914 x 520 x 20mm smooth mild steel griddle plate positioned on the left-hand side of the cooktop.
• 20mm thick mild steel griddle plate for superior heat retention and even cooking surface temperature.
• 20 MJ griddle burners per 305mm griddle section.
• Piezo ignition on griddle burners.
• Removable high-performance open cooktop burners rated at 33 MJ each.
• 40% of flame ports located in the centre cross of each burner for even heat spread.
• Cast iron star trivets on open burner sections.
• Constant pilot flame on open burners to maximise operating and energy efficiency.
• Pilot flame-failure safety device on open burners and oven burner.
• 700mm gas static oven with 100°C to 280°C thermostatic control.
• Piezo ignition on oven burner.
• Oven cavity and door fully insulated and lined with vitreous enamel for even heat distribution and easy cleaning.
• Oven internal dimensions: 700mm (W) x 560mm (D) x 355mm (H).
• GN 1/1 gastronorm-compatible oven capacity.
• Three-position oven racking with heavy-duty chrome wire rack supports designed for easy removal.
• Stainless steel fascia and sides throughout.
• Spill zone and removable drip trays for simplified cleaning.
• Large heat-resistant reinforced control knobs with clearly visible settings and high-to-low flame adjustment.
• Ergonomic door handle and angled corners for a clean, professional appearance.
• Adjustable legs with a range of 140–170mm for levelling on uneven floors.
• Accepts natural gas (88 MJ) or LPG (90 MJ) via 3/4 BSP gas connection.
• Freestanding installation type.
• Designed for ease of servicing.
• Made in Australia.
• Available oven upgrade options on the same platform: gas fan-forced (PF36G28FF-X), electric fan-forced (PF36G28EFF-X), gas convection (PFC36G28-X), electric convection (PFC36G28E-X), and electric static (PF36G28E-X).

Specifications

• Width (mm): 914
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 250
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4 BSP
• Ignition Type: Piezo with Flame Failure
• Shipping Weight: 240
• Packed Width (mm): 980.0
• Packed Height (mm): 1200.0
• Packed Depth (mm): 900.0
• Shipping Cubic: 1.058400000m3
• Power / Gas Input: 88/90 MJ
• Power Rating: 88 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 90
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 100°C - 280°C
• Installation Type: Freestanding
• Control Type: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Number of Burners: 6
