Overview

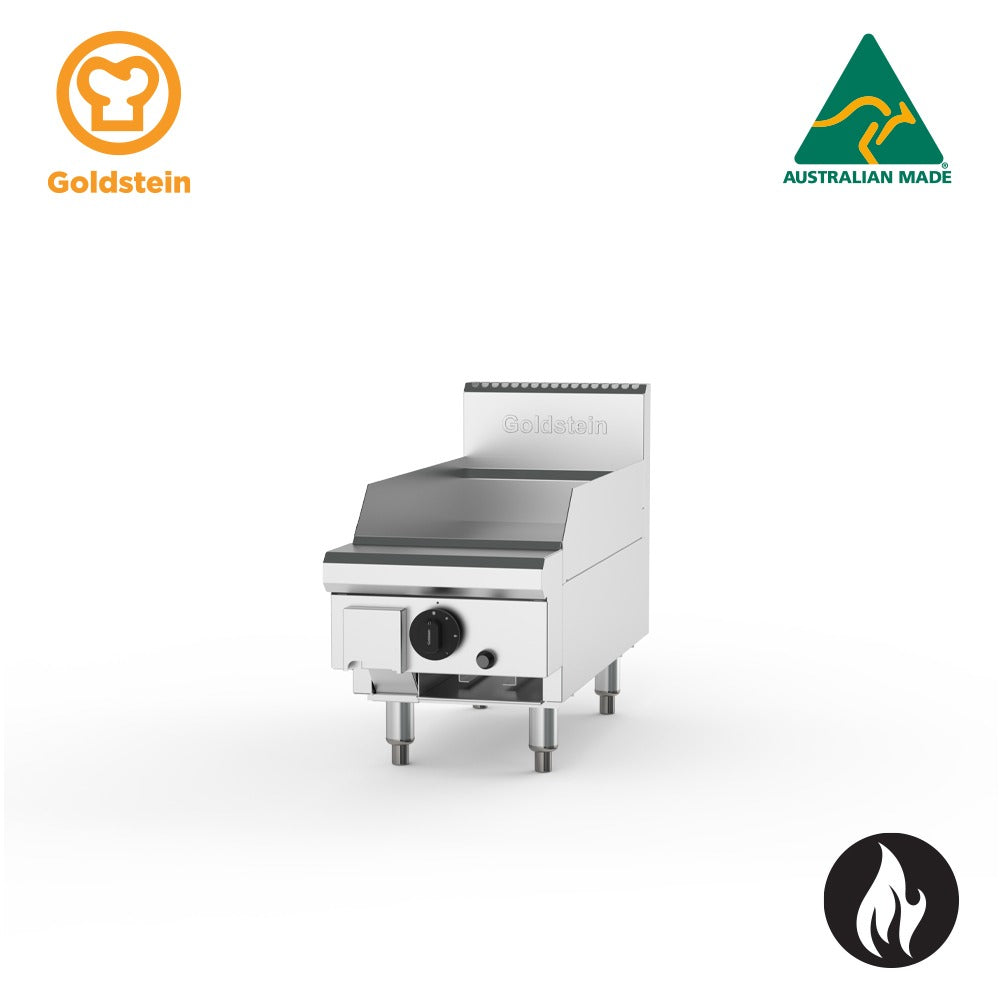

Goldstein GPGDB12-X 800 X-Series Gas Griddle Plate – 305mm Single Burner

The Goldstein GPGDB12-X is a 305mm single-section gas griddle plate from the 800 X-Series, manufactured in Australia to suit the demands of busy commercial kitchens. Built around a 20mm thick mild steel cooking surface with a smooth finish, it delivers outstanding heat retention and consistent cooking results across the full plate area, making it equally at home cooking breakfasts, burgers, pancakes and more.

The unit features a heavy-duty fully welded stainless steel body with stainless fascia and sides, providing long-lasting rigidity and corrosion resistance. A front grease trough with a generous chute and grease catcher keeps the workstation tidy and simplifies the cleaning process, while piezo ignition and a constant pilot flame with pilot failure safety ensure reliable, energy-efficient operation. The griddle is bench-mounted and available in natural gas or LPG configurations.

Key Benefits

• The 20mm thick mild steel plate retains heat effectively, reducing temperature recovery time between loads and supporting high-volume throughput.
• A constant pilot flame maximises energy efficiency and ensures the griddle is always ready to fire, while pilot flame failure protection on the burner adds an important safety layer.
• The front grease trough, large chute and grease catcher work together to channel away cooking fats quickly, keeping the cooking surface clean and reducing the risk of flare-ups.
• Stainless steel fascia, sides and drip trays are easy to wipe down, helping kitchen staff maintain hygiene standards during and after service.
• The large, heat-resistant reinforced control knob provides clear high-to-low flame settings at a glance, allowing precise temperature management without interrupting workflow.
• Adjustable legs (140–170mm) allow the unit to be levelled on uneven bench surfaces, ensuring stable, safe operation.
• Piezo ignition allows fast, reliable start-up without the need for a separate ignition source, saving time during the morning setup rush.
• Made in Australia with a fully welded stainless steel body, the GPGDB12-X is built to withstand the rigours of daily commercial use over an extended service life.
• Optional plate finishes (machined steel, chrome or ribbed) and a thermostatic control upgrade (120°C–280°C) let operators configure the griddle to suit specific menu requirements.

Key Features

• Heavy-duty fully welded stainless steel body for rigidity and long-term durability
• Fully welded surrounds for a robust, sealed construction
• 20mm thick smooth mild steel griddle plate for superior heat retention and even cooking
• Griddle plate dimensions: 305mm (W) x 520mm (D) x 20mm (H)
• Overall unit dimensions: 305mm (W) x 800mm (D) x 545mm (H)
• Output of 20 MJ per 305mm burner section
• Accepts natural gas or LPG; gas connection via 3/4 BSP fitting
• Piezo ignition for fast, tool-free start-up
• Constant pilot flame for maximised operating efficiency
• Pilot flame failure safety feature on all burners
• Front grease trough with generous chute and grease catcher for efficient fat management
• Stainless steel fascia and sides with drip trays for straightforward cleaning
• Large, heat-resistant reinforced control knob with clearly visible high-to-low flame settings
• Adjustable legs ranging from 140mm to 170mm for levelling on bench surfaces
• Countertop/benchtop installation as standard
• Manufactured in Australia
• Optional plate configurations: machined steel, chrome or ribbed surface
• Optional thermostatic control upgrade: 120°C–280°C temperature range
• Optional stainless steel stand with under-shelf available for additional storage
• Optional cupboard stand configuration also available

Specifications

• Width (mm): 305
• Depth (mm): 800
• Height (mm): 545
• Weight (kg): 40
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4 BSP
• Ignition Type: Piezo
• Burner Output (MJ/h): 20
• Shipping Weight: 90
• Packed Width (mm): 530.0
• Packed Height (mm): 870.0
• Packed Depth (mm): 900.0
• Shipping Cubic: 0.414990000m3
• Power / Gas Input: 20/20 MJ
• Power Rating: 20 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 20
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: N/A (Open flame)
• Installation Type: Countertop
• Control Type: Thermostat
• Mounting Type: Benchtop
• Fuel Type: Gas
• Number of Burners: 1
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 610 x 533
