Overview

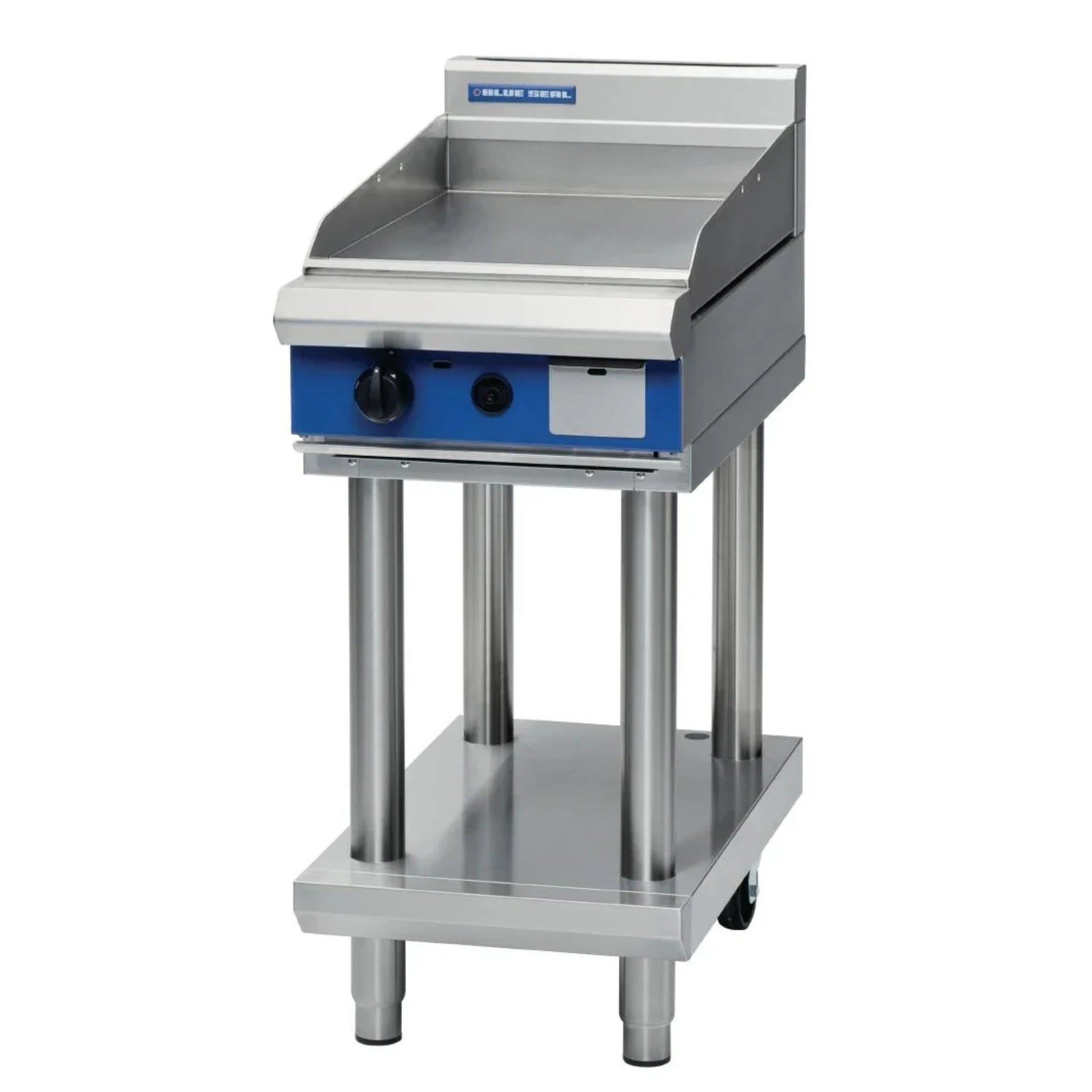

Blue Seal GP513-B Evolution Series 450mm Gas Griddle – Bench Model

The Blue Seal GP513-B is a heavy-duty 450mm bench-model gas griddle from the Evolution Series, built for high-volume commercial kitchens in cafés, restaurants, hotels, takeaway shops, and catering venues. Its 20mm thick smooth mild steel griddle plate delivers exceptional heat retention and even distribution, while a 40 MJ/hr thermostatic burner system maintains precise temperatures between 90°C and 300°C for consistent results across breakfast service, burgers, steaks, seafood, sandwiches, and more.

Constructed with 304 stainless steel and featuring solid, seamless weld construction, the GP513-B is engineered for durability, hygiene, and straightforward servicing. Full pilot and flame failure protection with push-button piezo ignition provide operator safety, while the compact bench-mounted footprint makes it equally suited to standalone use or integration into a modular Evolution Series cooking line. Available in Natural Gas or LPG, with optional ribbed or mirror chrome plate surfaces to suit different cooking applications.

Key Benefits

• Precise thermostat control from 90°C to 300°C allows operators to dial in consistent cooking temperatures during busy service periods, reducing the risk of over or undercooking.
• The 20mm thick griddle plate retains and distributes heat evenly across the full 442mm x 530mm cooking surface, supporting rapid heat recovery between consecutive loads.
• Full pilot and flame failure protection with push-button piezo ignition keeps service running safely and minimises downtime from relighting burners manually.
• Compact 450mm bench-model footprint maximises usable kitchen space and slots neatly into modular cooking lines or standalone bench configurations.
• Top weld sealed plates and a stainless steel grease drawer simplify cleaning, helping kitchen staff achieve fast turnaround between services.
• Adjustable feet and two additional rollers make positioning and levelling straightforward during installation or reconfiguration.
• Choice of smooth, ribbed, or optional mirror chrome plate surfaces gives operators flexibility to tailor the griddle to their specific menu requirements.
• Available in both Natural Gas and LPG, making the unit adaptable to different site gas supplies without requiring a separate product.

Key Features

• 450mm wide bench-model configuration; part of the Blue Seal Evolution Series modular cooking range
• 40 MJ/hr thermostatic burner system with 90–300°C temperature range
• 20mm thick mild steel griddle plate for superior heat retention and even distribution
• Cooking surface area: 442mm x 530mm
• Smooth machine-finished mild steel plate as standard; ribbed plate and mirror chrome plate (smooth or ribbed) available as options
• Solid, seamless top weld sealed plate construction
• Full pilot and flame failure protection with push-button piezo ignition
• 304 stainless steel body construction
• Stainless steel grease drawer for hygienic, easy grease collection and disposal
• 165mm splashback included
• Heavy-duty reinforced heat-resistant control knobs
• Adjustable feet plus two additional rollers for easy positioning and levelling
• R 3/4 (BSP) male gas connection; compatible with Natural Gas or LPG (specify at time of order)
• Designed for easy cleaning, installation, and servicing
• Two base unit models available
• Country of origin: New Zealand

Specifications

• Width (mm): 450
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 111
• Packed Width (mm): 870.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.286382000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 442mm x 530mm
• Number of Burners: 1
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
