Overview

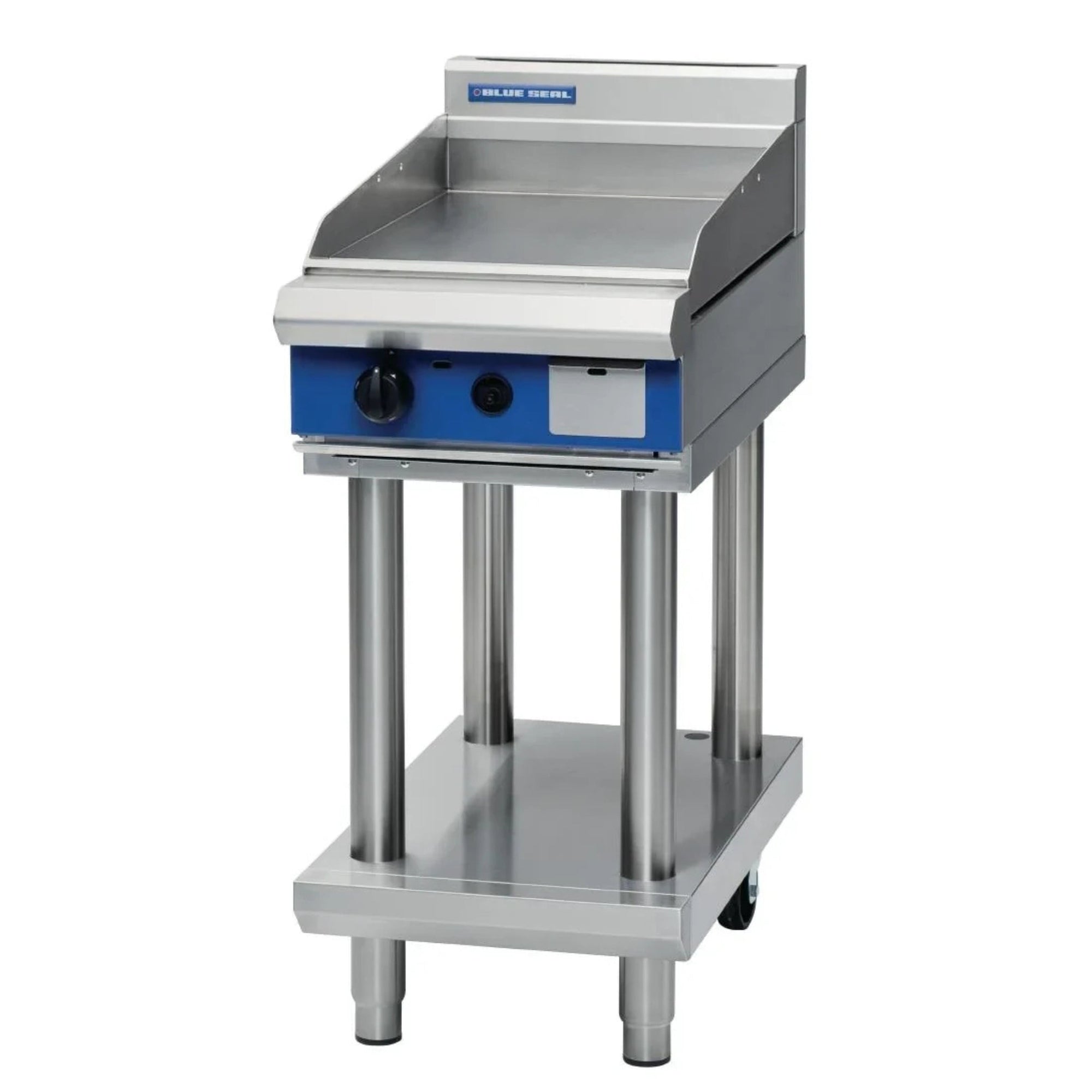

Blue Seal GP513-LS Evolution Series 450mm Gas Griddle on Leg Stand

The Blue Seal GP513-LS Evolution Series is a heavy-duty 450mm gas griddle mounted on a freestanding leg stand, designed for demanding commercial kitchen environments. Built in New Zealand from 304 stainless steel, it features solid, seamlessly welded construction with a 20mm thick mild steel griddle plate that delivers exceptional heat retention and uniform heat distribution across a 442mm x 530mm cooking surface.

A precise thermostatic burner system rated at 40 MJ/hr allows accurate temperature control from 90°C to 300°C, while full pilot and flame failure protection with push-button piezo ignition ensures safe, reliable operation. Available in smooth or ribbed machine-finished mild steel plate, with an optional mirror chrome surface, and compatible with both Natural Gas and LPG connections, the GP513-LS offers genuine versatility for a wide range of cooking applications.

Key Benefits

• Uniform heat across the entire 442 x 530mm cooking surface reduces hot spots and delivers consistent results for high-volume breakfast, burger and protein cookery.
• The 20mm thick griddle plate retains heat effectively during busy service periods, minimising temperature recovery time when cold food is added.
• Thermostat control from 90°C to 300°C allows precise temperature setting to suit delicate items through to high-heat searing on the same unit.
• Full pilot and flame failure protection with push-button piezo ignition improves operator safety and eliminates the need for external ignition tools.
• Smooth or ribbed plate options, plus an optional mirror chrome surface, allow the same base unit to be configured for different menu requirements.
• Top weld sealed plates and a stainless steel grease drawer make cleaning fast and thorough, supporting quick turnaround between service periods.
• Adjustable feet and two additional rollers simplify positioning and levelling on uneven floors, reducing installation time.
• Available in Natural Gas or LPG, with a standard R 3/4 BSP male gas connection, making integration into existing kitchen gas supplies straightforward.
• A suite-matching undershelf and 165mm splashback are included, keeping the surrounding workspace tidy and reducing cleaning effort.

Key Features

• 450mm wide gas griddle on freestanding leg stand
• 40 MJ/hr heavy-duty thermostatic burner system
• Thermostat temperature control range: 90°C to 300°C
• 20mm thick griddle plate for maximum heat retention and even distribution
• Cooking surface area: 442mm x 530mm
• Smooth machine-finished mild steel griddle plate as standard; ribbed plate available
• Optional mirror chrome surface (smooth or ribbed) to minimise heat loss
• Solid, seamlessly welded plate construction with top weld sealed plates
• Full pilot and flame failure protection with push-button piezo ignition
• Stainless steel grease drawer for easy grease collection and cleaning
• Heavy-duty reinforced control knobs
• Adjustable feet with two additional rollers for easy positioning
• 165mm splashback included
• Suite-matching undershelf included
• Compatible with Natural Gas and LPG (specify at time of ordering)
• Gas connection: R 3/4 BSP male
• Constructed from 304 stainless steel
• Freestanding installation
• Country of origin: New Zealand
• 2 models of base unit available

Specifications

• Width (mm): 450
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 130
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.540466000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 442mm x 530mm
• Number of Burners: 1
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
